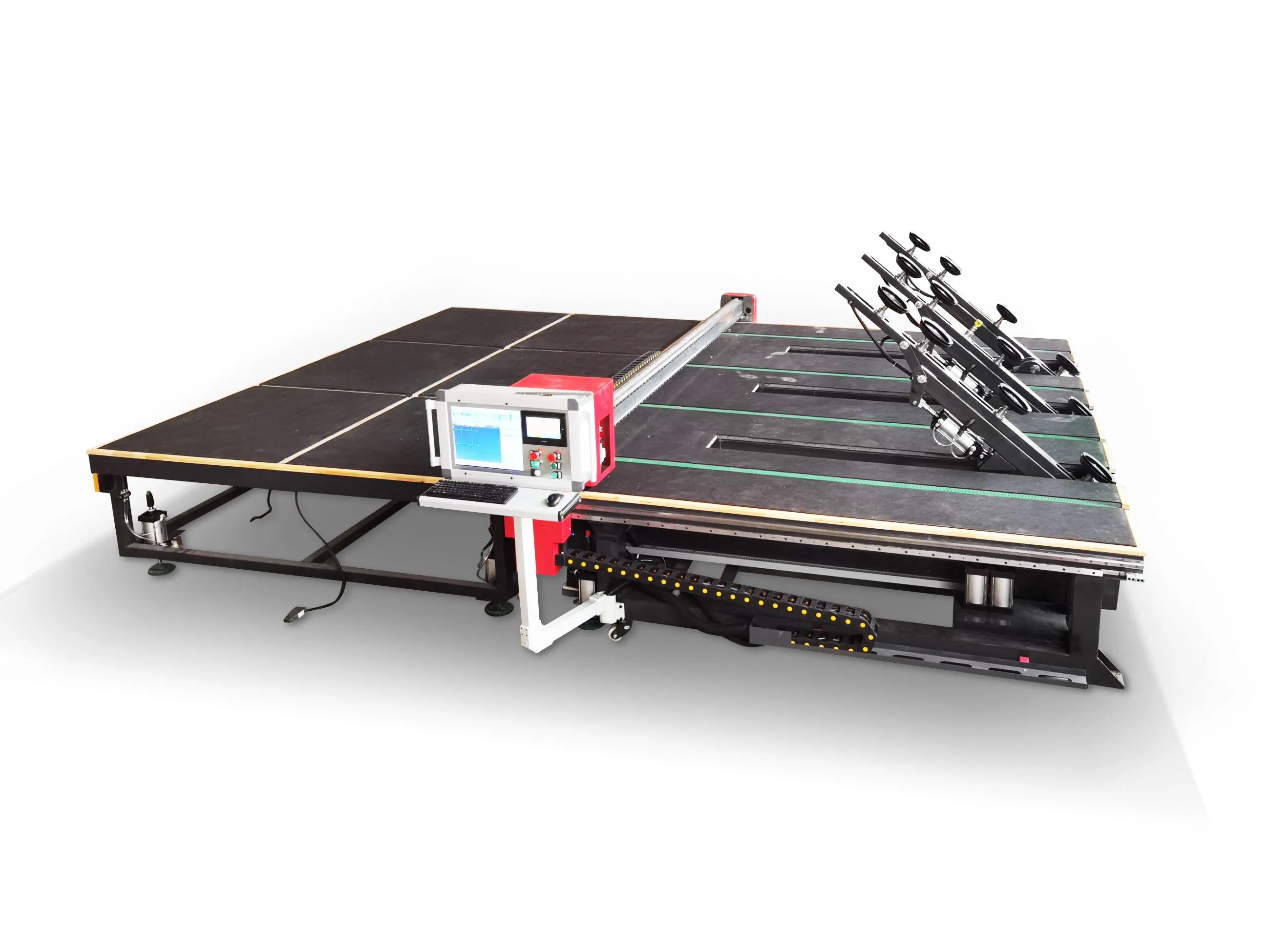

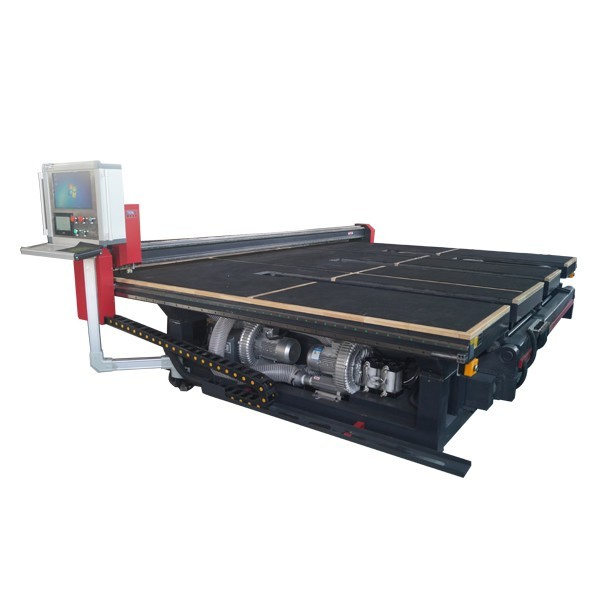

Flat Float Glass Processing CNC Automatic Glass Cutting Equipment with Customized Model

Customization:	Available
Certification:	CE, ISO, FDA, UR
Platform Board:	Imported Material Waterproof & Fire Rate

Basic Information

Model NO.

HHTY-3826

Toothed Rack

Crescent Grinding Helical Racks

Table Surface

Air-Floating Felt Surface

Positing System

Japanese Panasonic Automatic Patrol

Max Glass Size

2440*3660mm

Glass Thickness

3-19mm

Cutting Accuracy

Parallelism: ≤±0.15mm/M

Warranty

One Year Warranty

Product Description

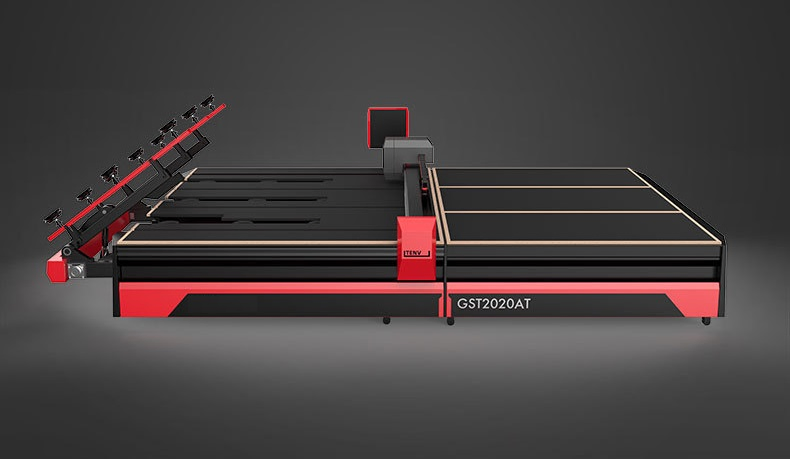

This advanced equipment integrates glass loading, air flotation breaking, straight line cutting, and special-shaped cutting into a single unit. Designed for efficiency, it occupies a minimal footprint and features a simple, safe operation that significantly reduces labor requirements.

3-in-1 loading, cutting, and air-floating functions
Supports straight-line and irregular shape cutting
Remote control for easy movement within the workshop
American GALIL cutting system with optimization software
INOVANCE servo and dual-motor drive

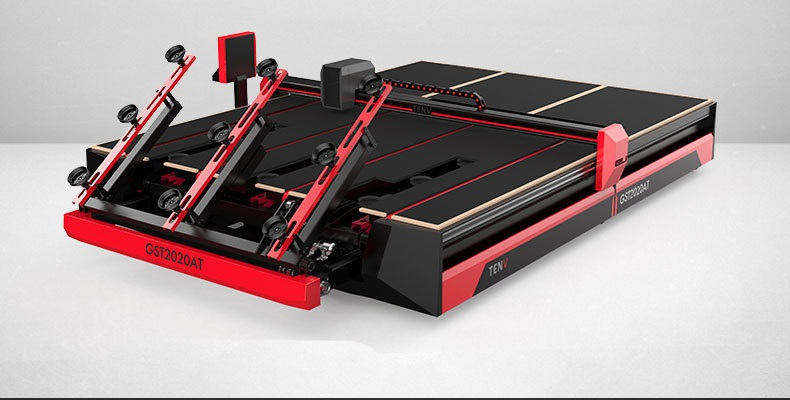

3 loading arms with 4 suction cups each
Automatic positioning and optimization operations

Technical Parameters

Component	Specification	Component	Specification
Platform Board	Imported Waterproof & Fire Rate (≤±0.020mm)	Optimization System	GUIYOU brand
Toothed Rack	Crescent grinding helical racks	Servo System	INOVANCE
Computer	Industrial computer	Cutting Head	Imported Germany cutter
Max Glass Size	2440*3660mm	Glass Thickness	3-19mm
Loading Speed	30-50 seconds	Loading Depth	450mm

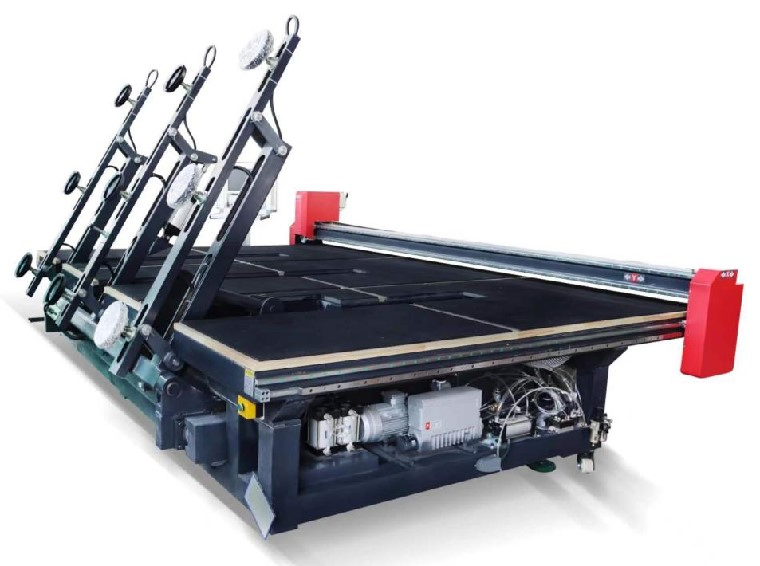

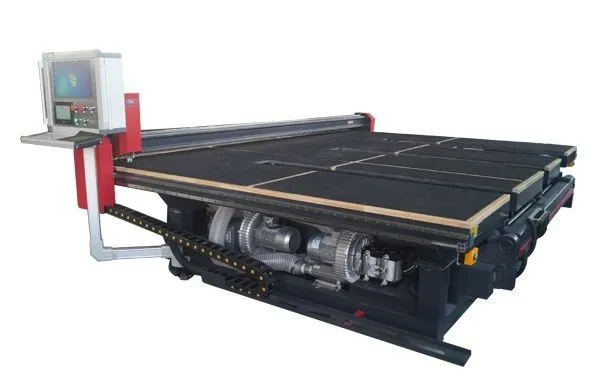

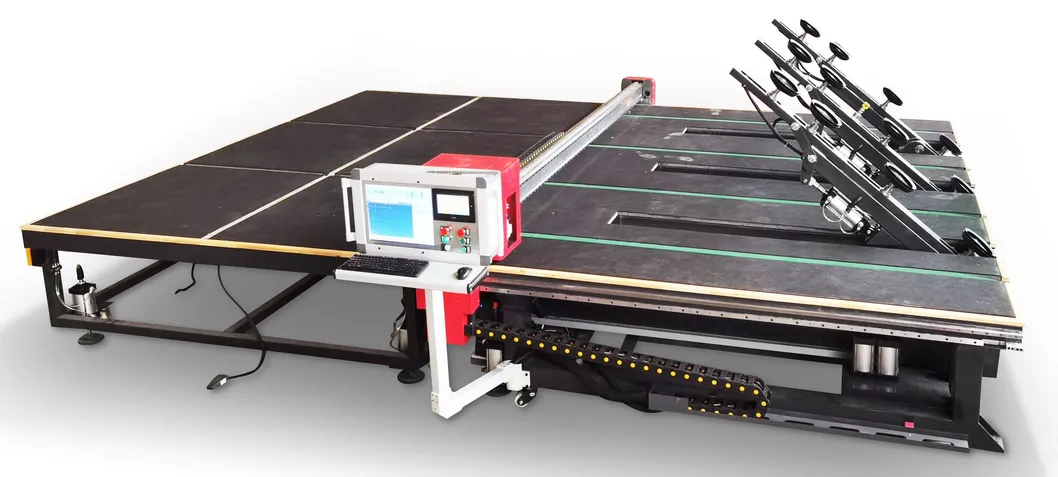

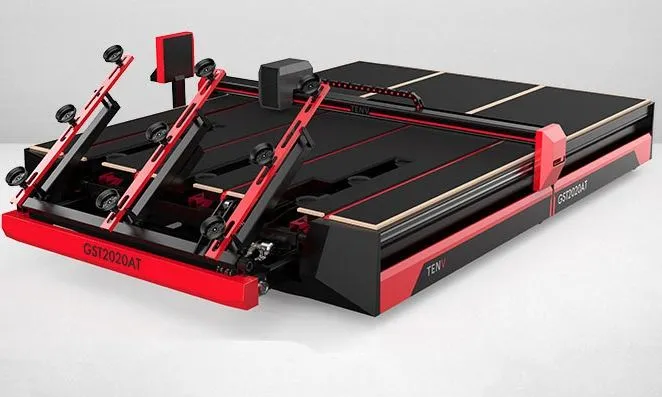

Detailed Photos

After Sales Service

Free installation, commissioning, and pre-job technical training
One year free maintenance and lifelong technical support
Customer service response time within 24 hours
Cutting software lifetime free upgrades
Regular equipment performance testing for stable operation

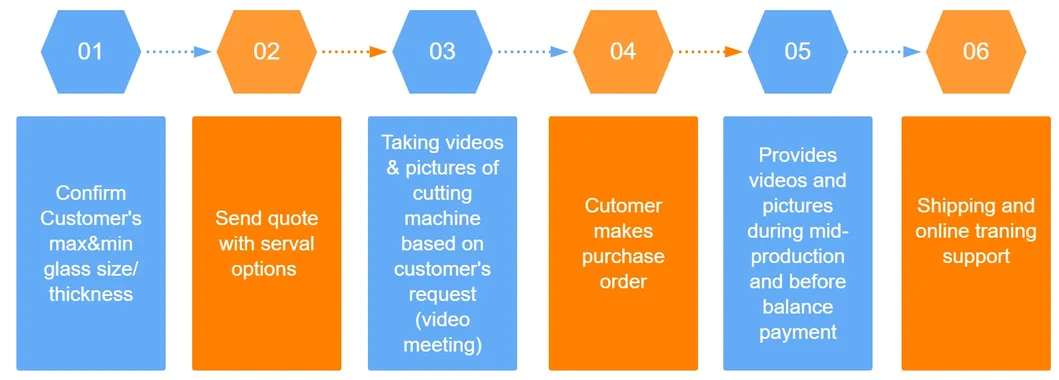

Purchasing Process

Company Profile

As a leading provider of high-quality flat glass processing machinery, we focus on innovative and reliable equipment for fabricating, handling, and processing flat glass. Our equipment is characterized by long-lasting durability, high reliability, and advanced features.

We supply an extensive range of machinery for the glass industry, including integrated units for insulated glass, window and door fabrication, and façade manufacture.

Frequently Asked Questions

What glass thickness can this machine process?

The machine is capable of cutting glass with a thickness ranging from 3mm to 19mm.

What is the maximum glass size supported?

The maximum glass size for this model is 2440*3660mm.

Does the machine support irregular shape cutting?

Yes, it supports both straight-line cutting and irregular (special-shaped) cutting using advanced optimization software.

How accurate is the cutting process?

The machine offers high precision with a parallelism accuracy of ≤±0.15mm/M.

What kind of after-sales support do you provide?

We provide a one-year warranty, free installation and training, and lifetime technical support with a response time of less than 24 hours.

What is the loading speed of the machine?

The automatic loading system can process pieces in approximately 30-50 seconds.
