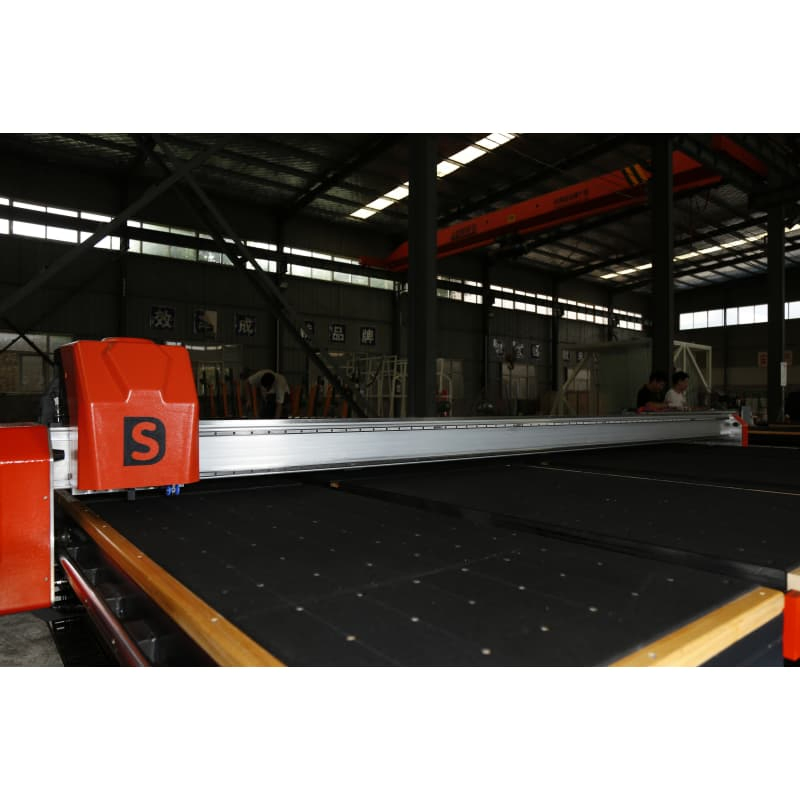

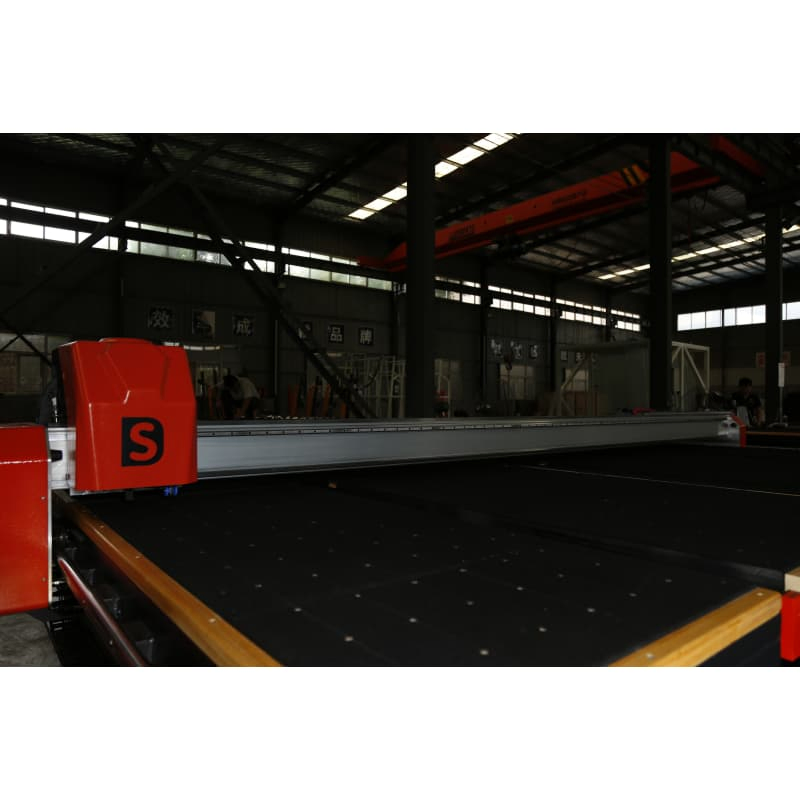

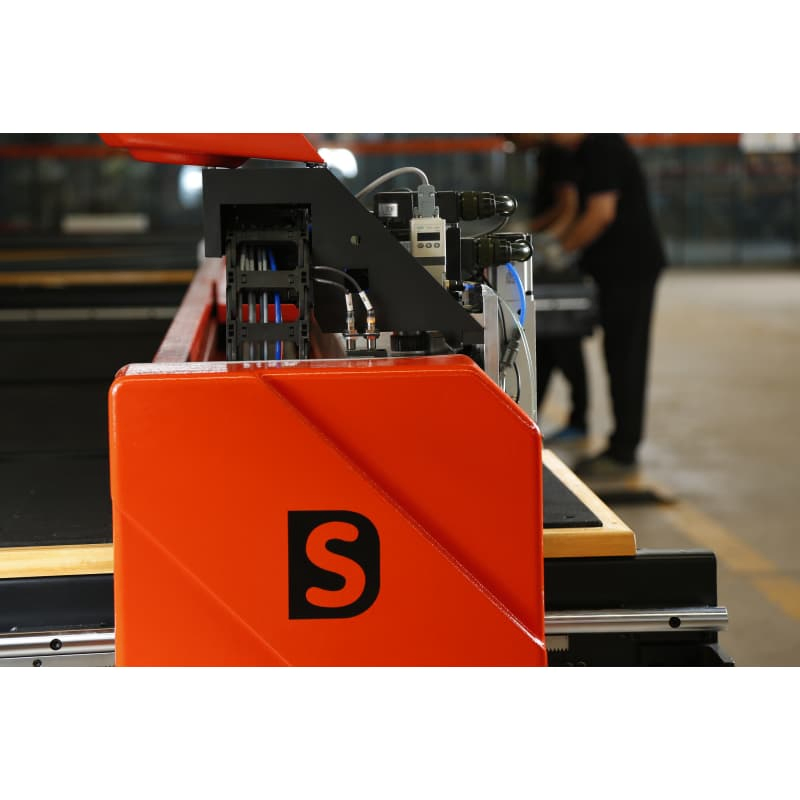

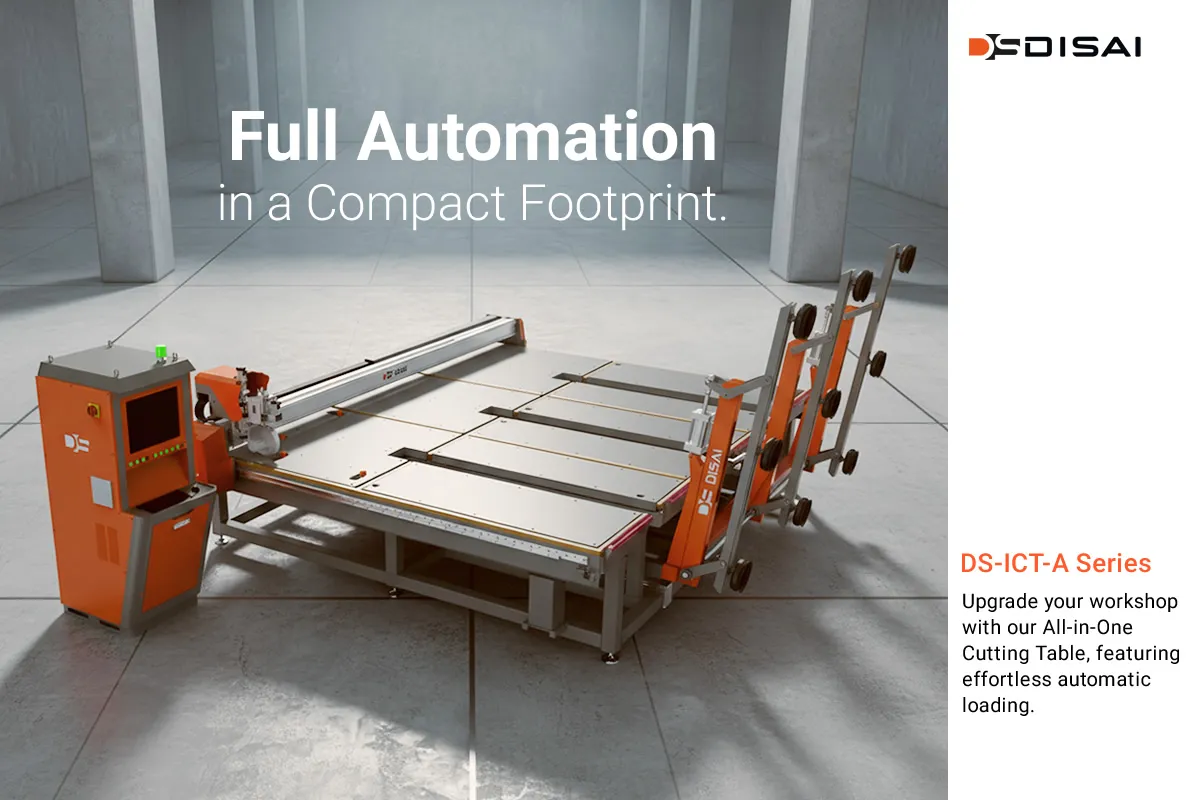

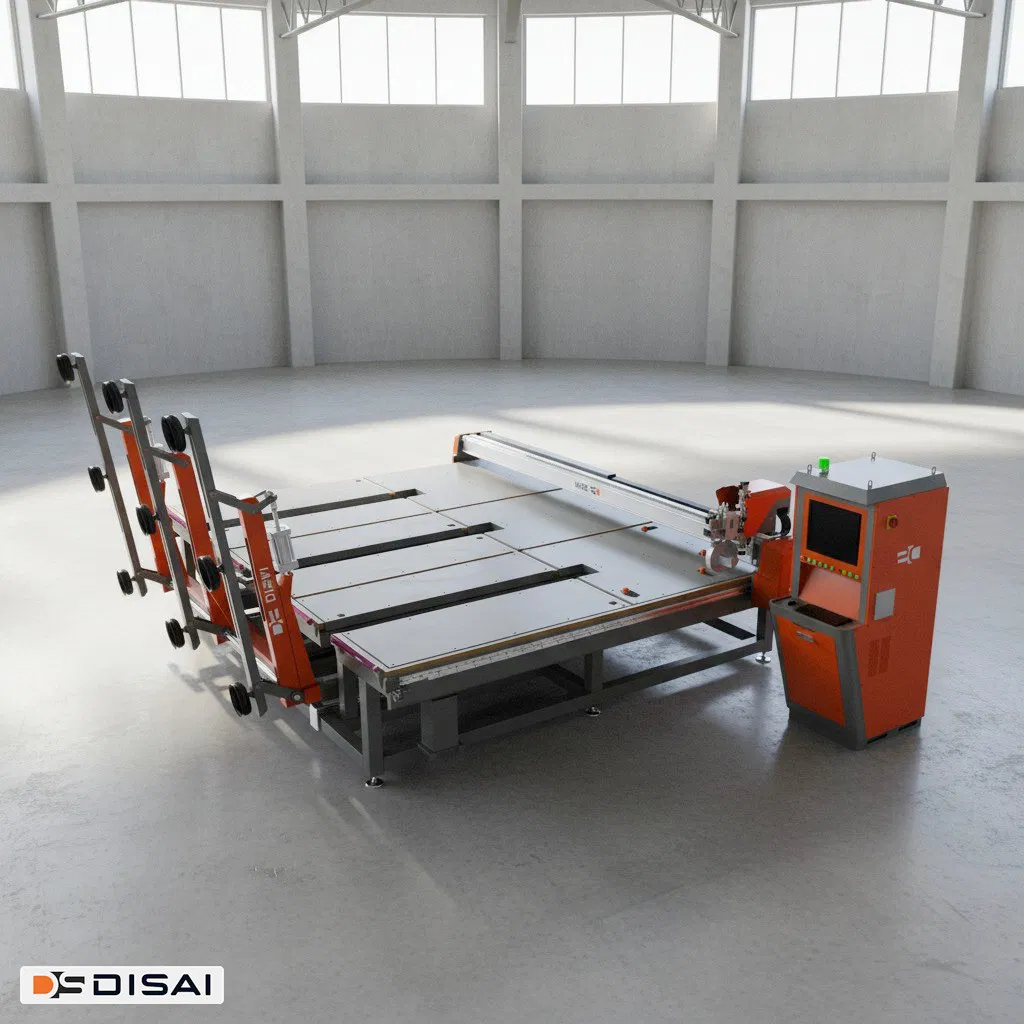

All-in-One Integrated Glass Cutting Table - Model DS-ICT2621-A
The DS-ICT2621-A is an all-in-one integrated glass cutting table that combines automatic loading and high-precision cutting into one compact machine. It is the perfect space-saving solution for workshops looking to increase automation and efficiency.
| Models | Max Cutting Size | Glass Thickness | Max Speed | Precision | Loading Speed |
|---|---|---|---|---|---|
| DS-ICT2621-A | 2600×2100mm | 3-19mm | 160m/min | ±0.20mm | 40~50s |
| DS-ICT3826-A | 3800×2650mm | 3-19mm | 160m/min | ±0.20mm | 40~50s |
World-Class Components
Delta Tau (USA) controllers, Panasonic (Japan) motors, and Siemens (Germany) PLC.

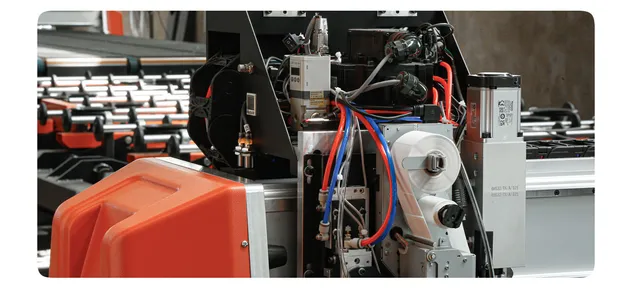

Advanced Direct-Drive
Dual-drive linear rail replaces traditional belt systems for zero transmission error.

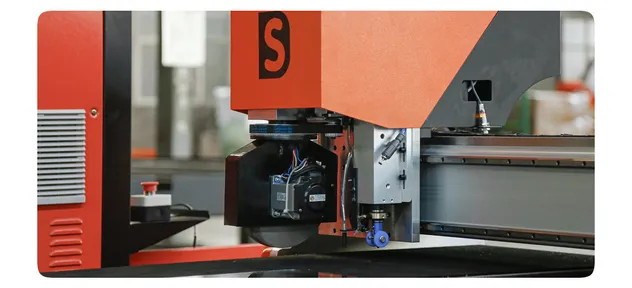

Bidirectional Cutting
Proprietary technology minimizes travel distance to maximize output.
We integrate premium brands including Delta tau (PMAC) from USA, Panasonic and OMRON from Japan, and Siemens and IGUS from Germany to ensure industrial-grade reliability.
| Part Name | Brand | Origin |
|---|---|---|
| Motion Controller | Delta tau (PMAC) | USA |
| Servo Motor/Drive | Panasonic | Japan |
| PLC/Frequency Converter | Siemens | Germany |
| Drag Chain/Cable | IGUS | Germany |
| Linear Guide Rail | HIWIN/SHAC | Taiwan |

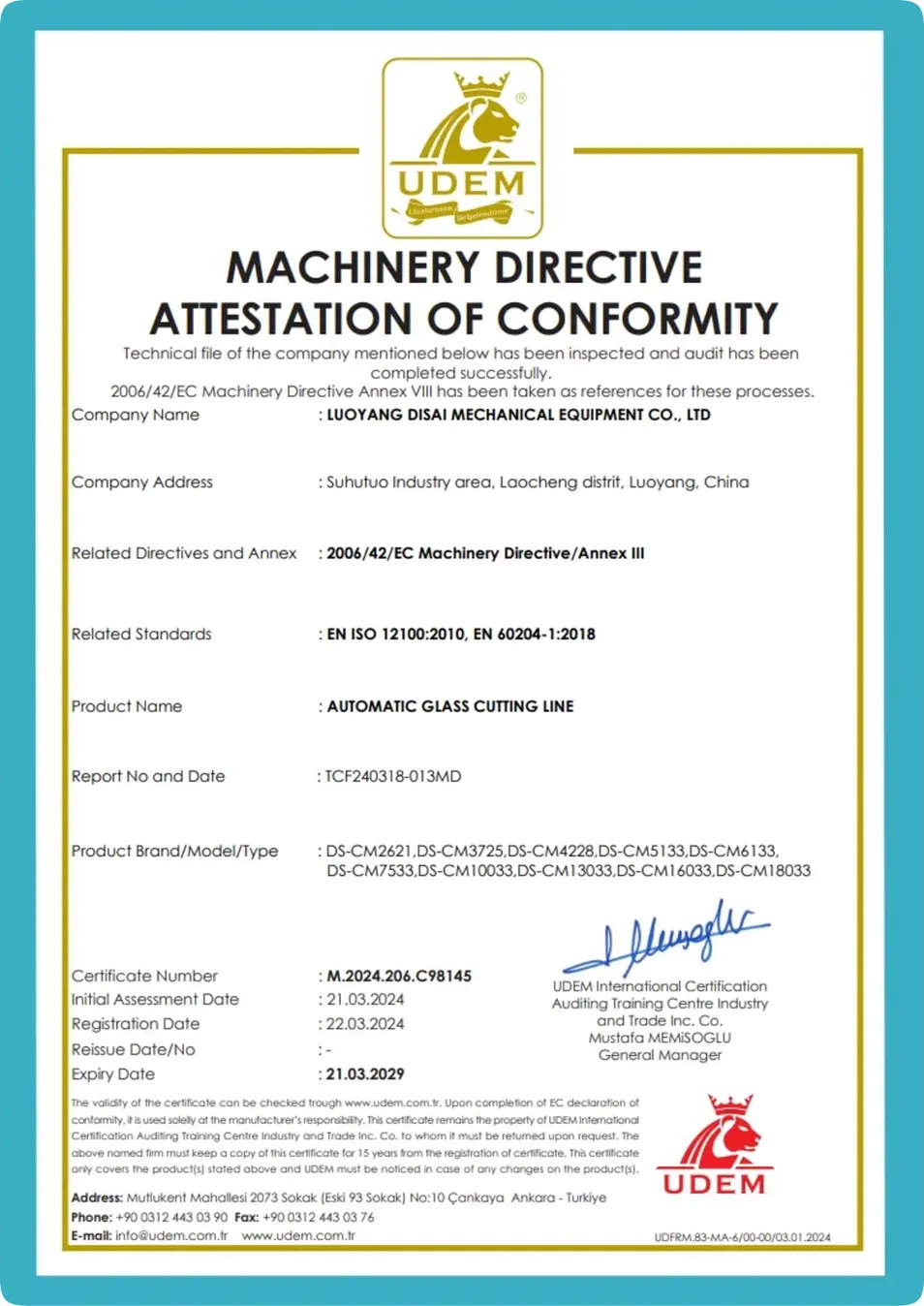

Our equipment strictly complies with EN ISO 12100 and EN 60204-1 standards, having obtained the CE Machinery Directive Attestation of Conformity. This ensures:
Architectural & Facade
Photovoltaic & Technical
Automotive Glazing
Interior & Furniture
Our machines cut a wide variety of glass, including float, Low-E, coated, and mirrored glass, with thicknesses ranging from 2mm to 25mm.
Standard models handle up to 4200mm x 2800mm. Custom solutions are available for immense sheets up to 18000mm x 3700mm.
We guarantee a cutting accuracy of ±0.15 mm, ensuring flawless edges for downstream processes like tempering or laminating.
No. It features an intuitive touchscreen interface and supports direct CAD/CAM file imports with automatic nesting software.
Standard setup is typically completed in 2-3 days, followed by 1-2 days of operator training by our expert engineers.
Most customers achieve full ROI within 6-9 months due to increased output, reduced labor, and minimized material waste.
