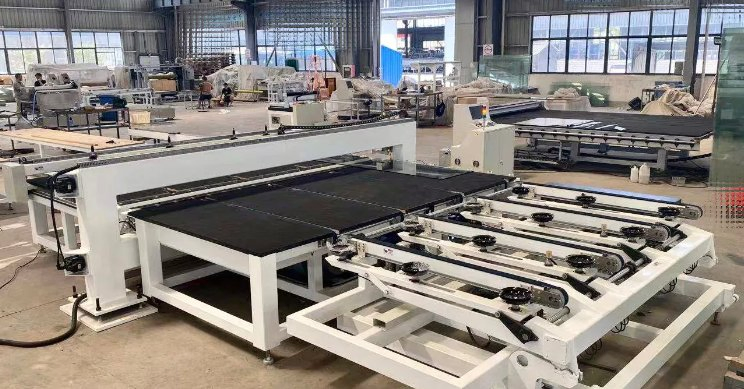

Easy to Operate CNC Multi-Function Laminated Glass Cutting Table

1 / 5

Easy to Operate CNC Multi-Function Laminated Glass Cutting Table

Customization:	Available
Certification:	CE, ISO, UR
Cutting Method:	Diamond Wheel Cutting, Oil Cutter Cutting, Heating

Send Inquiry

Product Description

Basic Info & Overview

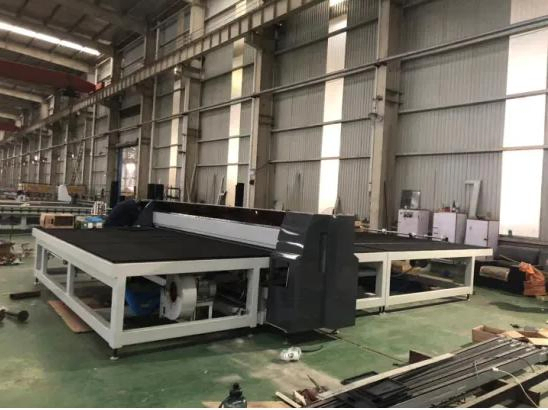

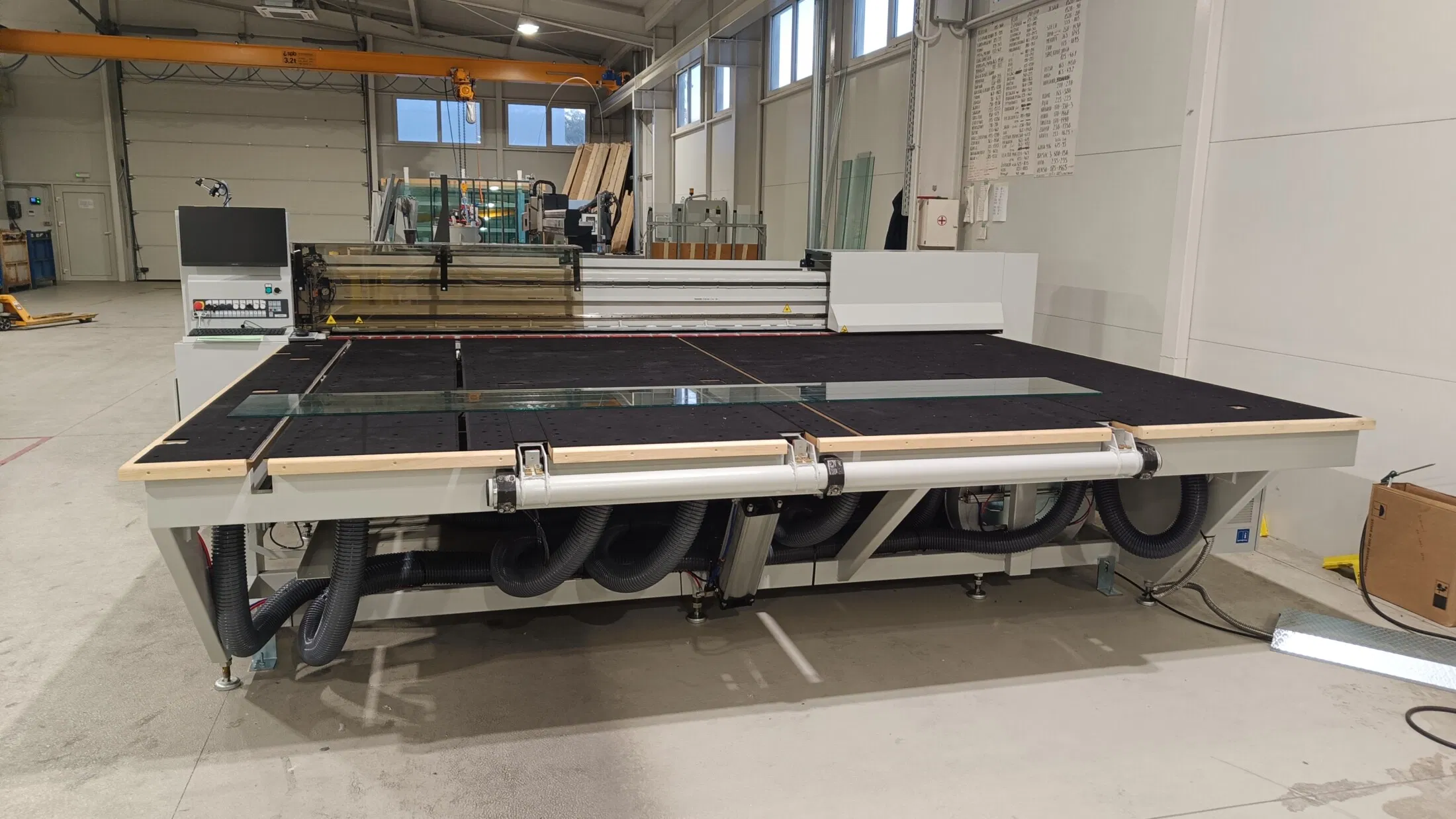

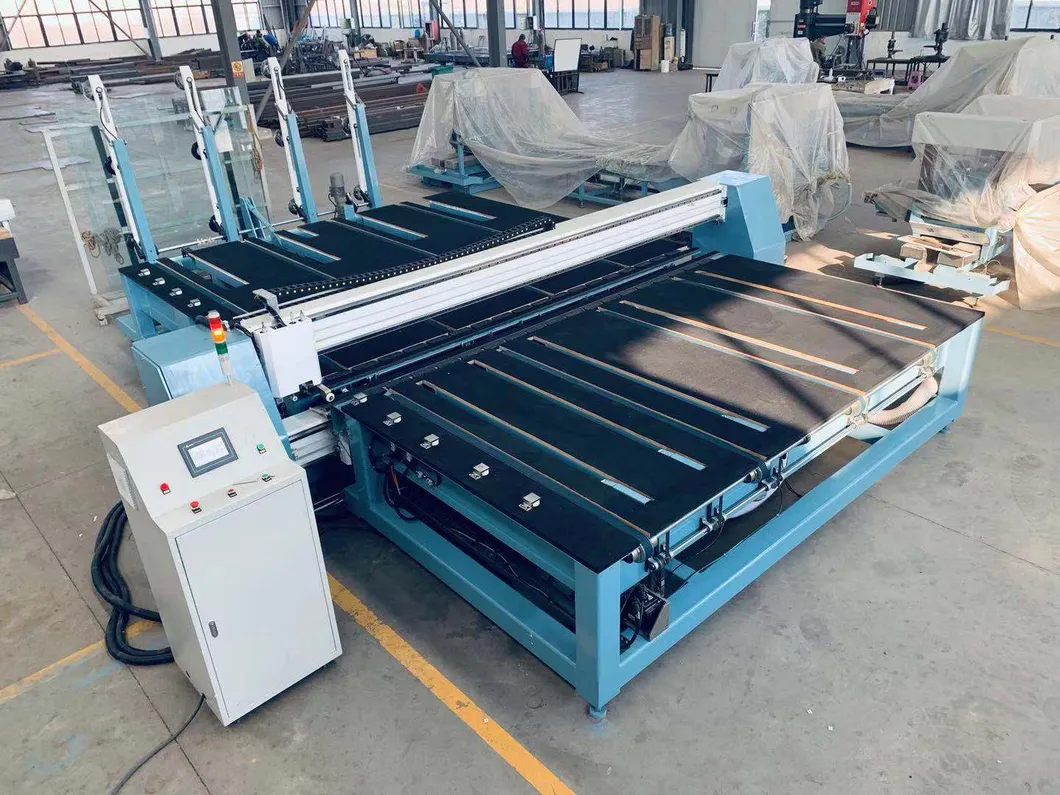

HHXC-LM3826 Automatic Laminated Glass Cutting Machine

Machine Name	Automatic Laminated Glass Cutting Machine
Maximum Cutting Thickness	20 mm
Power Supply	380V
Safety Features	Emergency Stop Button, Overload Protection, Safety Sensor
Max. Glass Sheet Size	3700*2500mm
Min. Glass Cutting Size	400*250mm
Laminating Glass Thickness	3+3mm - 12+12mm
Max. Cutting Speed	120m/Min
CNC System	Galil (USA)
Weight	3000kg

Product Description

✔️

Easy Operation: High cutting precision with user-friendly control interface.

✔️

Sturdy Construction: International standard steel with perfect surface treatment, annealed and milled for high stability.

✔️

Adjustable Settings: Cutting and breaking pressure, as well as far-infrared heating temperature and time, are fully adjustable.

✔️

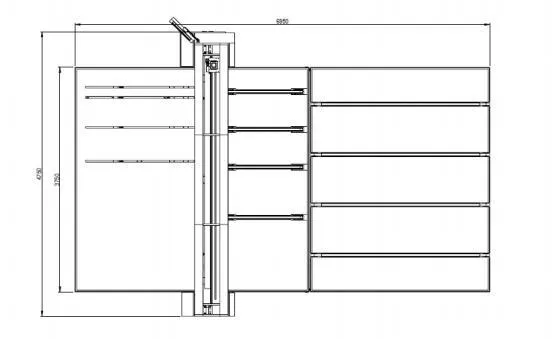

Advanced System: Three-section design with a bridge frame featuring up and down double cutters and upper clamp.

Technical Parameters & Major Functions

Major Functions:

Layout optimization for maximum efficiency
Automatic stripping and production database
High-speed quartz tube heating
Belt conveyor system
Multi-language interface (Chinese and English)

Main Mechanical Components:

Rack and Rail: KHK Japan
Guide Rail: Hiwin Taiwan

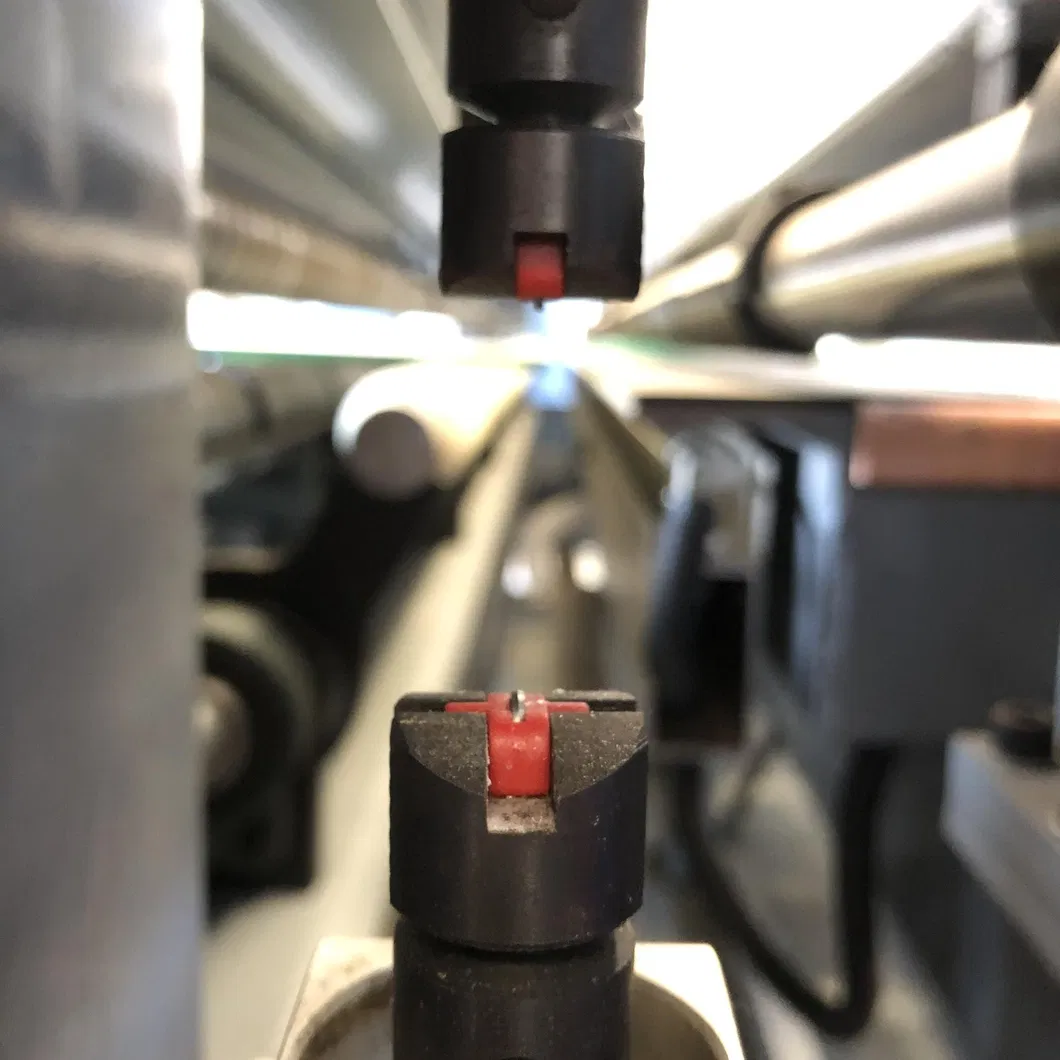

Cutter Wheel/Holder: Bolhe Germany

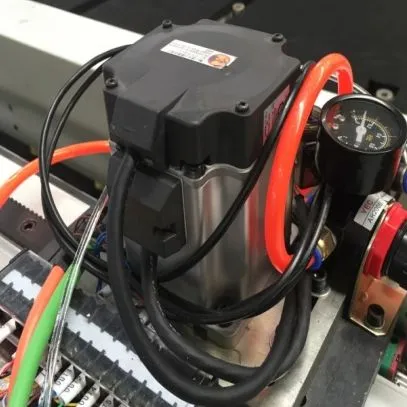

Servo Motor: NMH Germany

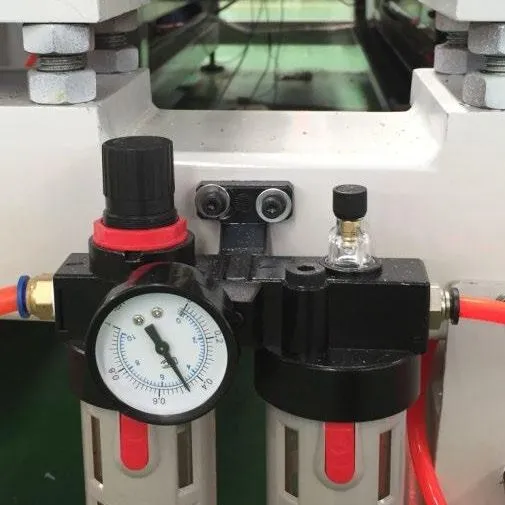

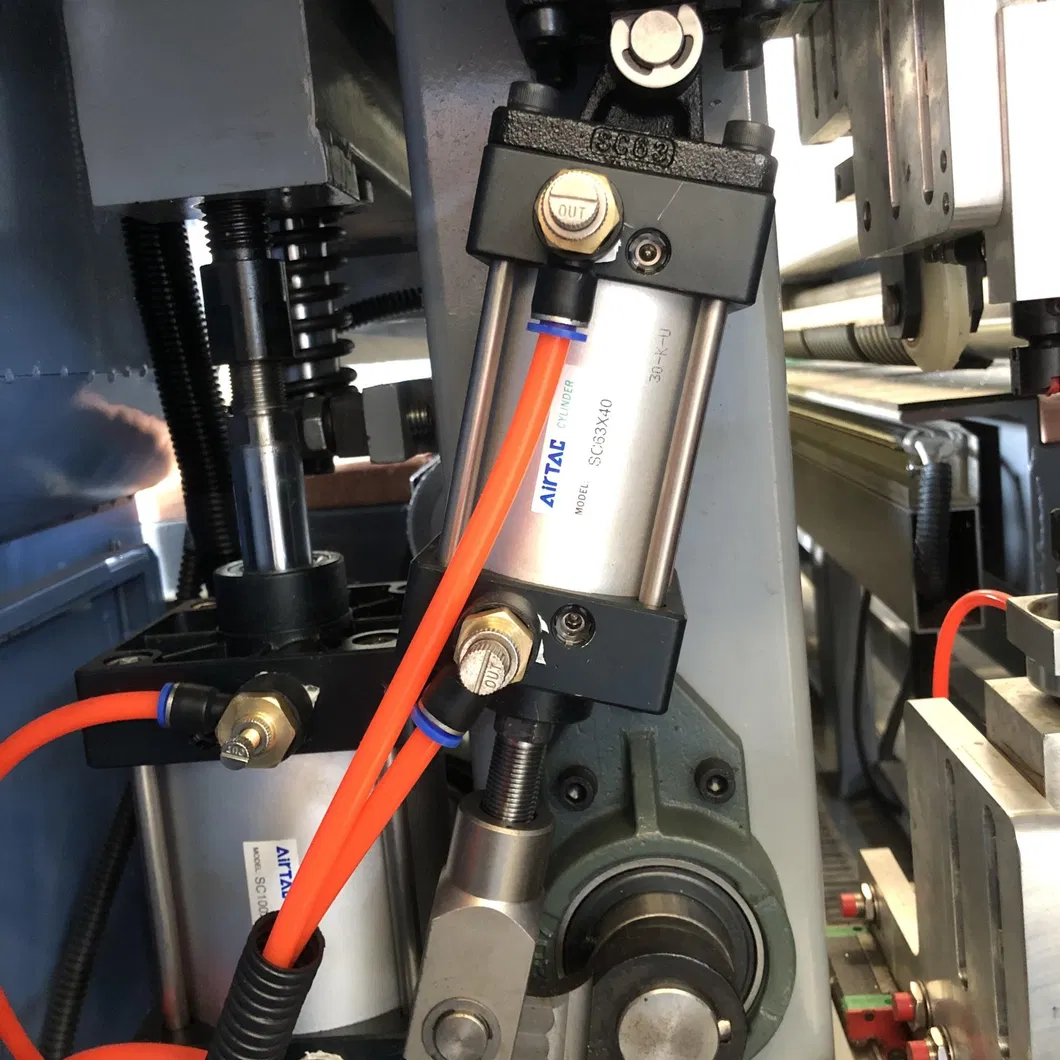

Pneumatic Parts: Airtec Taiwan

Application

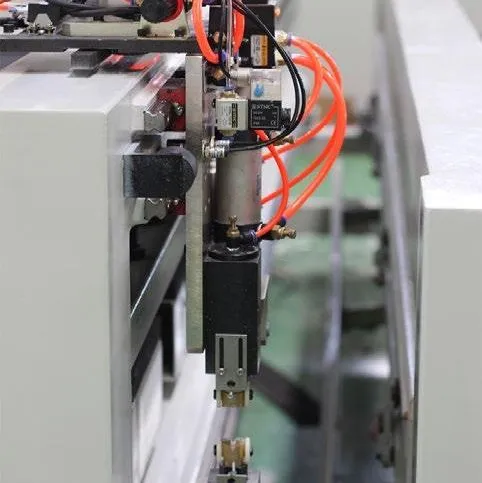

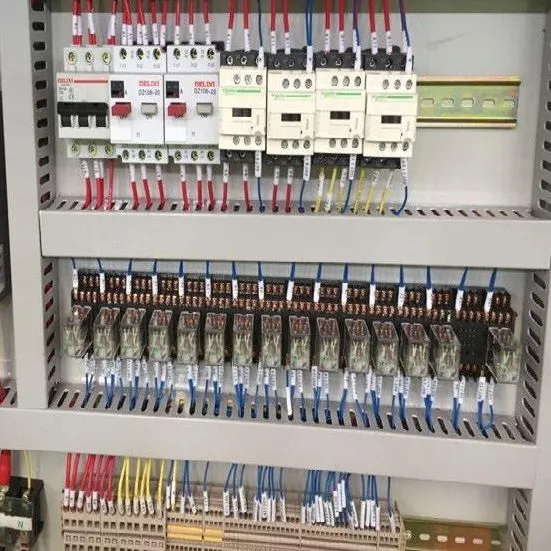

Detailed Photos

Laminated Glass Cut Flow Chart

Set cutting glass length and width

Load glass on air float table

Air blower start & Move glass to auto location area

Cutting head drops to glass surface by pneumatic control

Heating start & Bottom crossbeam move to break glass

Film knife start to cut film

Professional Service

We provide high-quality flat glass processing machinery, services, and supplies. Our focus is on offering innovative and reliable equipment for fabricating, handling, and processing flat glass. Each manufacturer we work with is characterized by long-lasting durability and high reliability.

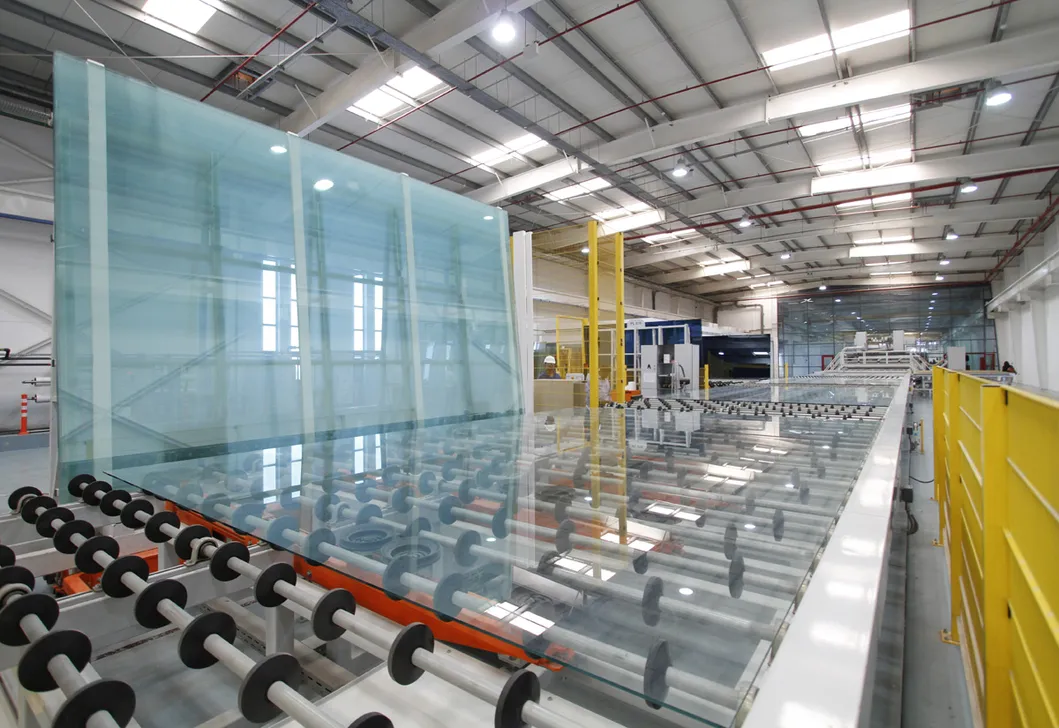

Our technical team offers end-to-end support including on-site or remote installation, commissioning, and training. We also guarantee a consistent supply of spare parts and provide customized technical manuals.

Frequently Asked Questions (FAQ)

Q1: What is the maximum glass thickness this machine can handle?

The machine can cut laminated glass with a total thickness ranging from 3+3mm up to 12+12mm, with a maximum cutting thickness of 20mm.

Q2: What are the requirements for the power supply?

The standard power supply for the Automatic Laminated Glass Cutting Machine is 380V.

Q3: Does the machine support customized cutting sizes?

Yes, it supports a maximum glass sheet size of 3700*2500mm and a minimum cutting size of 400*250mm.

Q4: What kind of CNC system is used for control?

The machine is equipped with the high-performance Galil CNC system from the USA for precise operation.

Q5: Can the heating time and temperature be adjusted?

Yes, both the far-infrared heating temperature and the heating time are fully adjustable to suit different glass specifications.

Q6: What is the maximum cutting speed of the machine?

The machine features a maximum cutting speed of up to 120 meters per minute.
