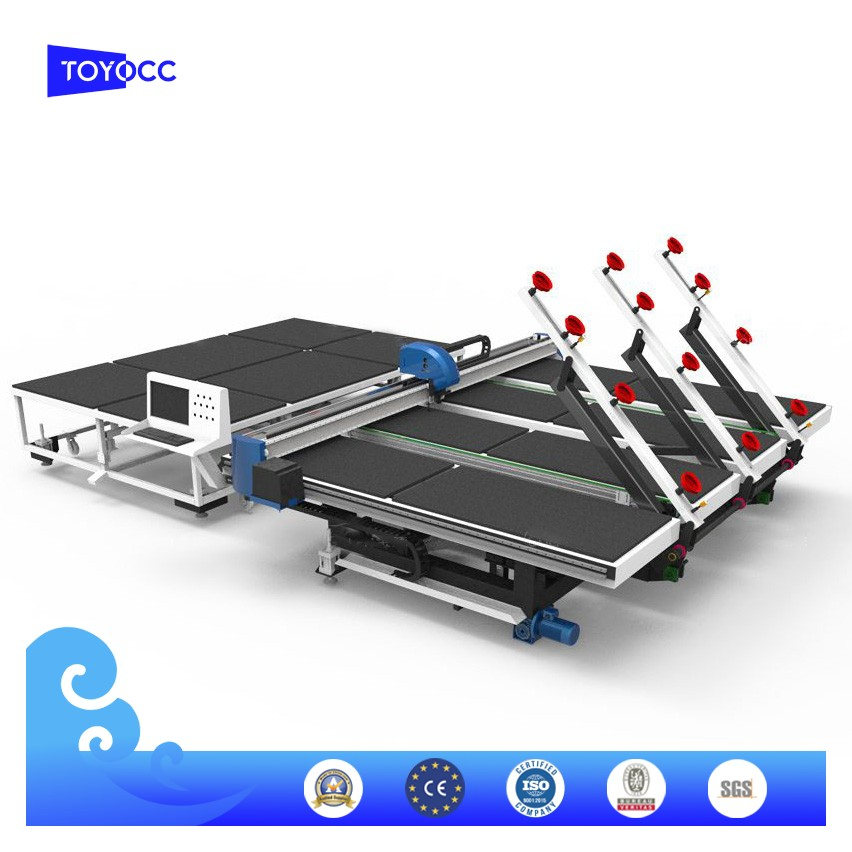

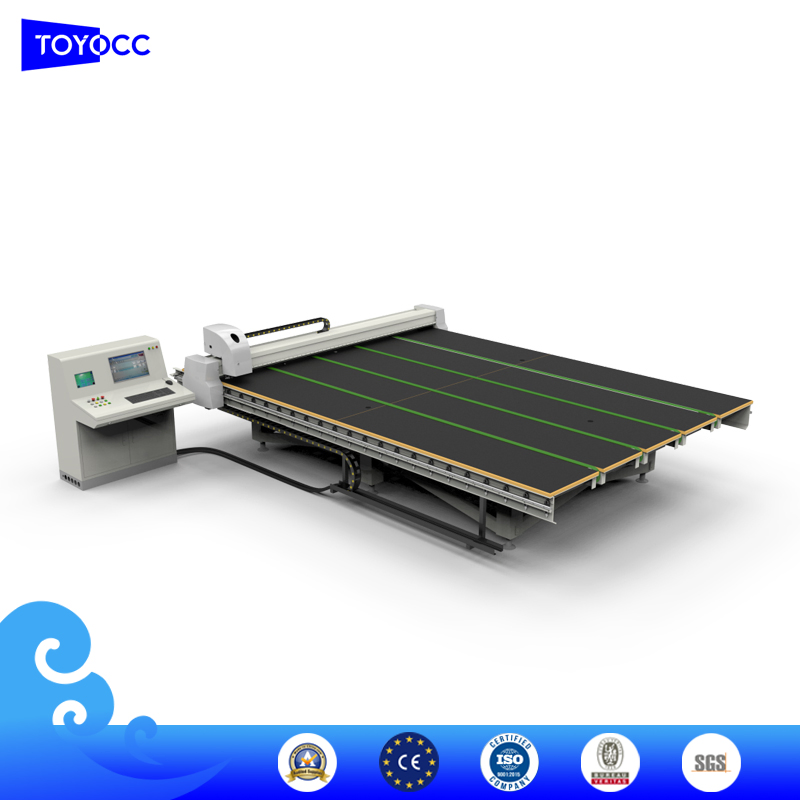

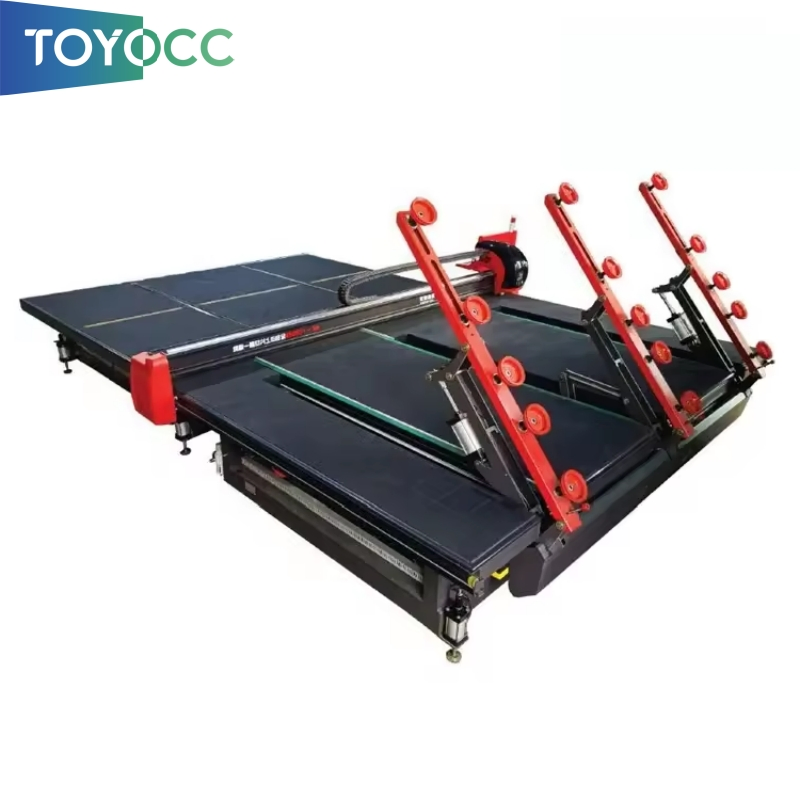

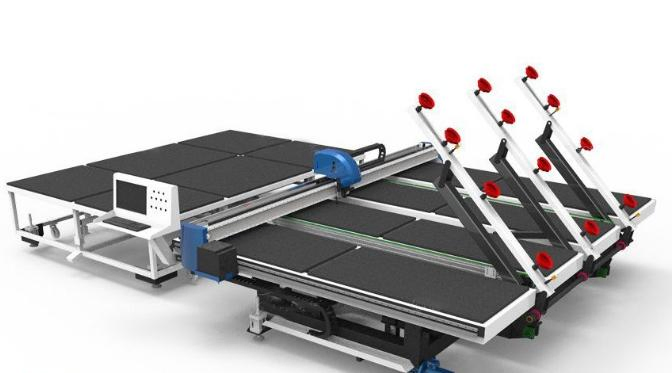

CNC Multifunctional Cutting Glass/ Slab with Cutting, Loading, Delivering and Breaking

1 / 5

CNC Multifunctional Cutting Glass/ Slab with Cutting, Loading, Delivering and Breaking

Customization:	Available
Certification:	CE, FDA, PDA, CE, ISO
Cutting Method:	Diamond Wheel Cutting, Laser Cutting

Send Inquiry

Product Description

Basic Information

Model NO.:TYJT-2420/TYJT-3628

Safety Features:Emergency Stop, Overload Protection, Safety Sensor

Cutting Thickness:2-19mm

Working Table Height:820mm

Cutting Speed:0-180m/Min

Type:Glass Cutting Machine

Warranty:1 Year

Production Capacity:10000 Pieces/Year

HS Code:846490110

Product Description

CNC Cutting Machine Series

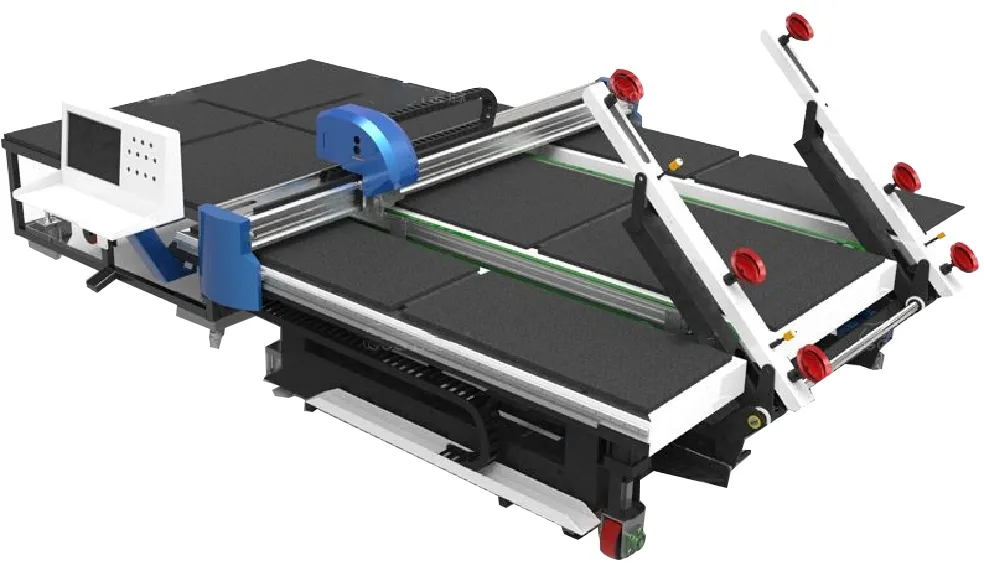

Loading, Cutting, Transfer & Break off table - 4 in 1

The Automatic Glass Cutting is a highly intelligent system designed for efficient handling and precision cutting of large, thick glass sheets. It integrates loading, positioning, and cutting in one streamlined process, offering enhanced safety, speed, and accuracy.

⚙️

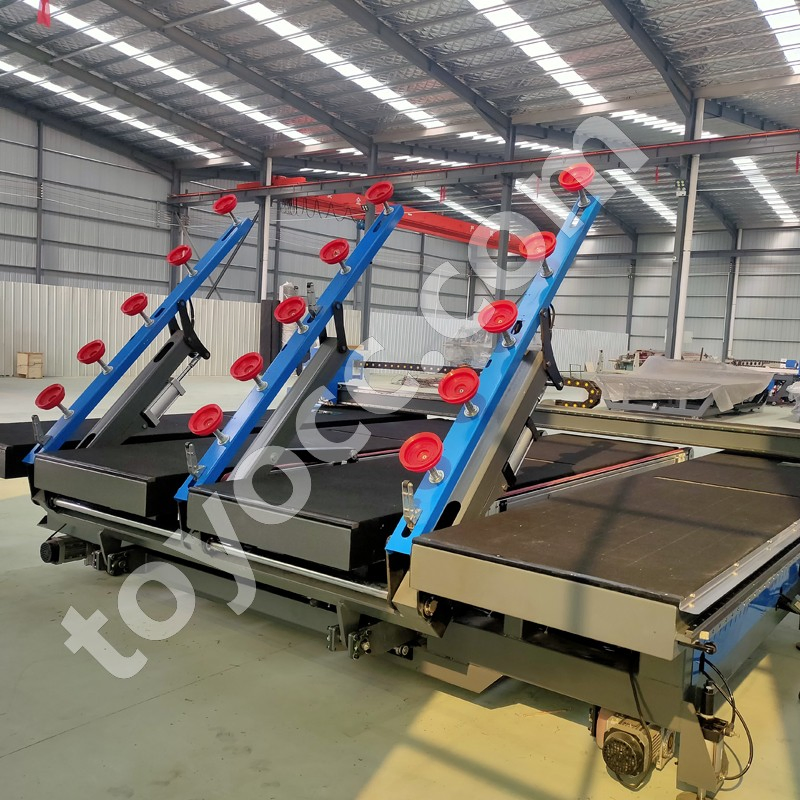

Integrated Workflow: Absorbs vertically placed large glass via suction cups and converts it to horizontal automatically for precision cutting.
🤖
Dual Control System: Combines PLC microcomputer for loading and CNC system for cutting, ensuring smooth, intelligent operation.
🔄
360° Movement: Capable of walking within the workshop and rotating freely for flexible handling and space utilization.
🎯
Laser Positioning: Built-in laser alignment and graphic scanning systems automate layout, eliminating manual CAD measurements.
💎
Precision Cutting: Features a German-imported cutter wheel with high hardness and a collision-protection system.

Technical Parameters

Specification	TYJT-2420	TYJT3628
Dimensions	363047001400mm	39307001400mm
Working Table Height	850mm	850mm
Glass Max Processing Size	2440*2000mm	3660*2800mm
Cutting Thickness	3-19mm	3-19mm
Cutting Speed	0-180m/min	0-180m/min
Loading Speed	15-40 seconds	15-40 seconds
Installed Power	11.8 KW	11.8 KW
Net Weight	3000KG	3100KG

Details Showing

Smart Suction: One-touch start, automatic boom raising and rotation to find glass position.

Smart Typography: Efficient input system for glass size and shapes to optimize output.

Automatic Cutting: 360-degree rotation Boler head for any complex shape cutting.

Air Floating Platform: Over 100 air holes ensure stable airflow for easy glass maneuvering.

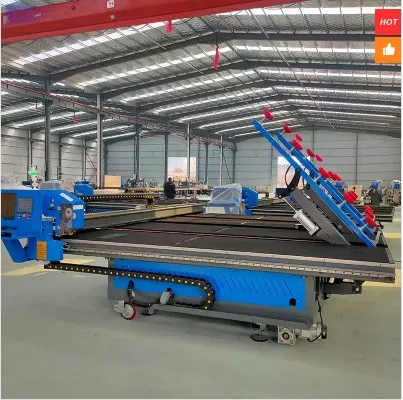

Detailed Gallery

Why Choose Us?

Industry Leader: Top 3 Glass Machinery Supplier in China.
Global Trust: Served 864 Global Clients with superior quality.
Partnerships: Partner of the World's Top 20 Glass Factory Brands.

Experience: 28 Years of Manufacturing, 9 Years of Export Expertise.
Quality Control: Strictly 15 Quality Controls and Inspections.
Management: Adherence to 6S Production Requirements.

Frequently Asked Questions

What types of glass cutting machines do you offer?

We offer a full range including automatic float glass cutting tables, CNC cutting centers, shape cutting machines, and laminated glass cutting systems.

What is the maximum glass size your machine can handle?

Our standard machines handle sheets up to 3660 x 2800 mm. Customized designs are available for larger dimensions.

How accurate is the cutting performance?

Using servo motors and high-precision guide rails, we achieve cutting accuracy within ±0.2 mm.

Can your cutting machine handle laminated glass?

Yes, we provide specialized machines with heating systems to accurately cut both glass layers and the PVB/SGP interlayer.

What control system does your machine use?

Equipped with advanced CNC systems supporting DXF imports, automatic optimization, and real-time monitoring via touchscreens.

Do you provide installation and after-sales service?

Yes, we offer on-site support, online video guidance, a 2-year warranty, and lifetime technical support.
