| Model NO. | TYJT-2420 / TYJT-3628 | Safety Features | Emergency Stop Button, Overload Protection, Safety Sensor |
|---|---|---|---|
| Cutting Thickness | 2-19mm | Height of Table | 820mm / 850mm |
| Min Glass Size | 2440*2000mm | Max Glass Size | 3660*2440mm / 3660*2800mm |
| Cutting Speed | 0-180m/Min | Type | Glass Cutting Machine |
| Warranty | 1 Year | Production Capacity | 10000 Pieces/Year |
Loading, Cutting, Transfer & Break off - Multi-functional Integration

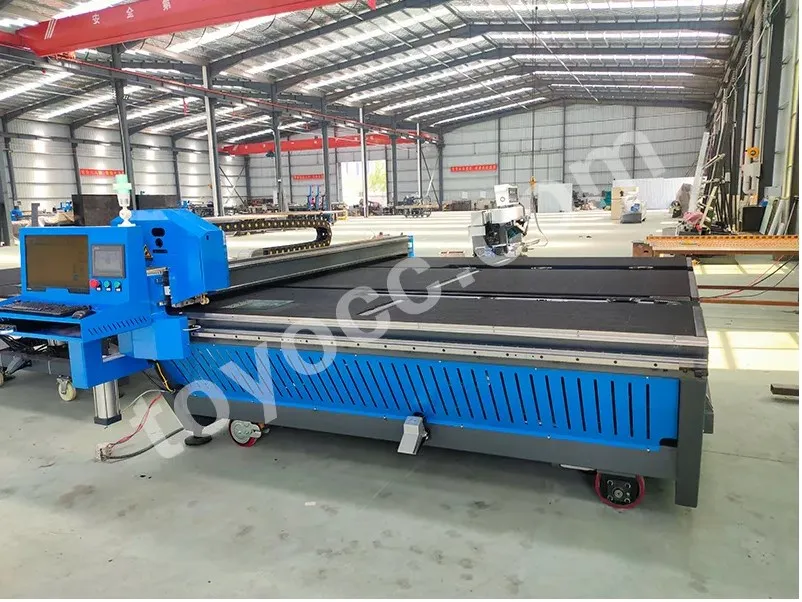

The Automatic Glass Cutting is a highly intelligent system designed for efficient handling and precision cutting of large, thick glass sheets. It integrates loading, positioning, and cutting in one streamlined process, offering enhanced safety, speed, and accuracy.
| Specifications | TYJT-2420 | TYJT-3628 |
|---|---|---|
| Dimensions | 3630*4700*1400mm | 3930*700*1400mm |
| Glass Max Processing | 2440*2000mm | 3660*2800mm |
| Cutting Speed | 0-180m/min | 0-180m/min |
| Loading Speed | 15-40 seconds | 15-40 seconds |
| Net Weight | 3000KG | 3100KG |

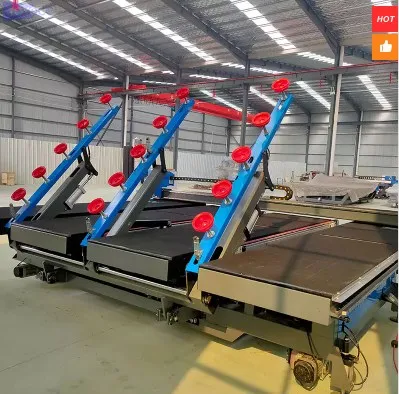

Smart Suction
Automatic boom raising, walking, and rotation to find glass angle with a suction monitoring system.
Smart Typography
Input glass size and shape into the control panel for optimized nesting and efficiency.
Automatic Cutting
360-degree rotating German Boler head for high-precision shaped cutting via computer control.

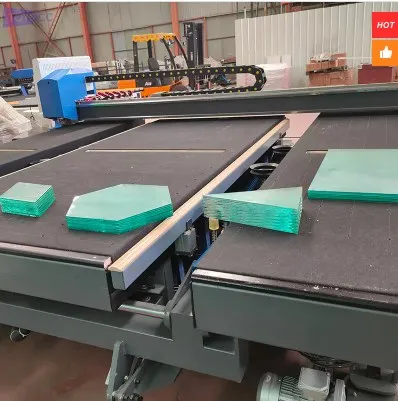

Air Floating Platform
Over one hundred air holes ensure airflow stability for easy glass positioning.
