Gluing part adopts special relocation mechanism, ensure the gluing nozzle will touch IG unit closely, but will not break it. It adapts to a certain range of displacement error of IG unit.
Sealing width is adjustable by parameter input, convenient and accurate. Sealing depth is detected automatically. Sealing speed is controlled by depth and gluing quantity for optimal quality.
All important electric elements utilize imported famous brands (Servo motor, controller, sensors, fiber optic switches) to ensure reliable operation and long service life.
Key moving parts such as suckers, reducers, rails, and sliders are adopted from international brands to ensure smooth and safe glass transfer.

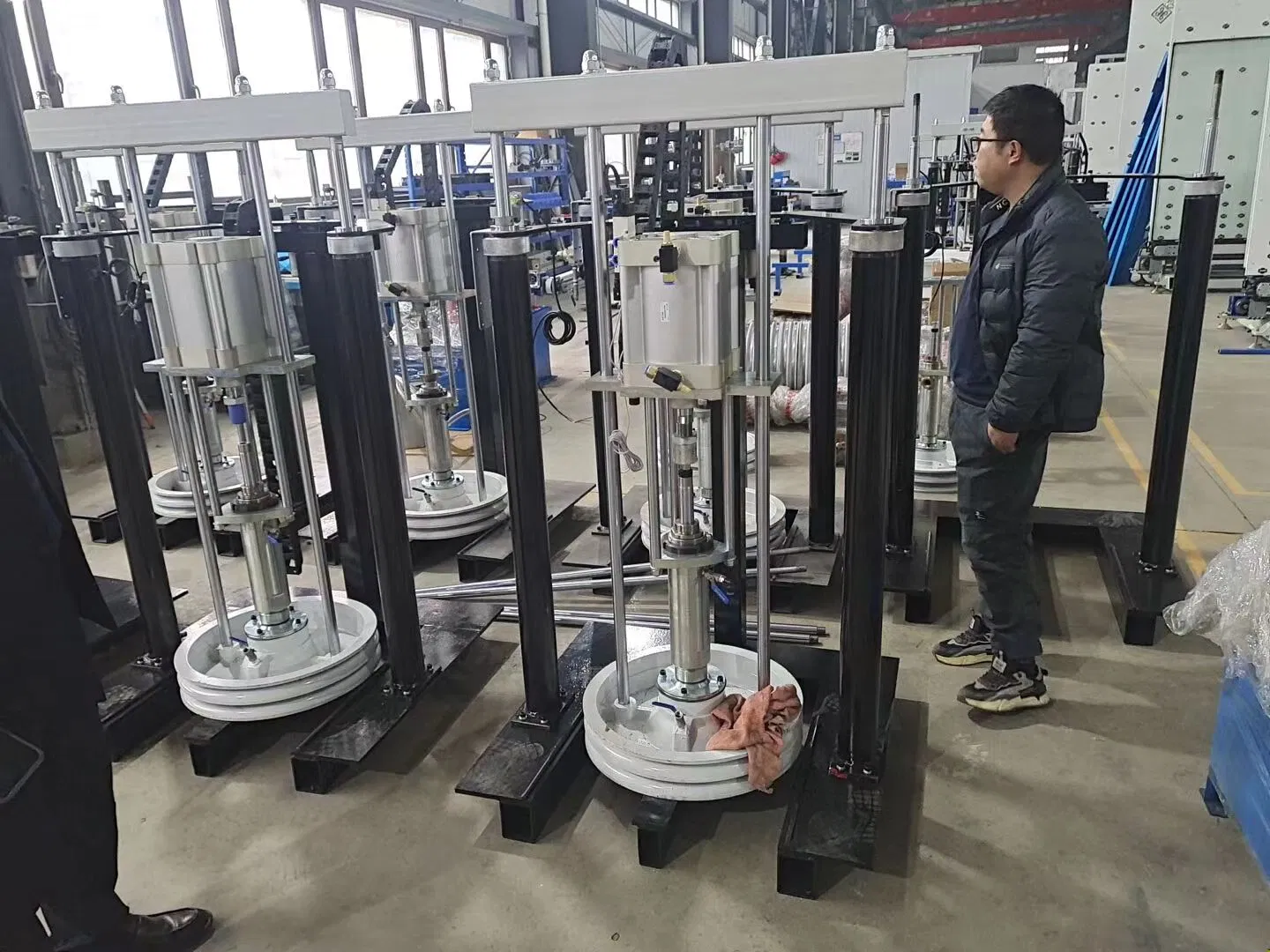

Hydraulic glue system uses precise pressure control for white glue and mechanical linkage for black glue ratio adjustment, making it simple and reliable.
Combination transfer mode with high-quality 3-row roller chain and unique V-block ensures stable running of coated glass with low friction.
Touch screen man-machine interface with graphic combination, making it easy to understand and operate.
Automatic digital control system by servo motor ensures precision. Features unilateral sealing, alarming, and automatic determination/lock functions.

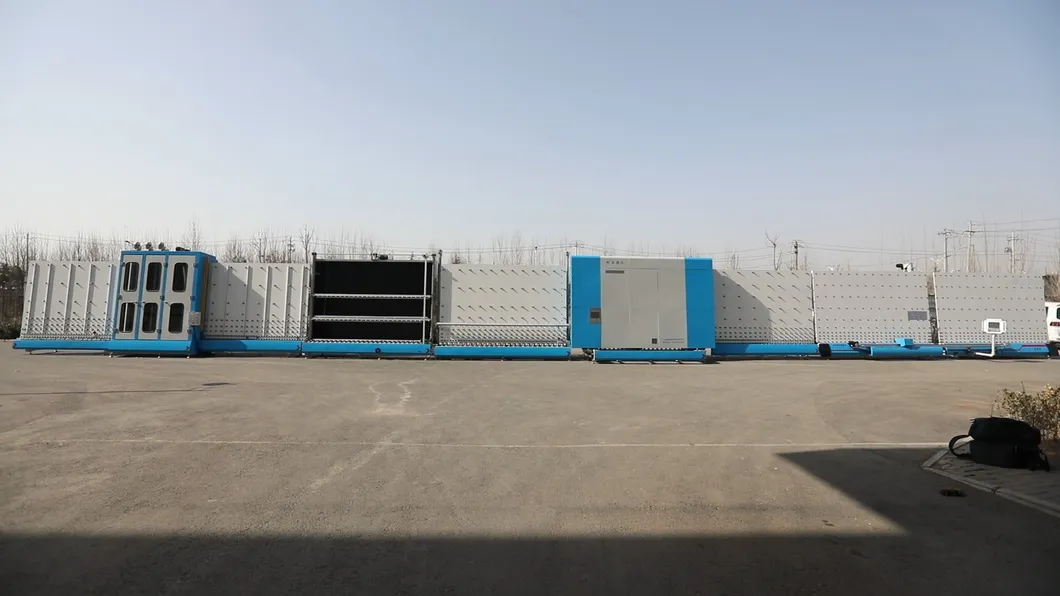

The equipment can operate independently or integrated into an IG unit production line for maximum efficiency.
Adopts high-quality Aosong board through NC machining and wheel combination, ensuring both beauty and durability.
Optimized structure achieves low power consumption and high processing efficiency.

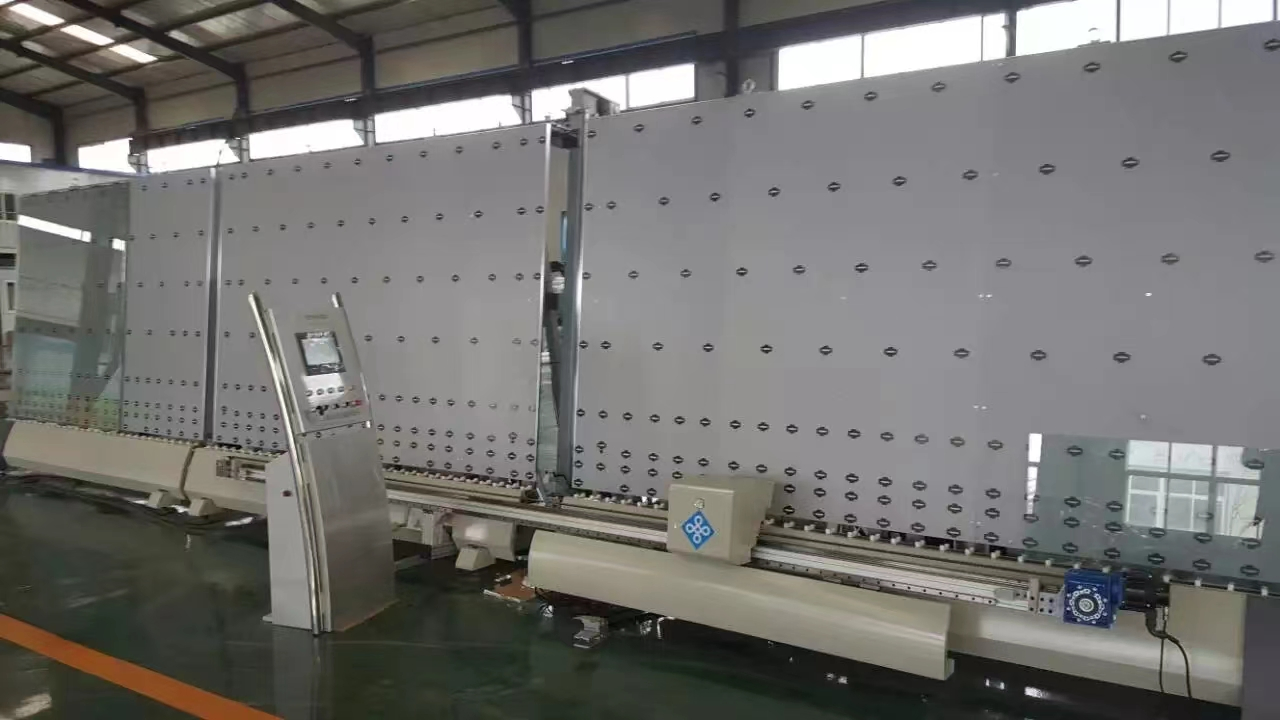

Visual Display
Frequently Asked Questions
● What is the maximum glass size this sealing robot can handle?
The ZDJ-V33 model can handle a maximum glass size of up to 6000*3300mm.
● What range of glass thickness is supported for IG units?
This equipment supports Insulating Glass (IG) units with a thickness ranging from 12mm to 50mm.
● How fast can the machine seal glass?
The sealing speed is adjustable and ranges from 5m/min to 35m/min, automatically optimized based on sealing depth.
● Can the robot detect sealing depth automatically?
Yes, the sealing depth can be detected automatically, and the parameters can be adjusted via the touch screen interface.
● What kind of components are used in the control system?
The machine uses imported high-quality components, including servo motors and digital control systems, to ensure high precision and durability.
● Is the machine compatible with production lines?
Absolutely. While it can work as a standalone unit, it is designed to be easily integrated into a full Insulating Glass production line for higher efficiency.
