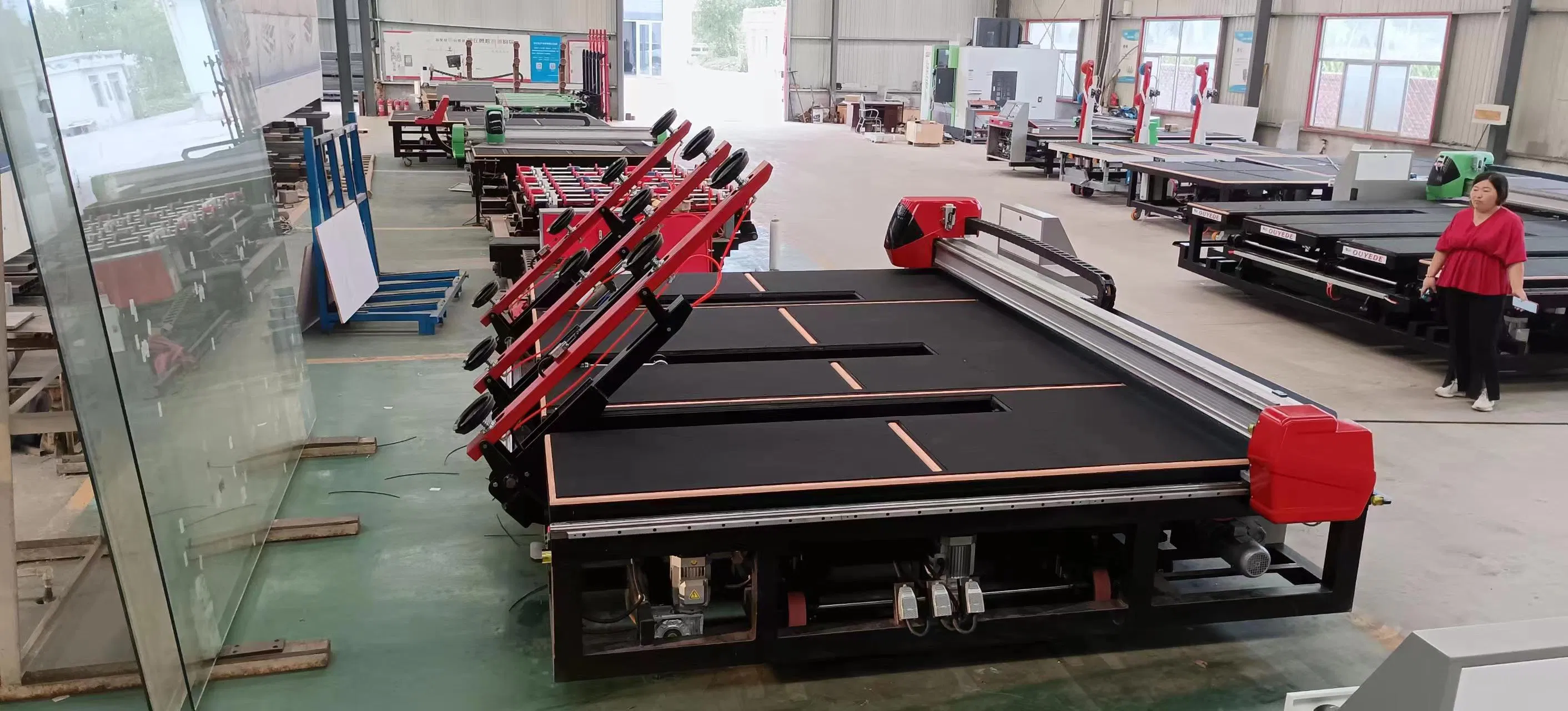

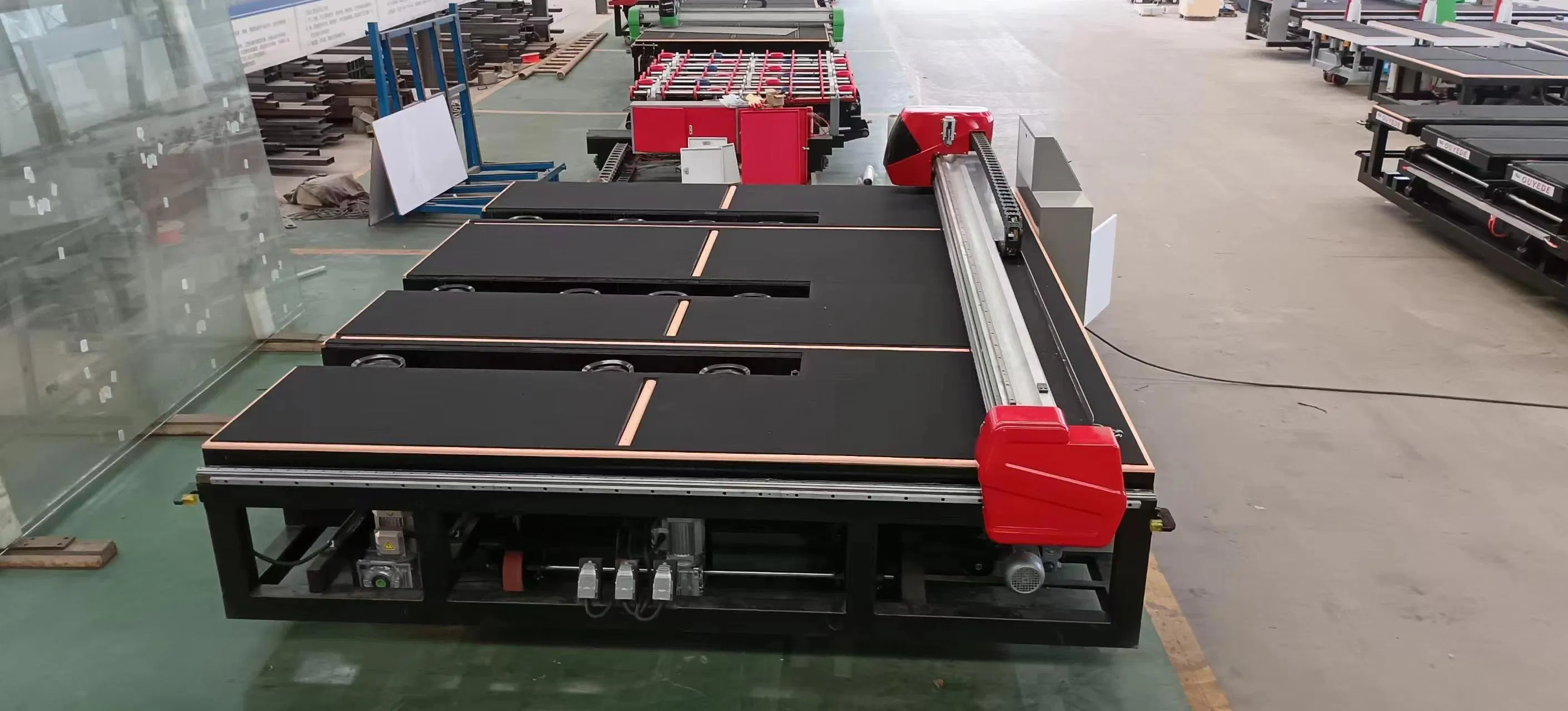

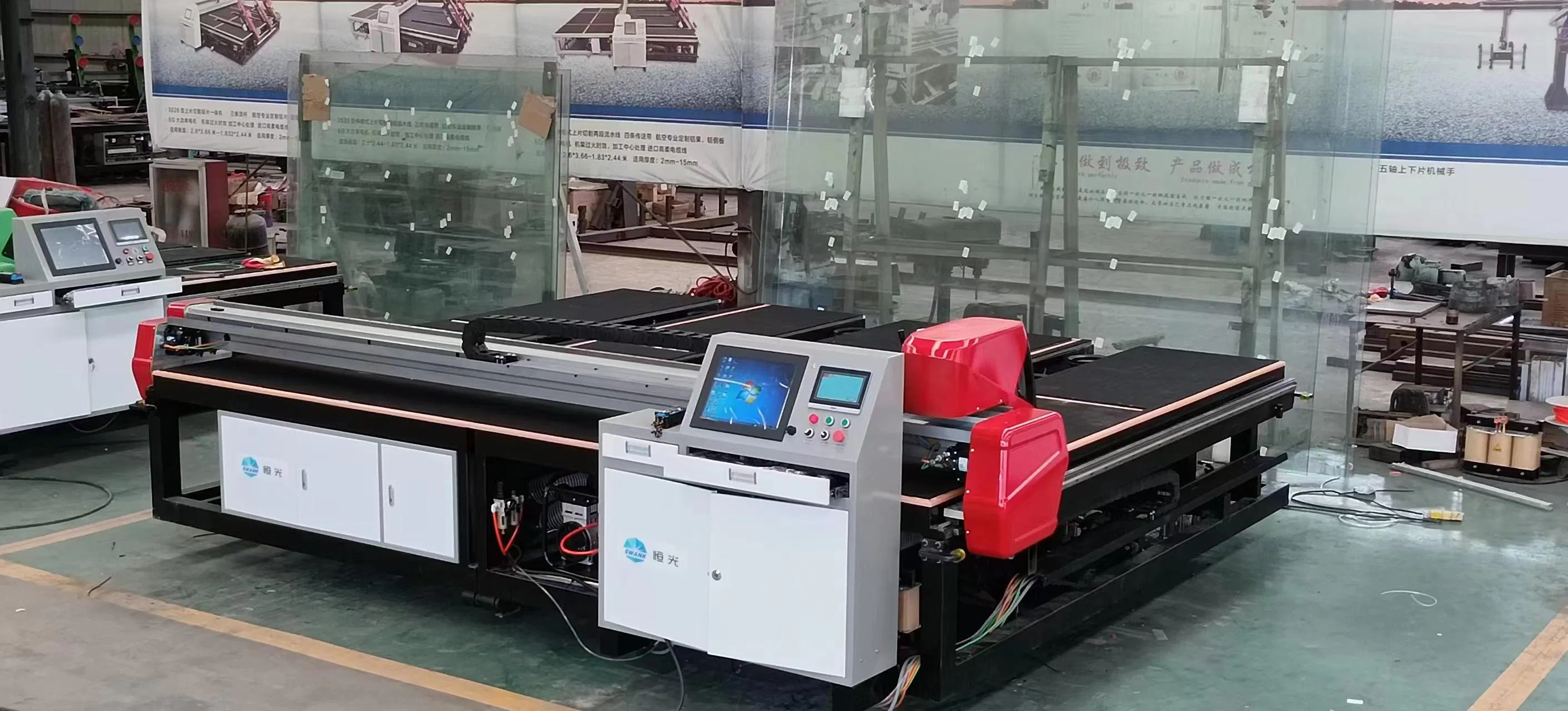

Dual-Laser Alignment Glass Cutting Table

1 / 5

Dual-Laser Alignment Glass Cutting Table

Customization:	Available
Certification:	CE, ISO
Cutting Method:	Diamond Wheel Cutting

Send Inquiry

Product Description

Basic Information

Model NO.

3826

Max Cutting Thickness

20 mm

Power Supply

Option

Safety Features

Emergency Stop, Overload Protection, Safety Sensor

Type

Glass Cutting Machine

Condition

New

Warranty

One Year

After-Sales Service

One Year

Transport Package

Suitable for Sea

Specification

3800*2600mm

Origin

China

Product Characteristics

Loading, cutting and breaking on the same table
Automatic loading with suck discs
Cutting pressure automatic adjusted according to glass thickness
Cutter head 360 degree rotating
Water proof surface panel, stainless steel side covered
Water and deformation resisting
High quality felt, perfect level, anti-static
Self-lubricating guide rail
Air filter for keeping the oil clean
Linear guide rail
Automatic oiling for transmission system
Any shape cut, high cutting speed

Technical Parameters

Model	Max. glass size	Thickness	Dimensions (LWH)	Max. speed	Air pressure
CNC-3826	2600*3800mm	3~19mm	503034301440mm	160m/min	0.6~0.8MPa

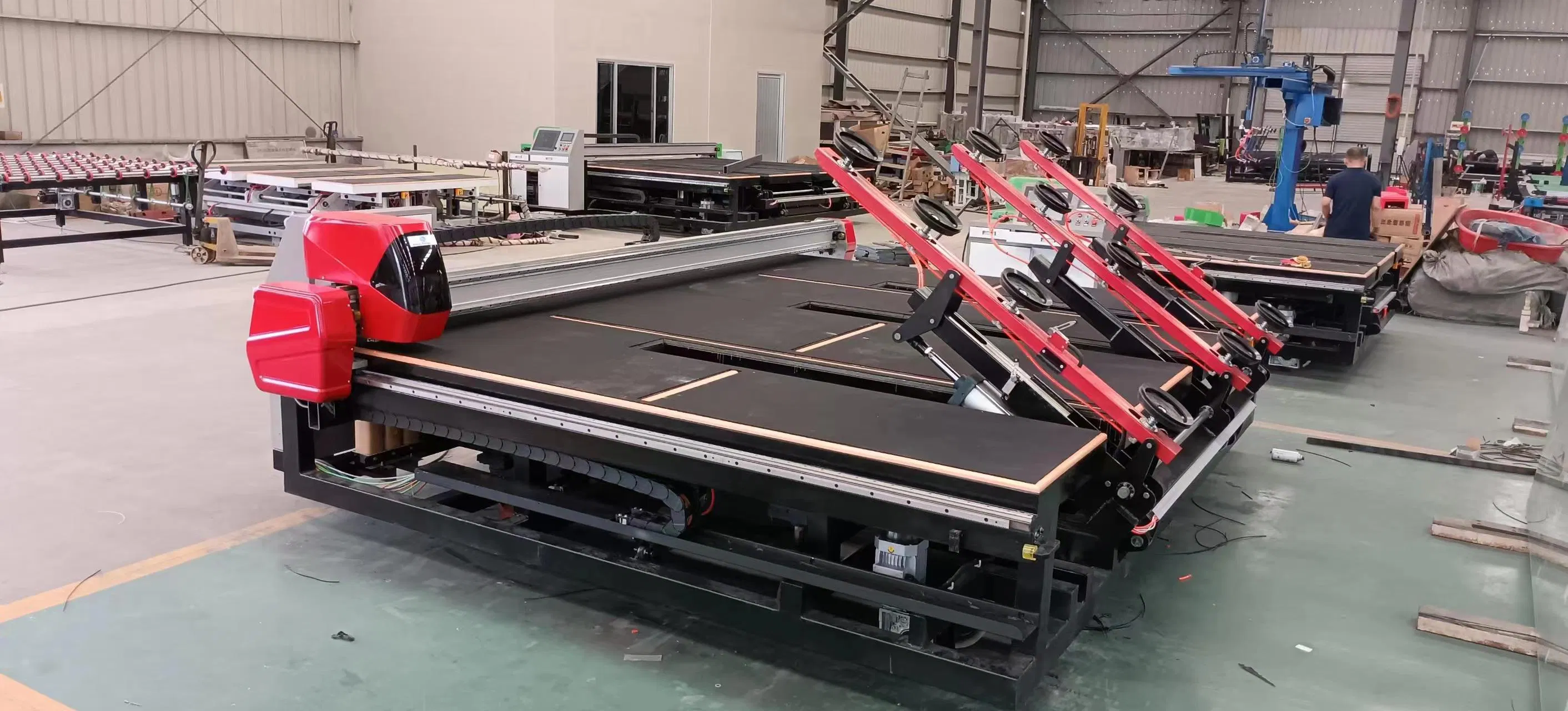

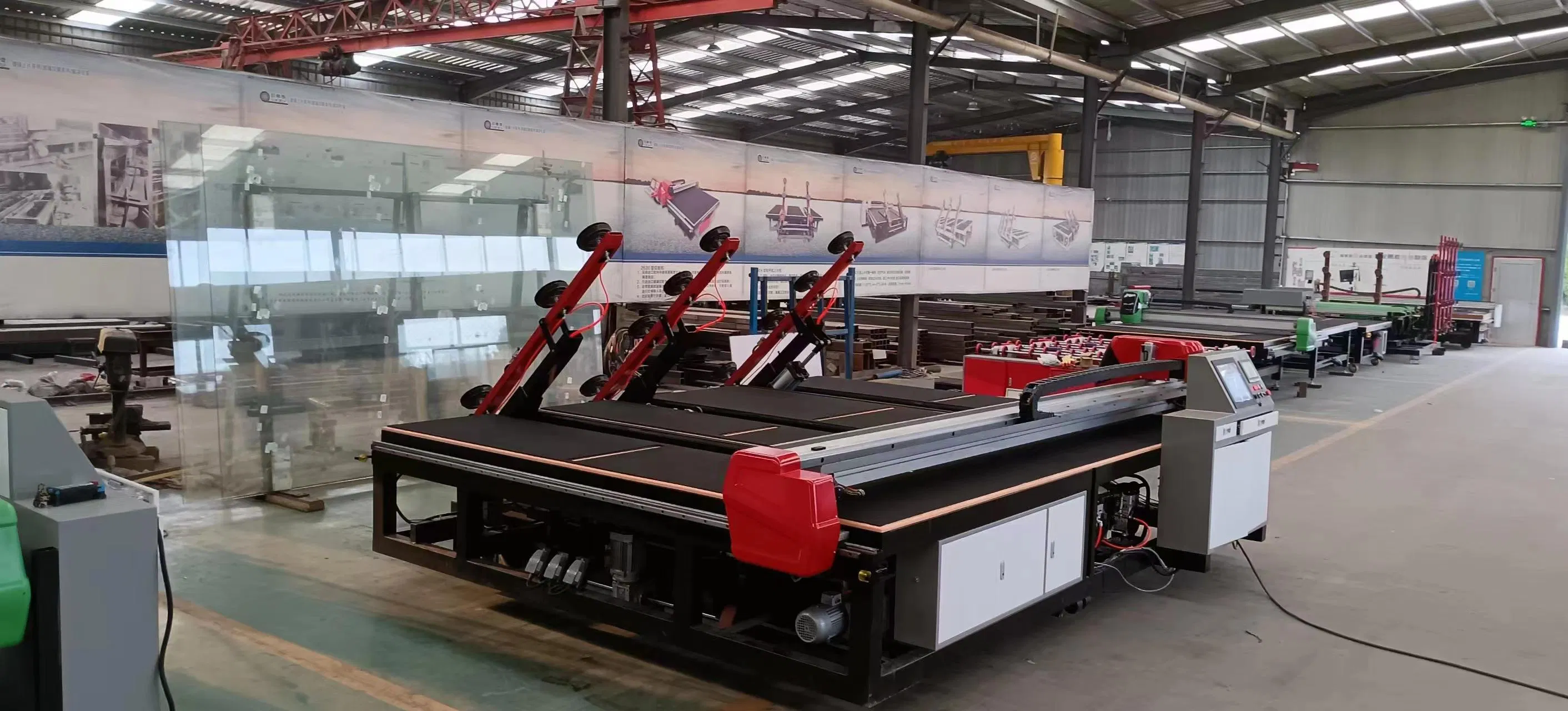

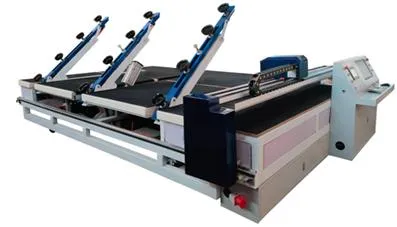

Product Gallery

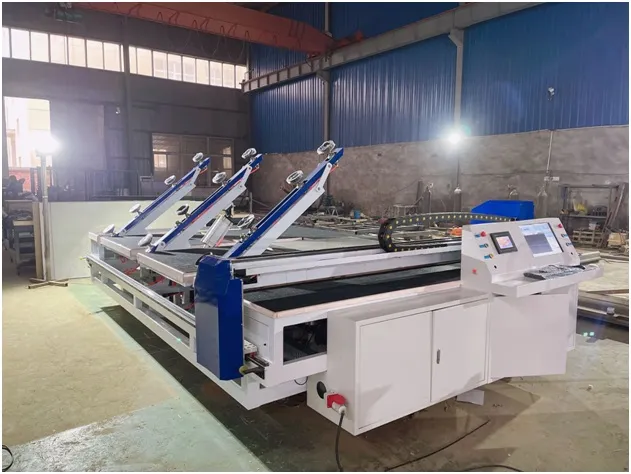

Dual-Laser Alignment Glass Cutting Table Details

Frequently Asked Questions

What functions are integrated into this machine?

This machine is a highly integrated solution that performs loading, precision cutting, and breaking all on the same table, significantly saving workspace and improving efficiency.

How does the machine handle different glass thicknesses?

The cutting pressure is automatically adjusted according to the glass thickness, ensuring optimal cutting quality for glass ranging from 3mm to 19mm (up to 20mm maximum thickness).

What shapes can the machine cut?

Equipped with a 360-degree rotating cutter head and advanced CNC control, the machine can perform high-speed cutting of any complex shape with high precision.

What are the safety and durability features?

The machine includes emergency stop buttons, overload protection, and safety sensors. For durability, it features a waterproof surface panel, stainless steel side covers, and a self-lubricating guide rail.

Is the loading process automated?

Yes, the machine features automatic loading utilizing high-efficiency suck discs to handle glass sheets safely and quickly.

What is the warranty and after-sales policy?

The machine comes with a standard one-year warranty and one year of dedicated after-sales service to ensure smooth operation for your production line.
