Power Supply
Suitable to Local
Safety Features
Emergency Stop Button
Voltage
Suitable to Local Use
Package
Standard Wooden Box
Application
Glass Tube, Glass Rod
Transport
Export Wooden Box

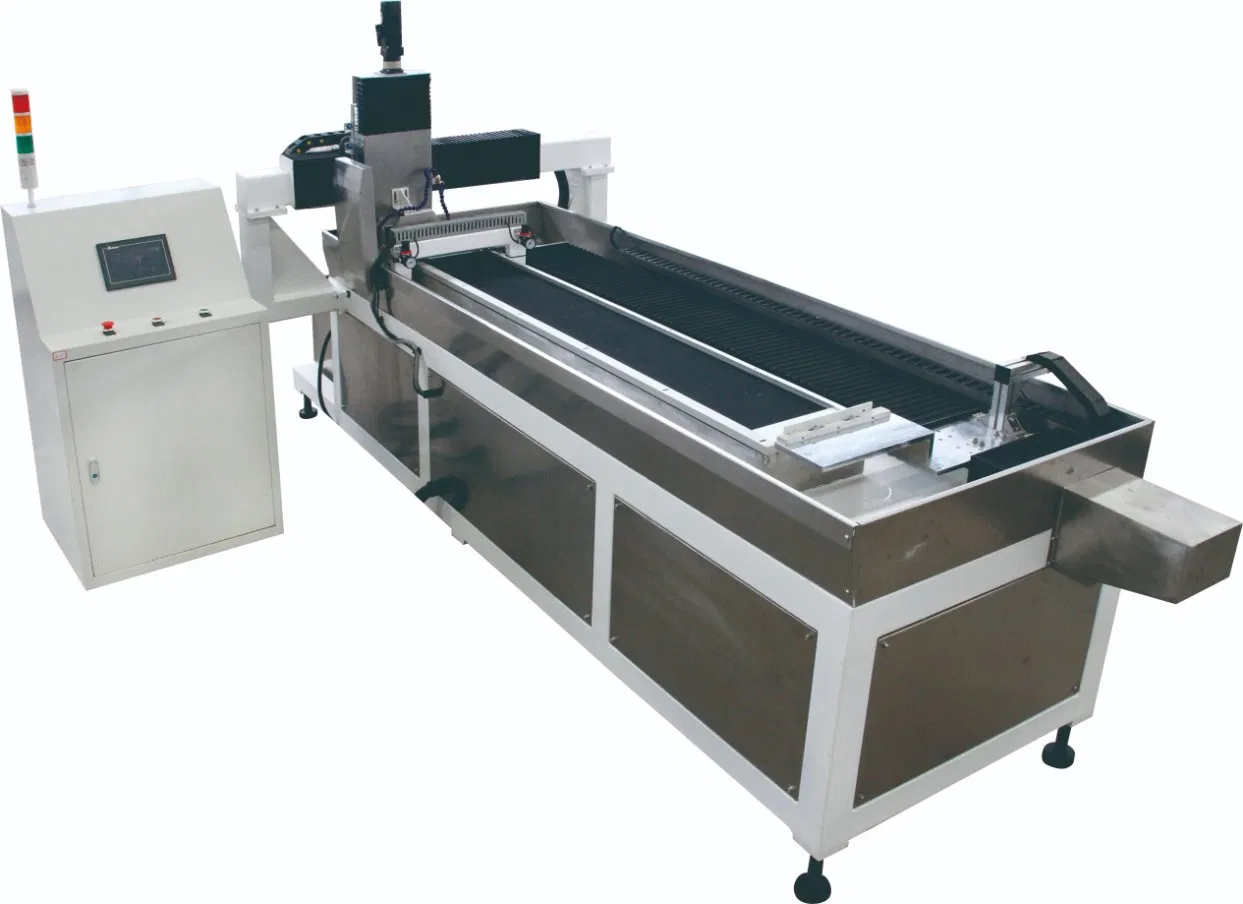

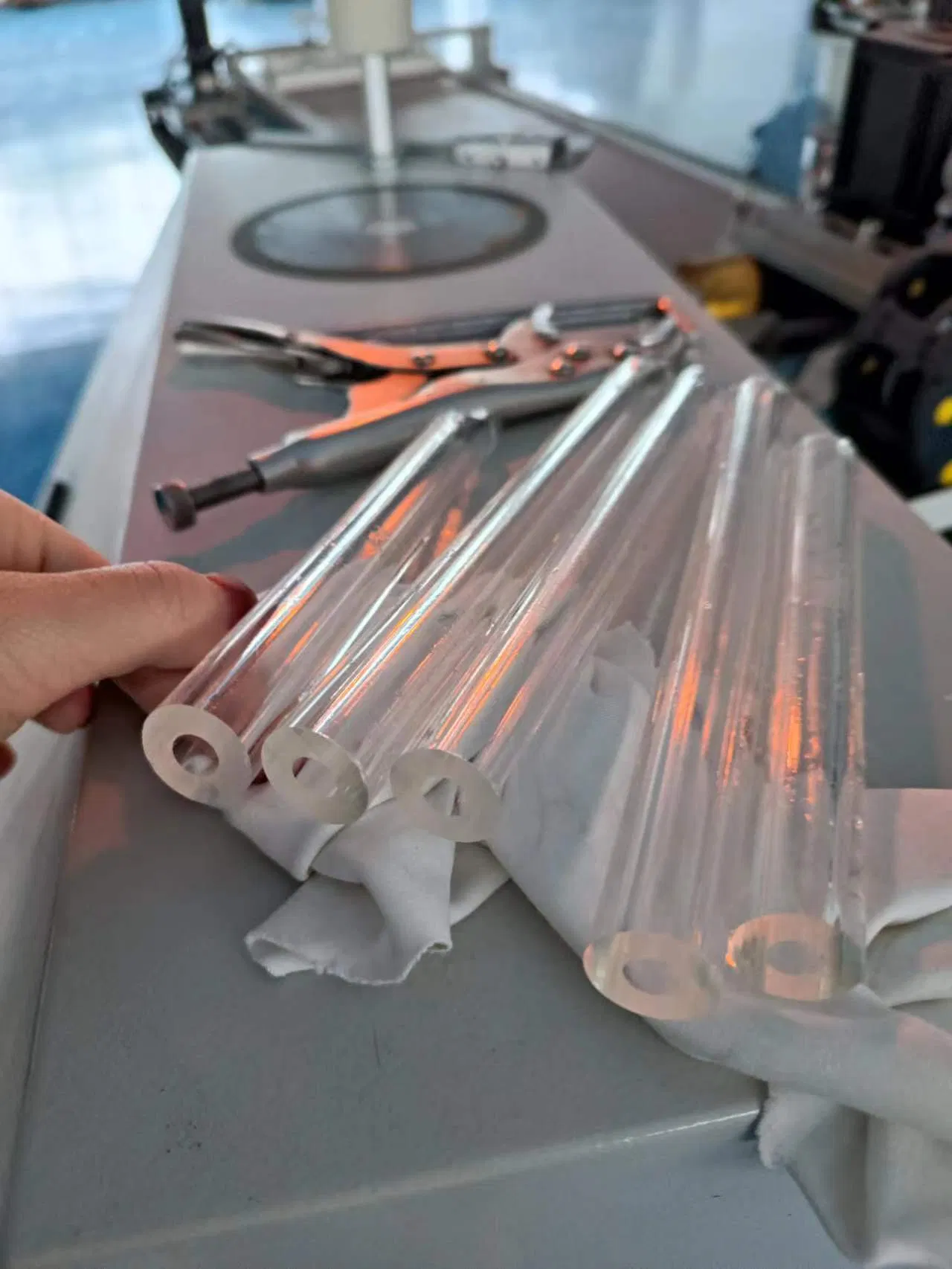

Function Introduction: It is suitable for cutting sintered mandrel, quartz ceramic bar, and quartz tube products. The equipment adopts single saw blade linear running cutting way, which allows it to cut dozens or hundreds of glass tubes and rods simultaneously.
Equipped with an automatic feeding system for high efficiency.

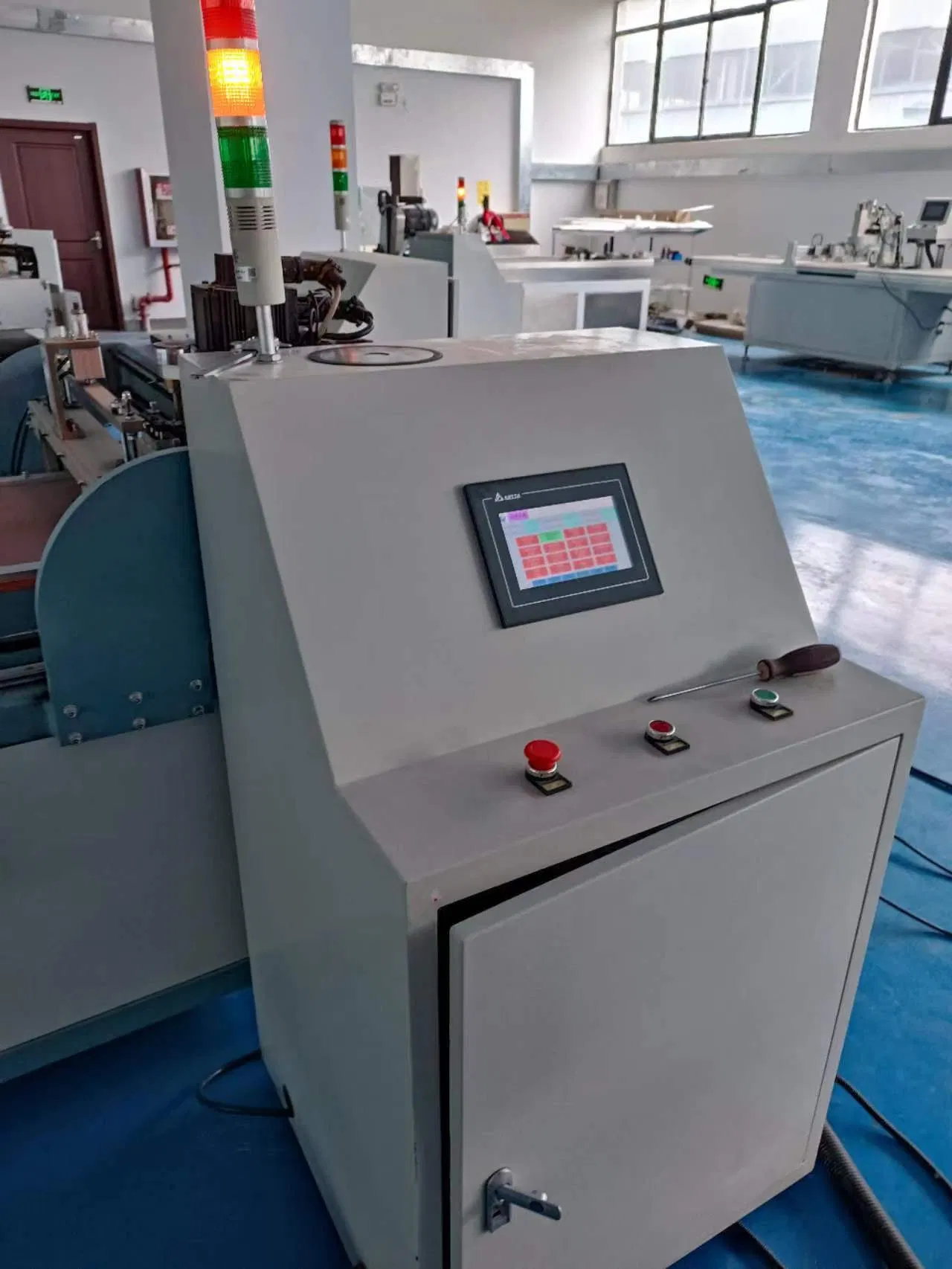

Touch screen input for sizes with error accuracy to 0.15mm.
Supports both automatic and manual operation interfaces.
Circulating cooling water supply with a separate water tank.
Humanized design to reduce glass powder pollution and save water.
Technical Specifications
Raw Material Length
100 - 2000mm
Cutting Diameter
Φ5 - Φ30mm
Wall Thickness
No requirement (Solid material compatible)
Frequently Asked Questions
What types of materials can the SY-2000Z cut?
This machine is specifically designed for cutting sintered mandrels, quartz ceramic bars, and various quartz tube products, including solid glass materials.
What is the cutting precision of this equipment?
The equipment features a high-precision automatic feeding system controlled via touch screen, with an error margin accurate to within 0.15mm.
Does the machine support bulk cutting?
Yes, it utilizes a single saw blade linear running method that is capable of cutting dozens or even hundreds of glass tubes and rods in a single process.
Is it easy to operate for different specifications?
The machine offers both automatic and manual operation interfaces, providing flexibility for processing products with non-uniform specifications.
How does the cooling system work?
It is equipped with a circulating cooling water supply and a separate water tank, which effectively reduces glass powder pollution and minimizes water consumption.
What are the raw material size limitations?
The machine accepts raw materials with lengths ranging from 100mm to 2000mm and diameters between Φ5mm and Φ30mm.
