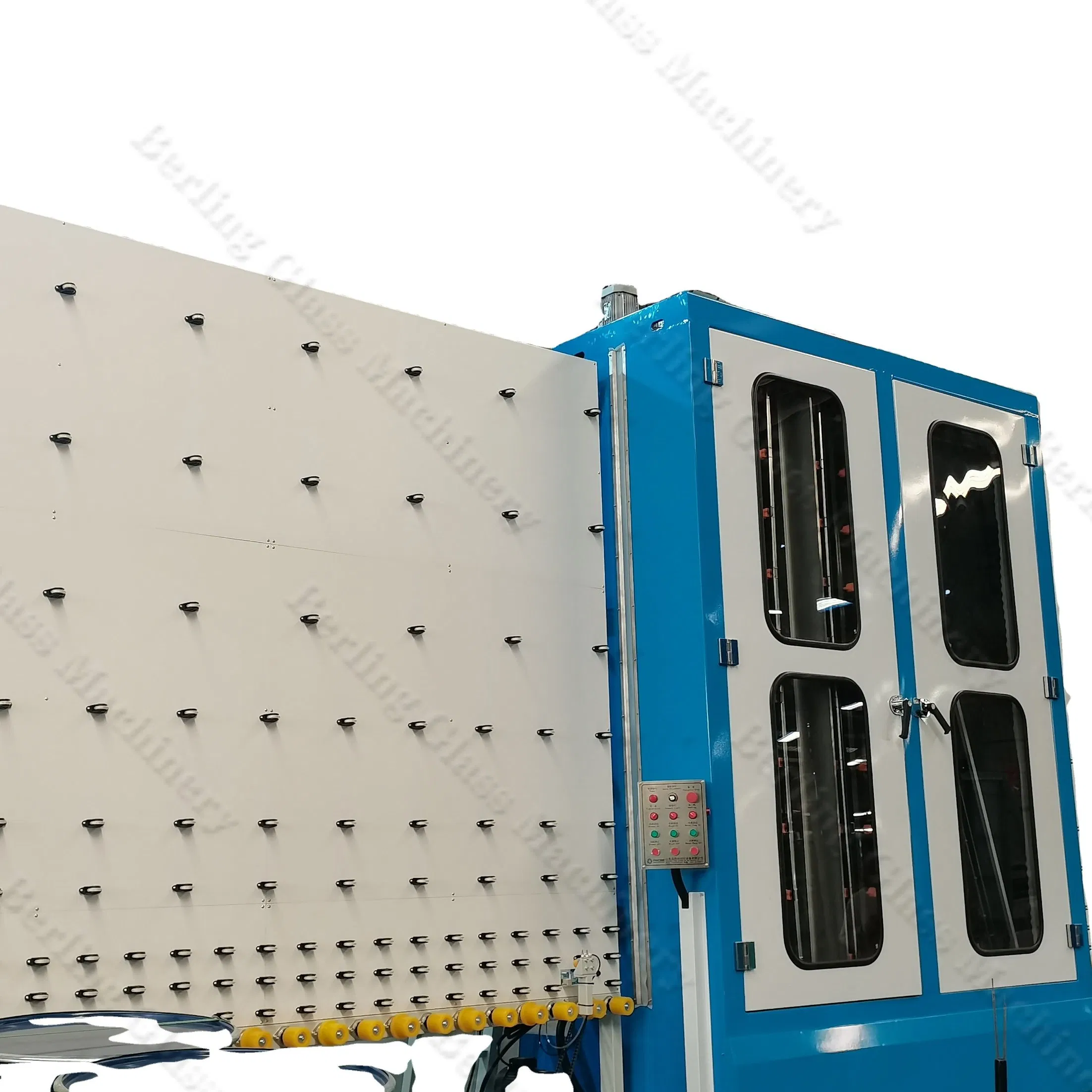

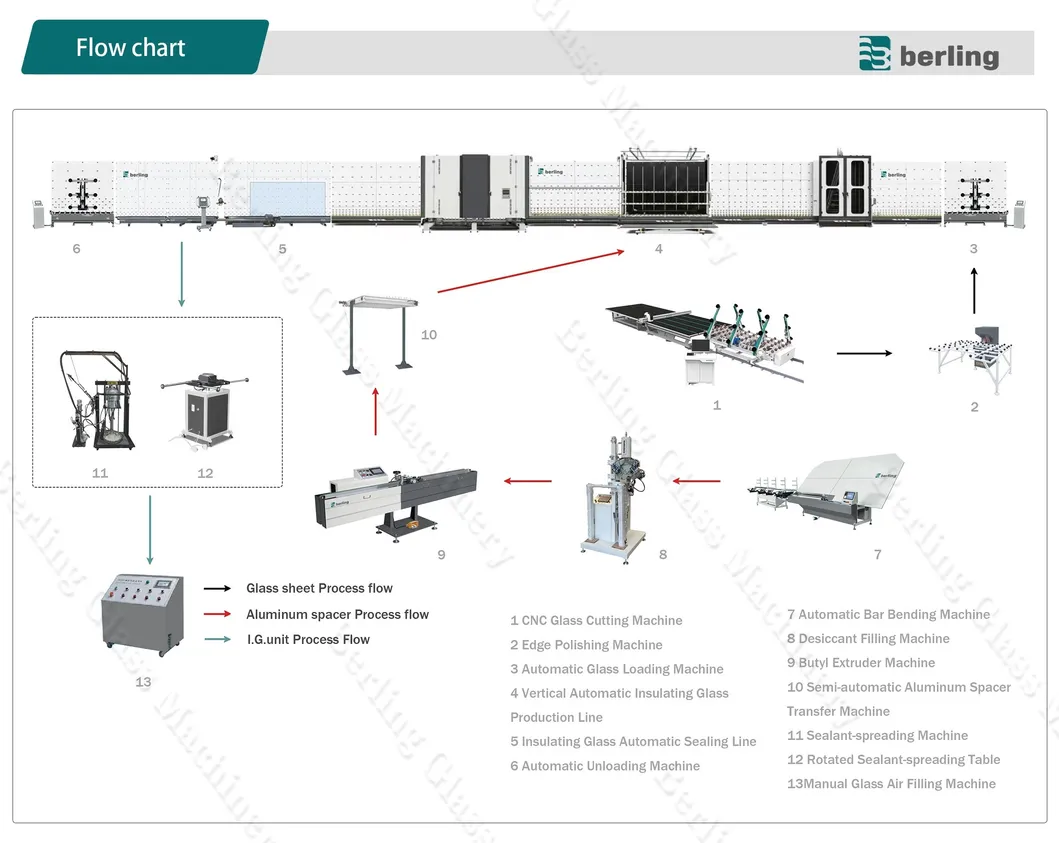

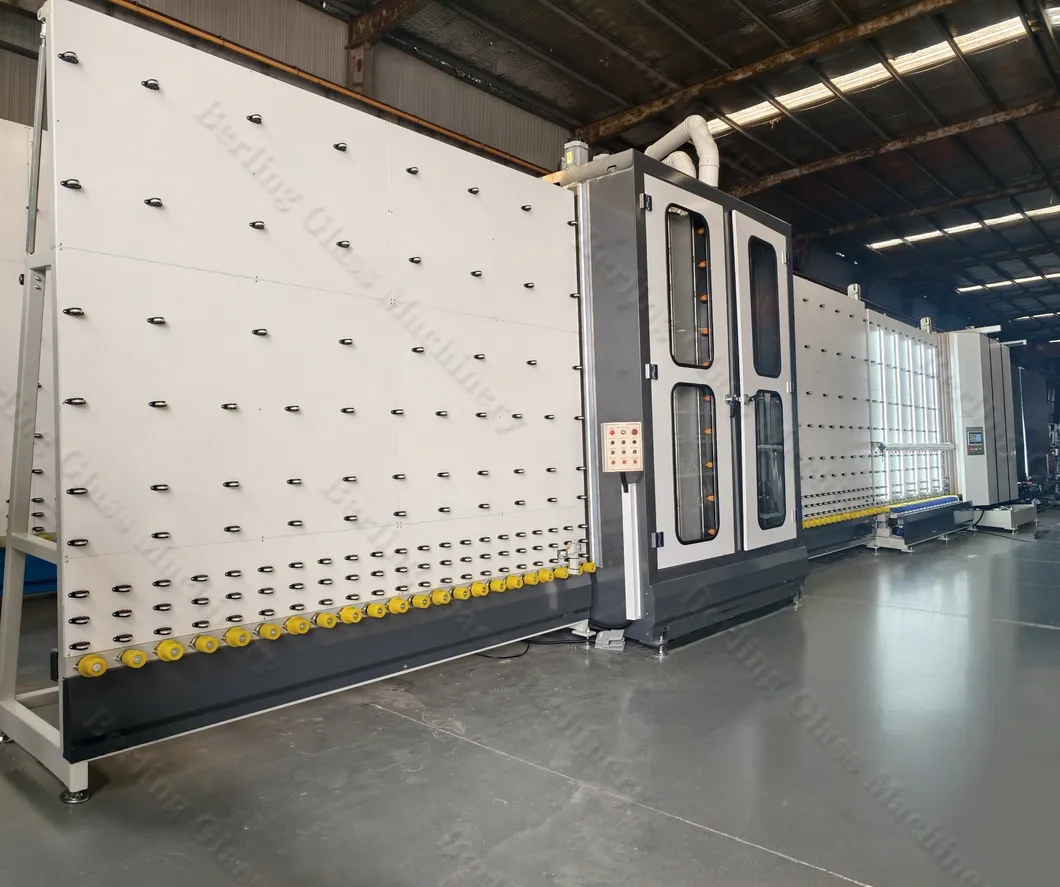

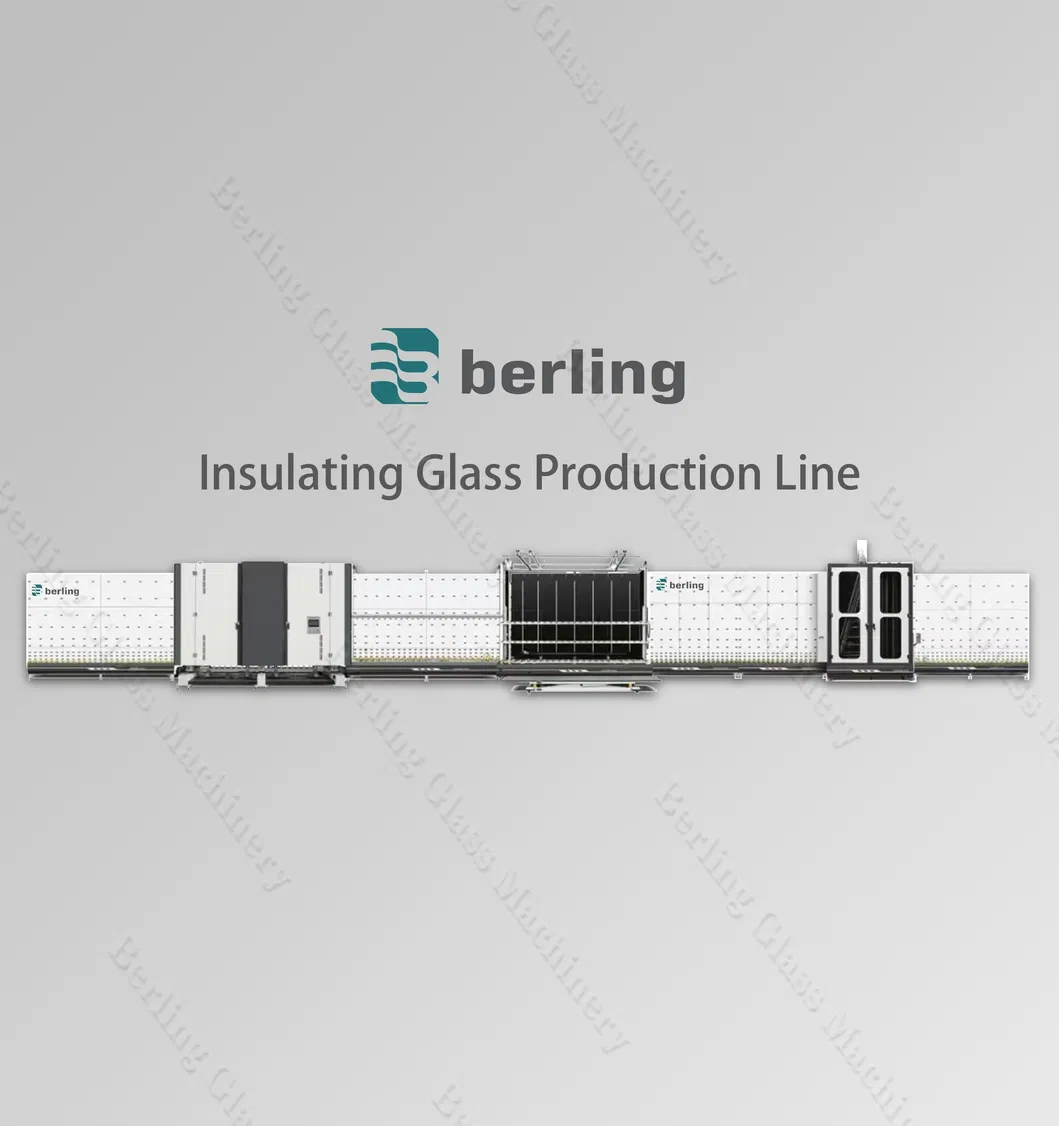

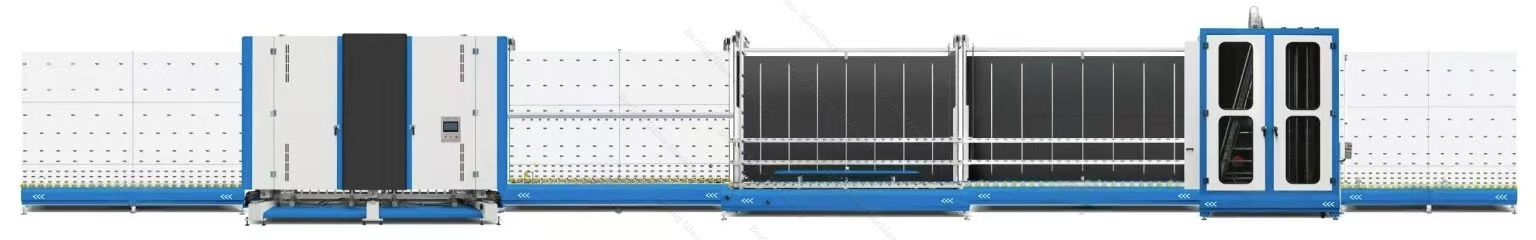

High quality technologies are applied to manufacture the highest performing insulating glass units such as double glass, triple glass, and structural glass facade units used in windows and curtain walls. From standalone glass washing machines to complete glass washing lines with servo motor driven automatic argon gas filling panel press systems, we offer modular and flexible solutions for efficient production.
| Item | BLBG3060 | BLBG2850 | BLBG2540 | BLBG2030 |
|---|---|---|---|---|
| Total power | 90KW | 70KW | 46KW | 36KW |
| Max glass size | 3000*6000mm | 2800*5000mm | 2500*4000mm | 2000*3000mm |
| Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm |
| Panel thickness | 3~30mm | 3~12mm | 3~12mm | 3~12mm |
| Max IG unit thickness | 12~80mm | 12~80mm | 12~40mm | 12~40mm |
| Working Speed | 2-45m/min | 2-45m/min | 2-45m/min | 2-40m/min |

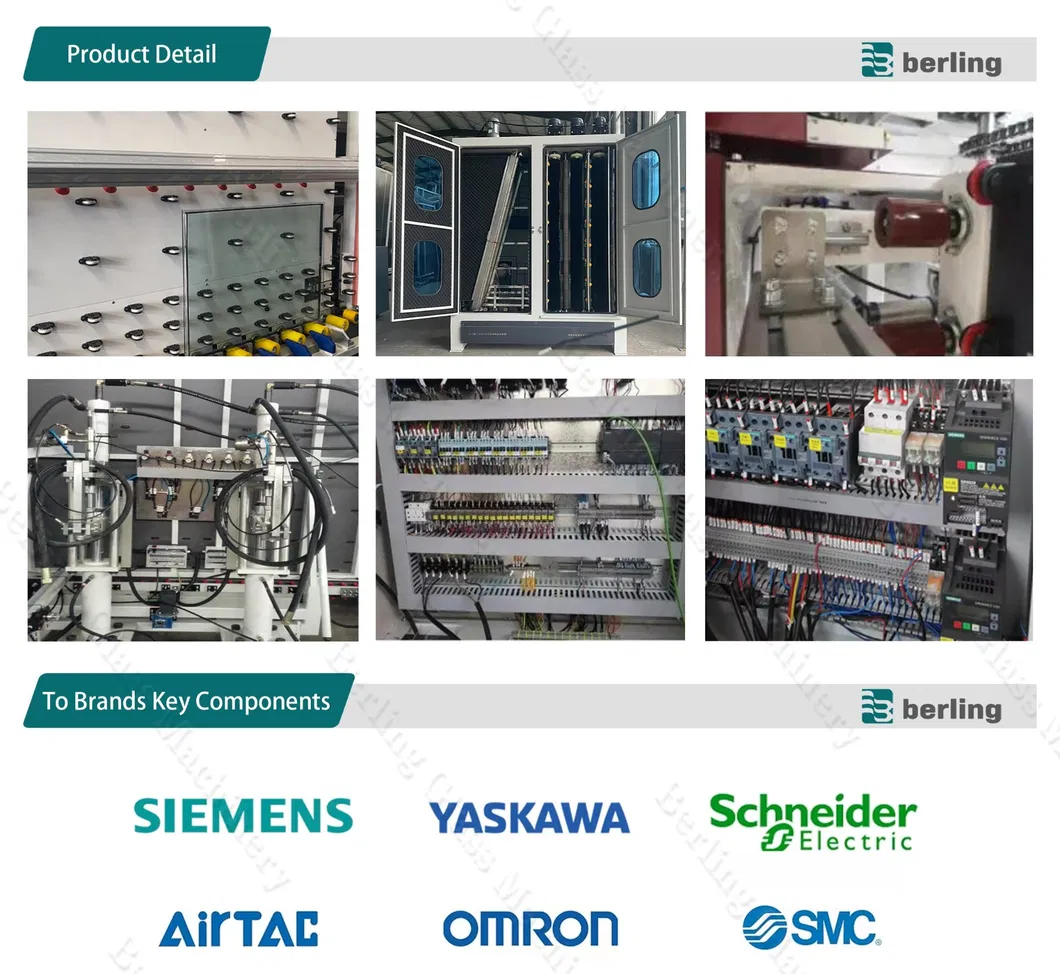

The entire machine adopts PLC control with a touch screen man-machine interface. It features an automatic diagnosis system for Low-E glass and adopts oil water-proof bearings in the washing section. It is designed to produce double glazing, triple glazing, and shaped insulating glass efficiently.
1. Supports assembling outside and inside for unequal and overlong glass.

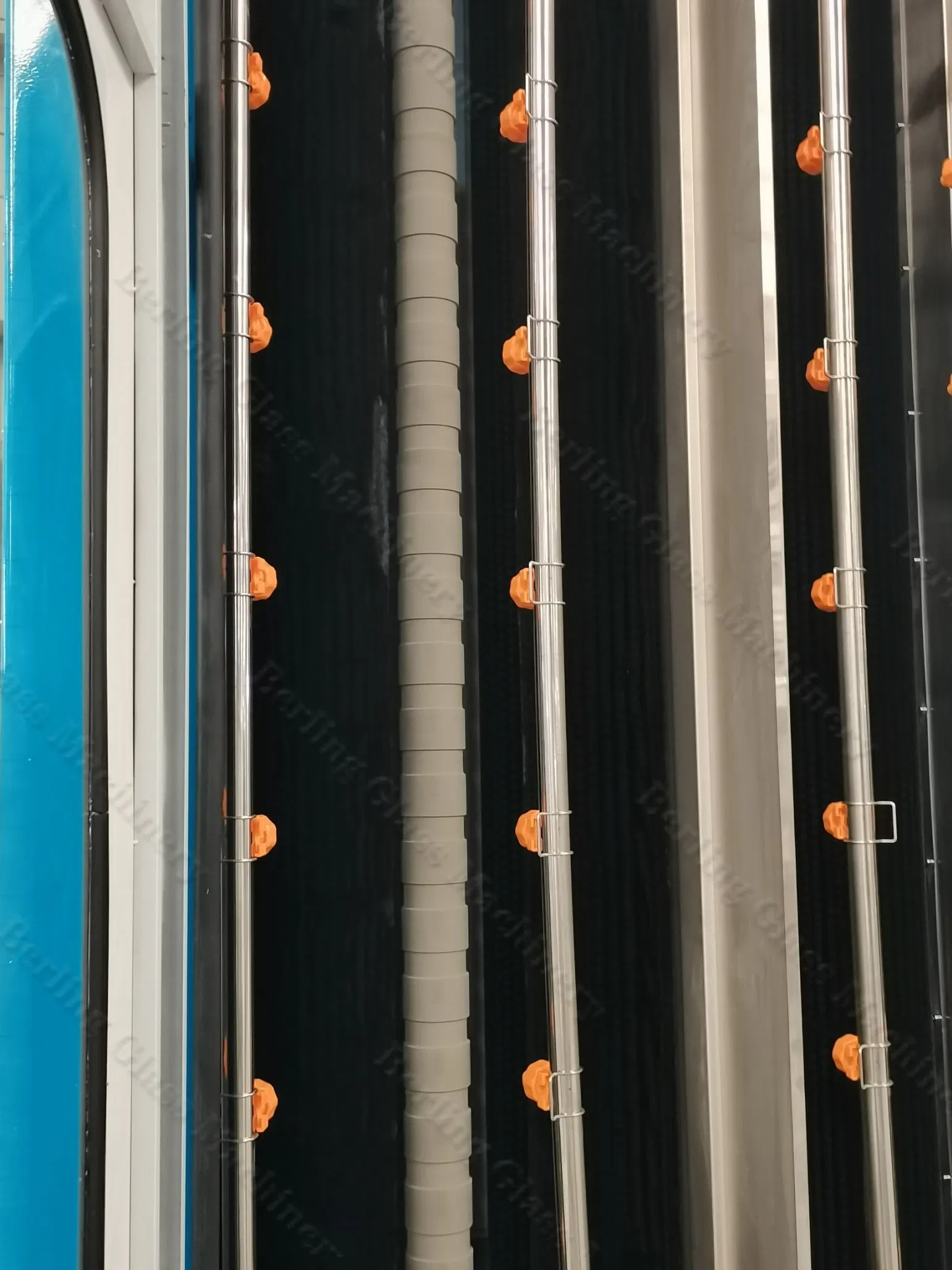

2. Brushes can wash coating glass and Low-E glass via variable frequency drive.

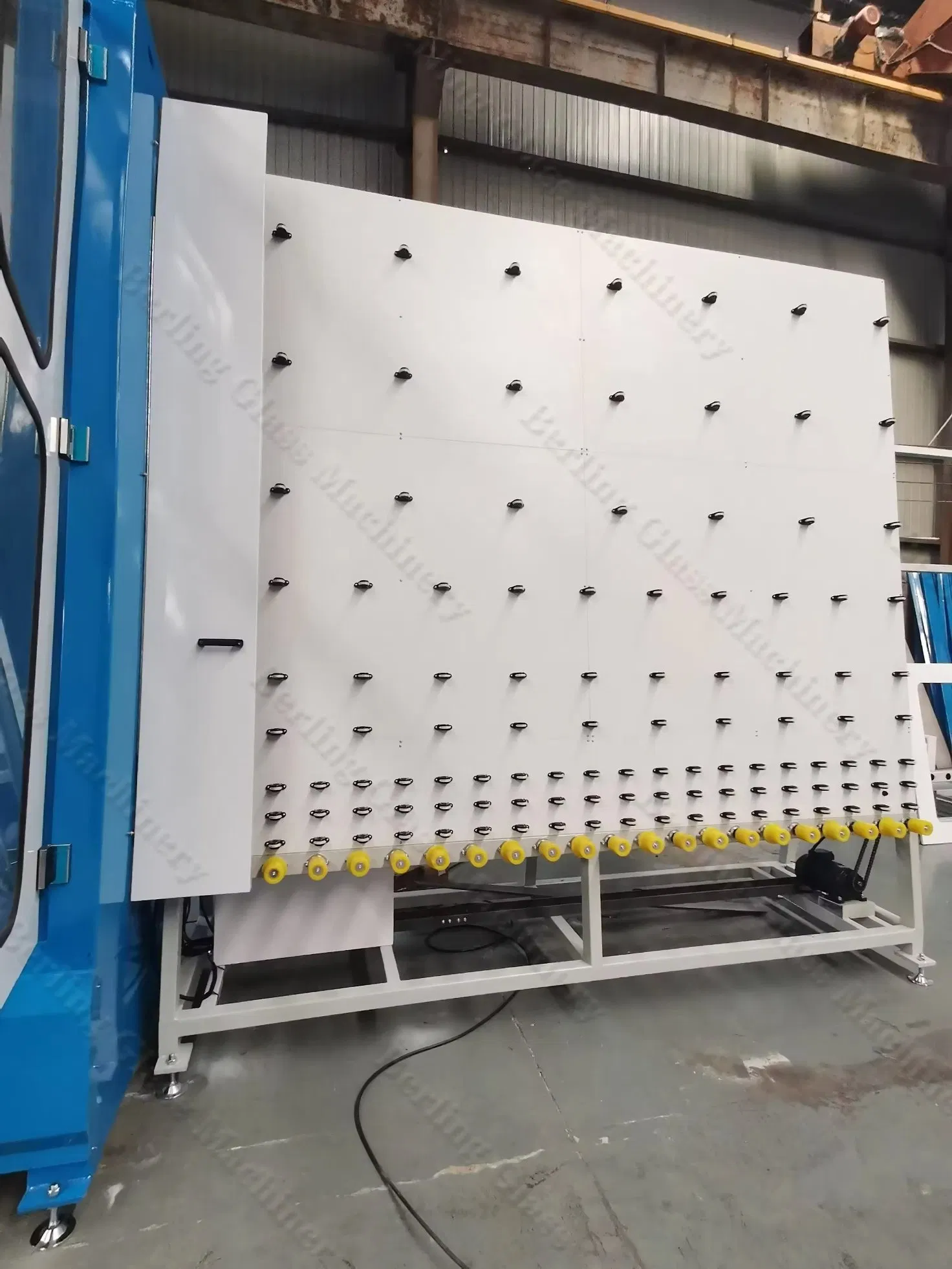

3. Hydraulic pressure provides power for the flat press section, opening up to 450mm for maintenance.
4. Automatic energy-conservation discontinuity system allows sections to enter intelligent dormancy when not in use.
