| Model NO. | LZK2500G |
|---|---|
| Glass Thickness | 3-19 mm |
| Function | Making Double Layer Insulating Glass, Triple Layer |
| Warranty | 18 Months |
| Product Name | Double Glazing Glass Equipment |
| Input Power | 46kw |
| Power Supply | 380V 50 Hz |
| Max. Glass Size | 2500*4000 mm / 2500*3500mm |
| Min. Glass Size | 280*450 mm |
| Thickness of Insulated Glass | 12-50 mm |
| Packaging | One 40 GP and One 20 GP |
| Production Capacity | 100 Sets / Year |

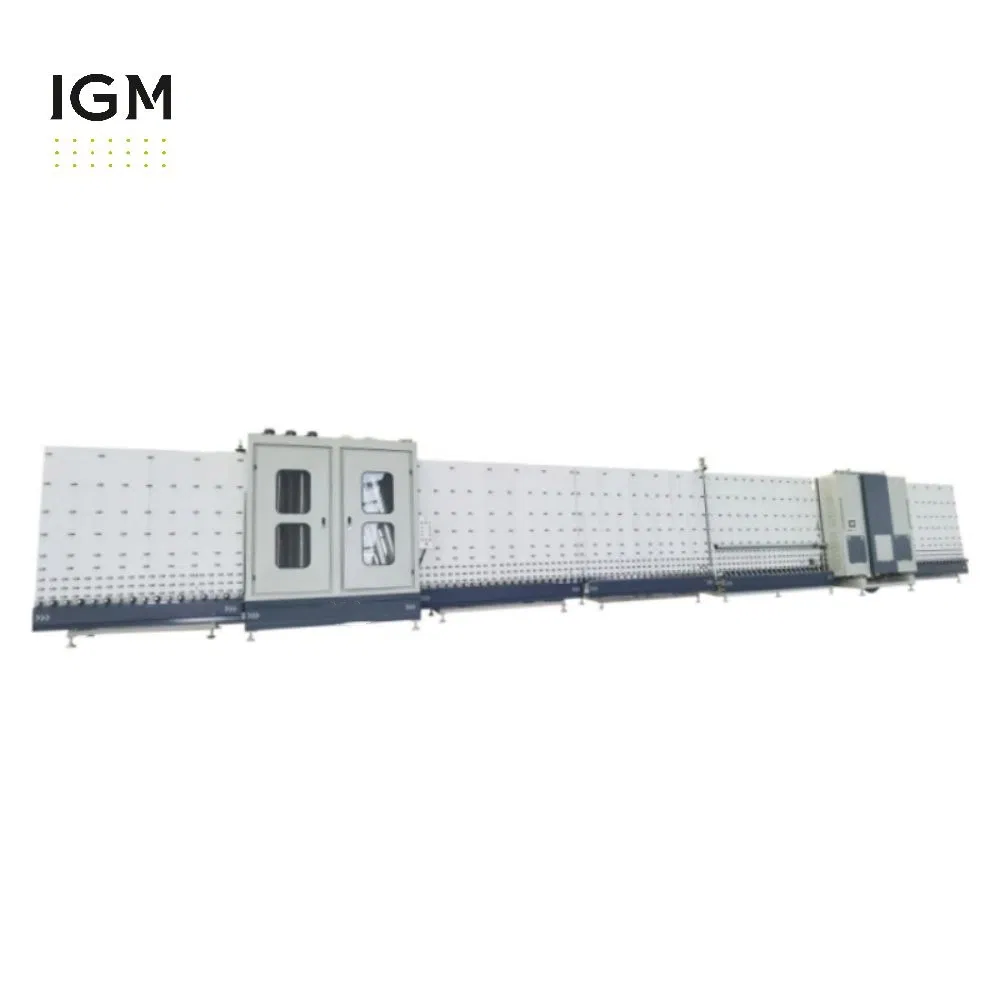

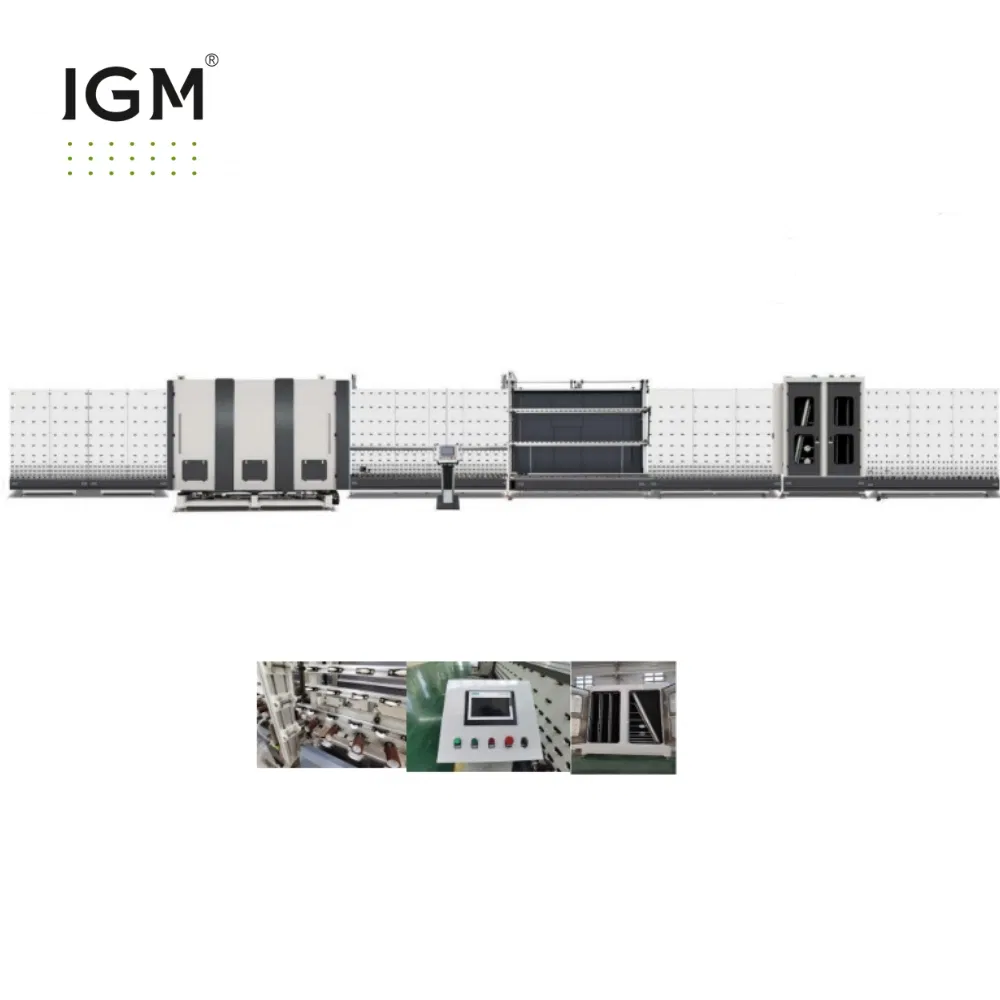

Gas Filling Automatic Double Glazing Glass Equipment Glass Production Line
Model: LZK2500G
Function: Making double layer insulating glass, triple layer insulating glass and other special-shaped glass.

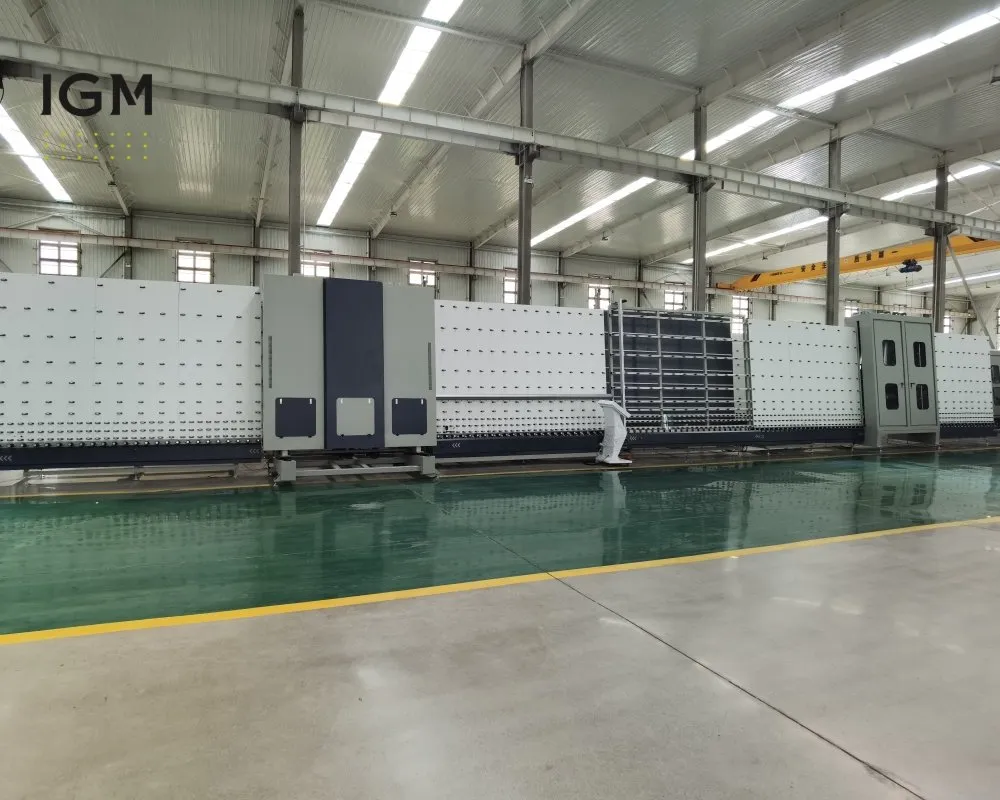

The gas filling insulating glass production line is equipped with argon gas charging function, mainly composed of an input section, high-performance stainless steel washing-drying section, glass transmission section, aluminum spacer assembly, glass assembly, press inflatable section, and output section. It realizes high-efficiency inflation of inert gas (argon) for double-layer and triple-layer insulating glass.
| Working Air Pressure | 0.8 -1 Mpa |
|---|---|
| Glass Washing Speed | 2-12 m/min |
| Working Speed | 2-45 m/min |
| Overall Size | 25300*3600*3200mm |
| Weight | 4000 kgs |

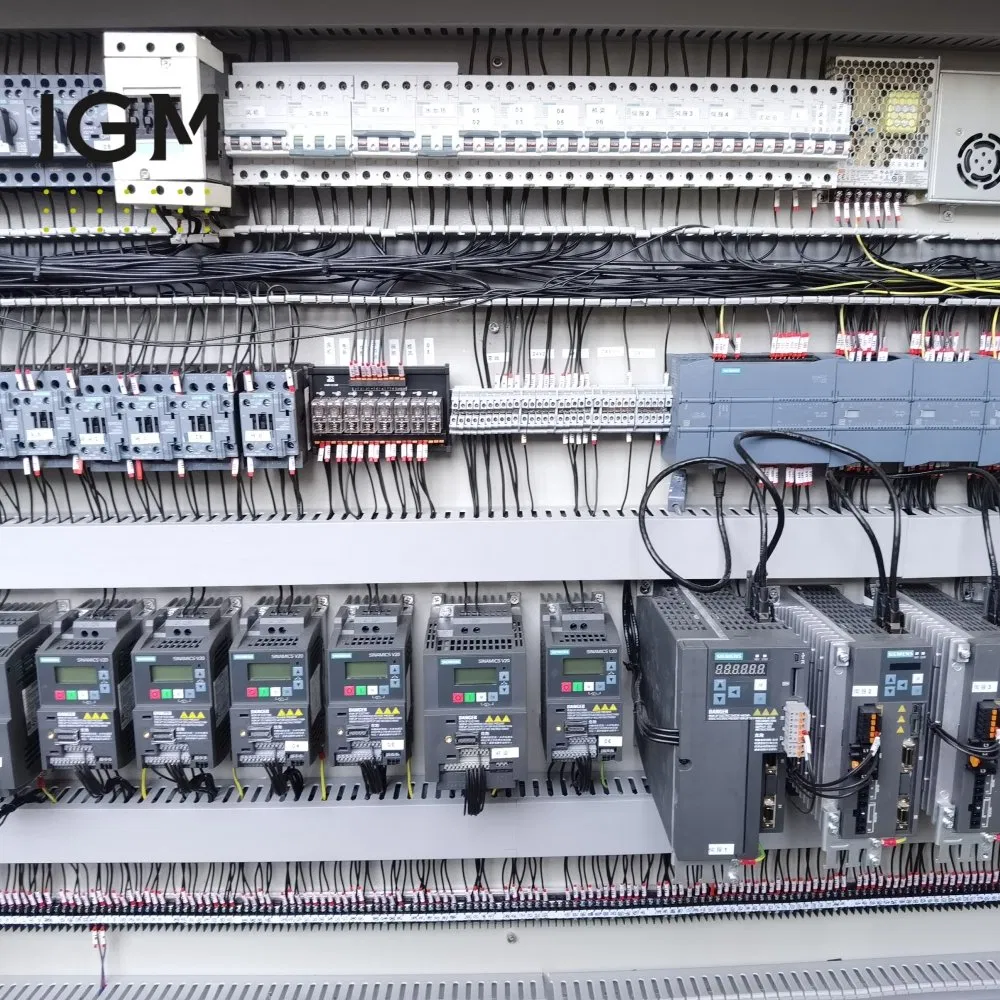

| PLC Brand | SIEMENS |
| Servo Motor | SIEMENS |

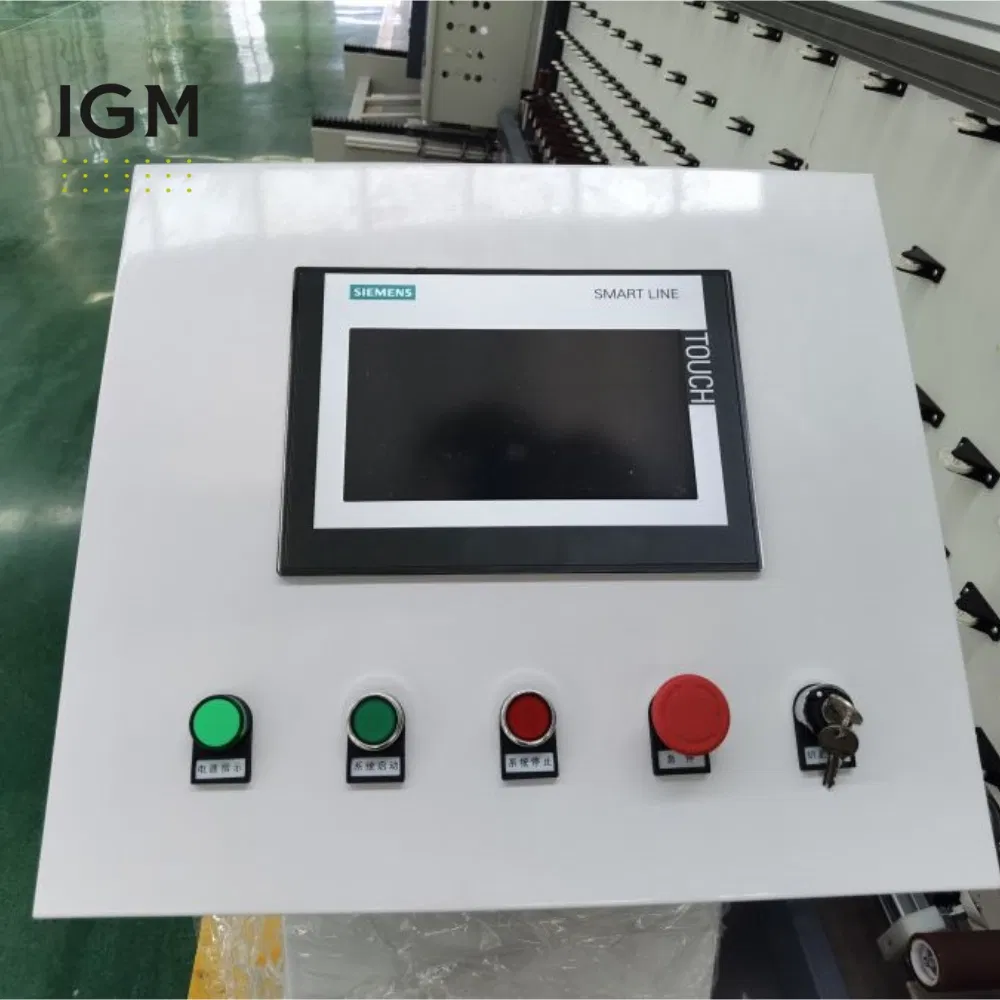

| Touch Screen | SIEMENS |
| Photoelectric Switch | Omron |

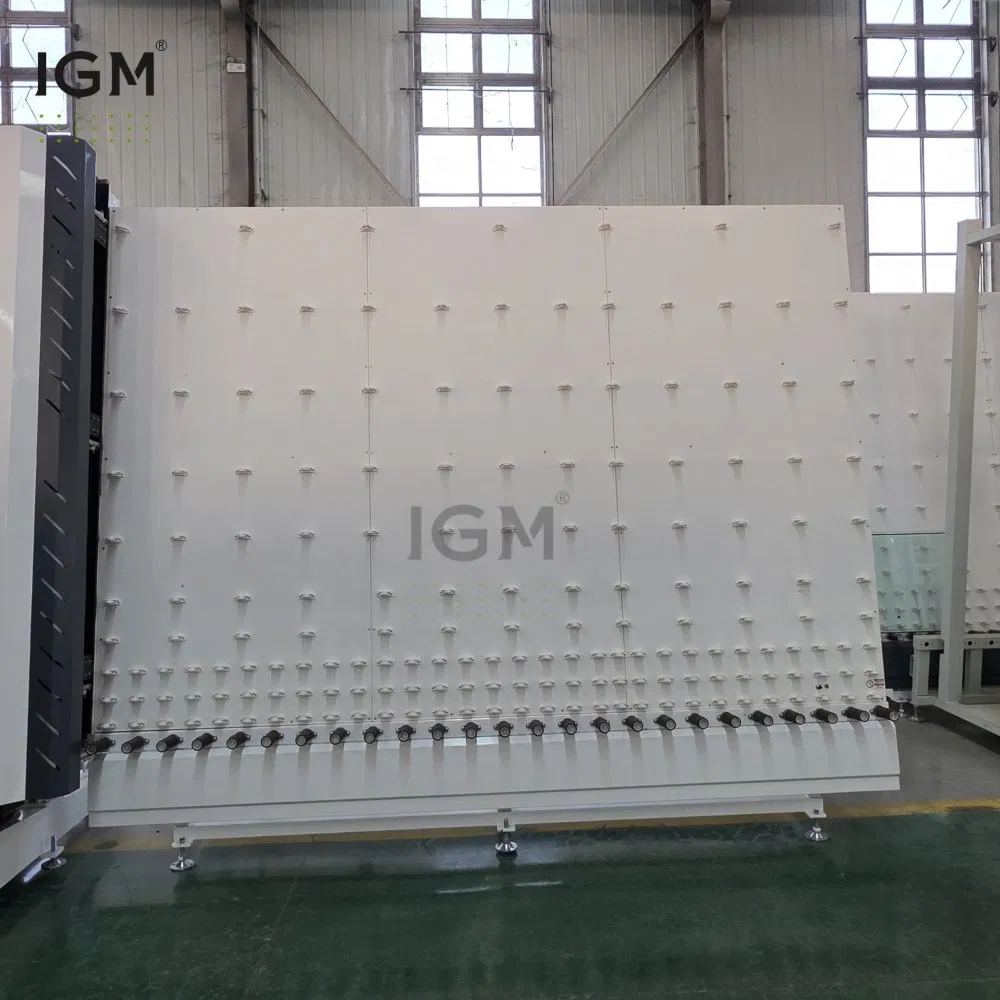

01 Section: Glass loading & Low-E detection

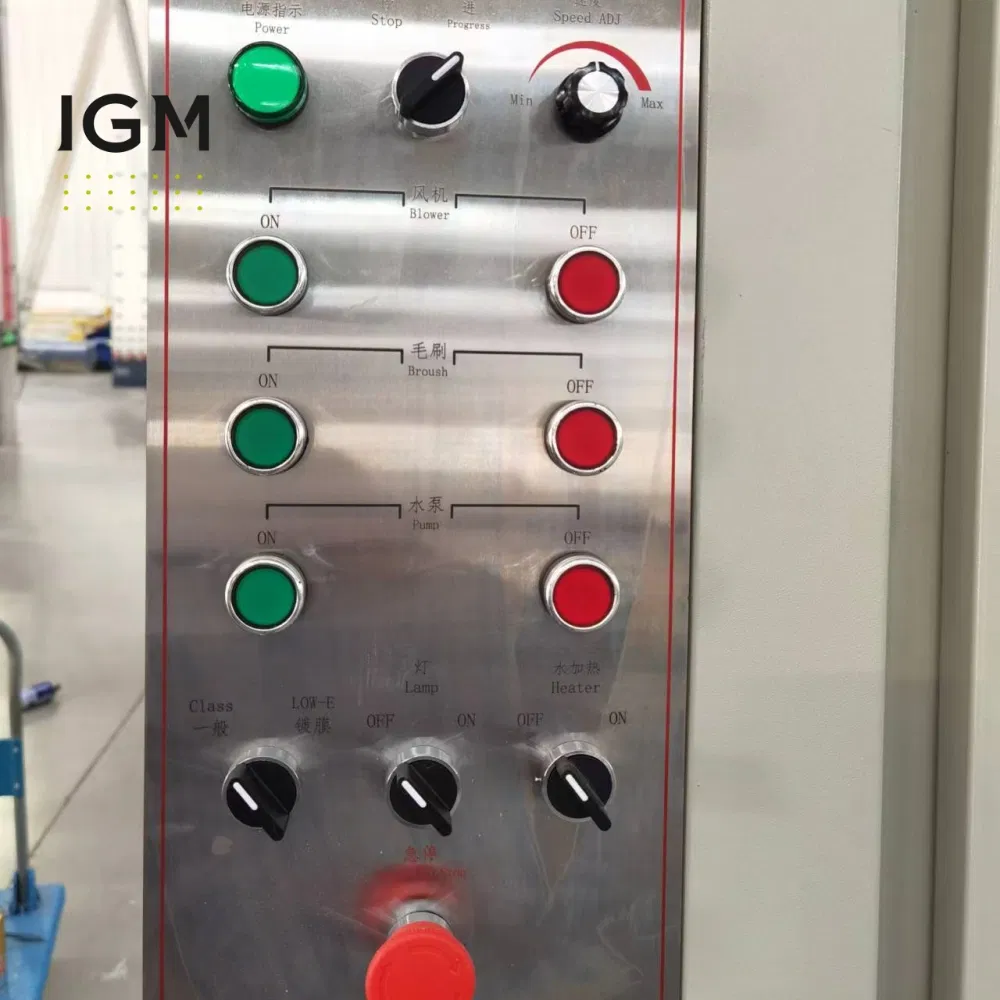

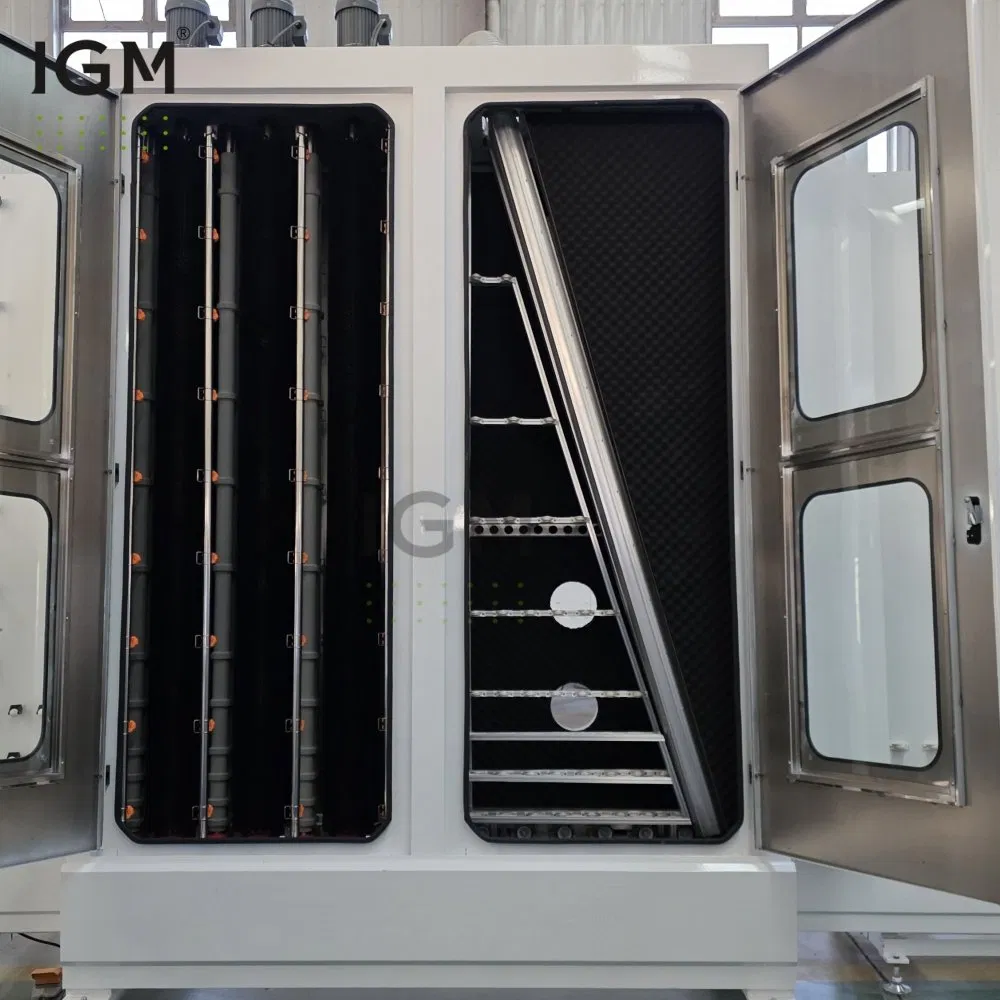

02 Section: Washing & Quick drying

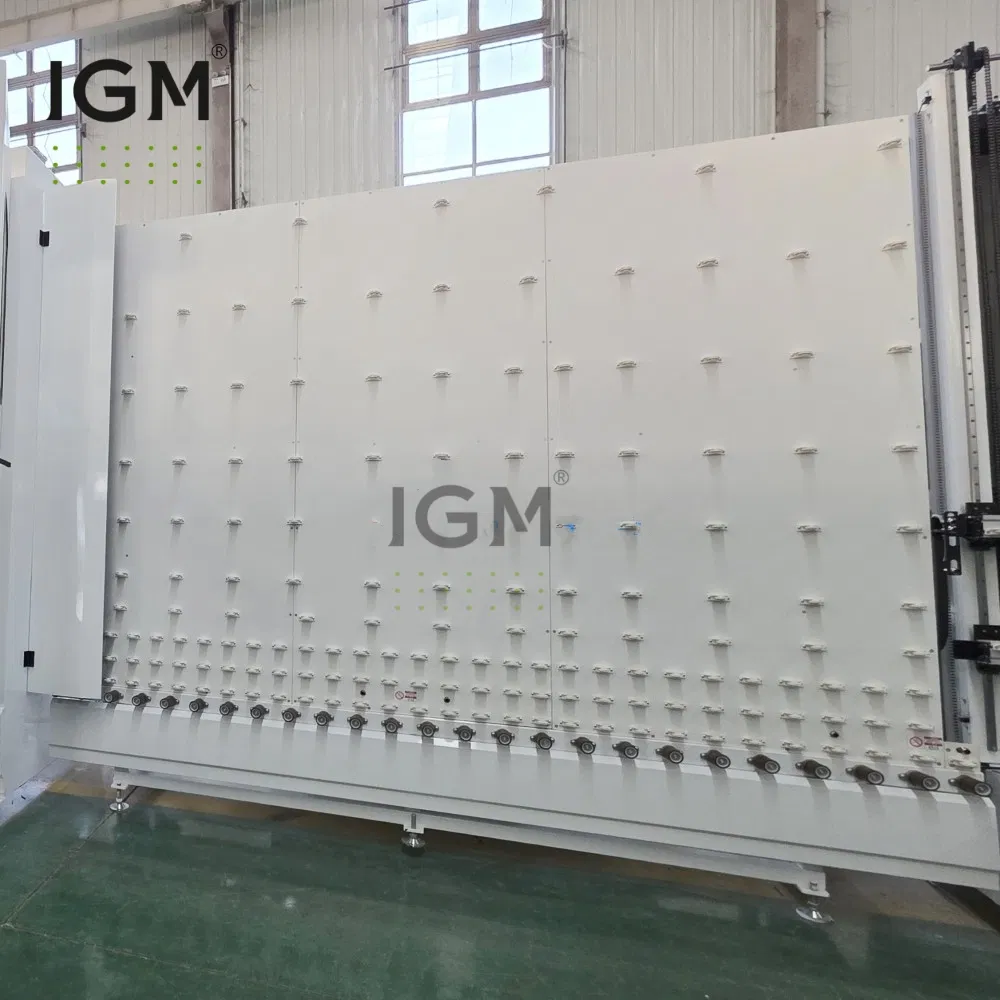

03 Section: Glass conveying

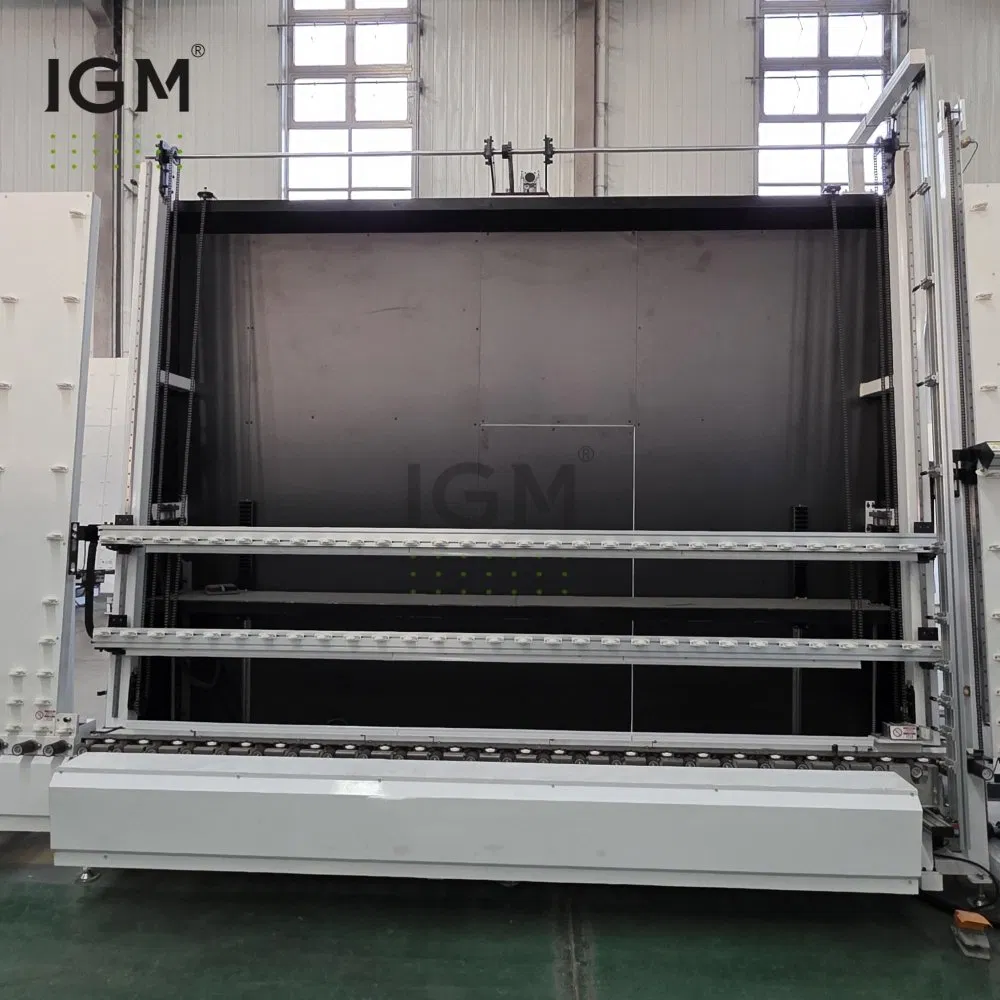

04 Section: Spacer assembly

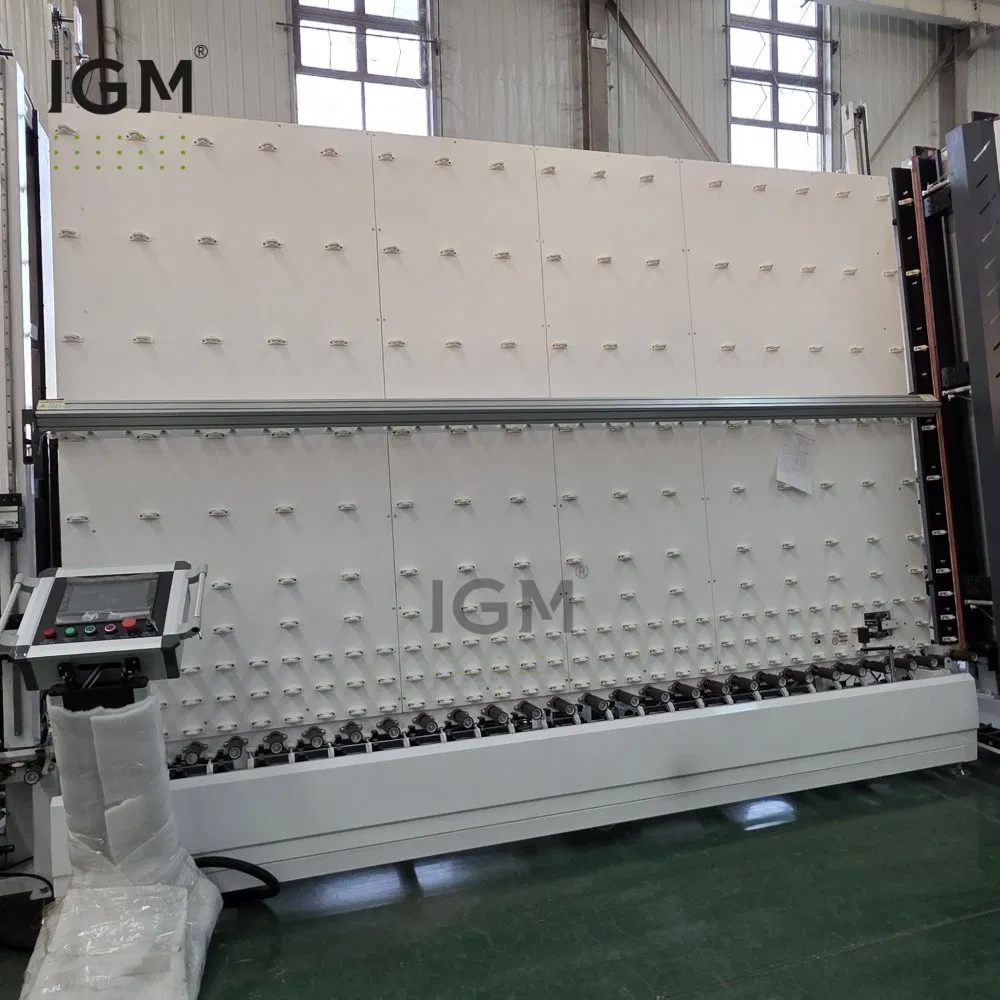

05 Section: Glass assembly

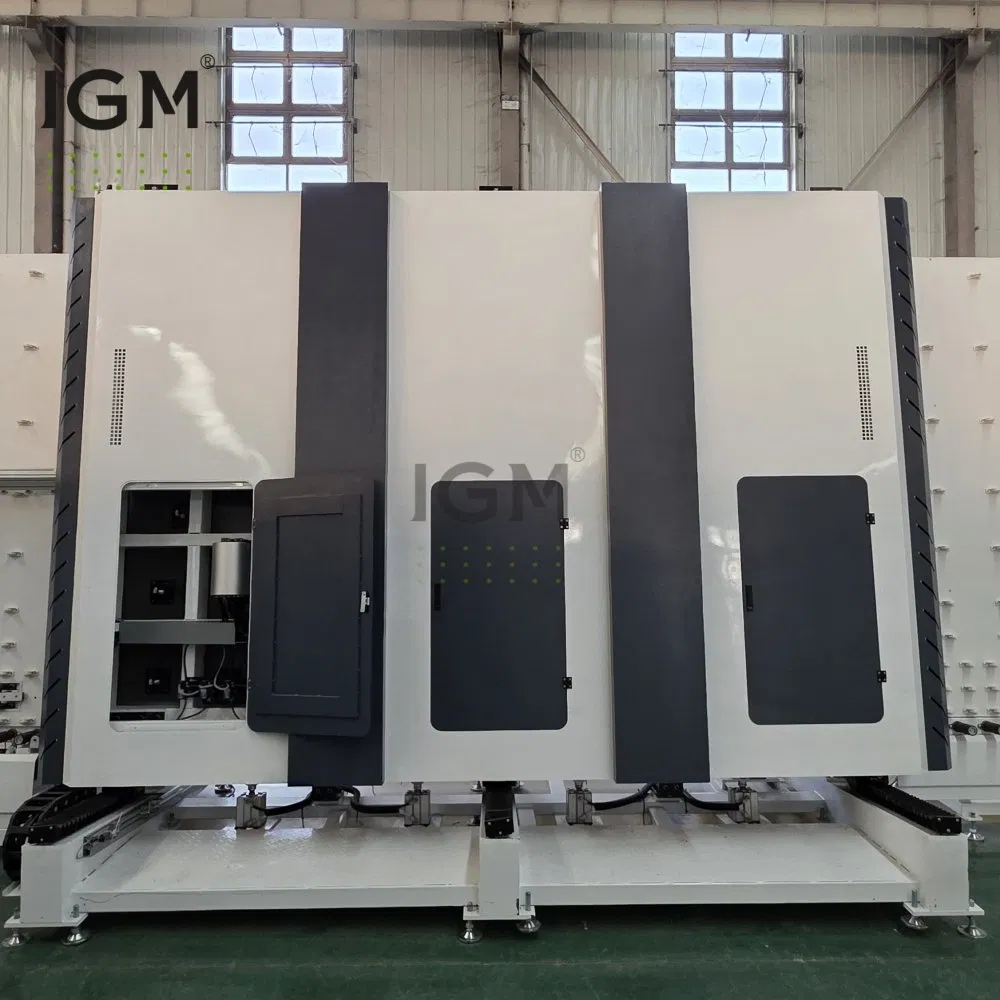

06 Section: Pressing & Gas filling
Equipment needs to be loaded into a 40GP container and a 20GP container. We utilize container space rationally to ensure machine safety and save transportation costs.
1. Technical Capability: R&D team with 15-20 years of industry experience; annual R&D investment of 10%-15% of profits.
2. Quality & Reliability: International quality certifications (ISO/BV) with low failure rates and long service life.
3. Production Efficiency: 15,000 sqm factory with ERP management for optimized procurement and delivery.
4. Customization: Ability to provide tailored solutions based on specific customer process requirements.
