Model: LZK2500G

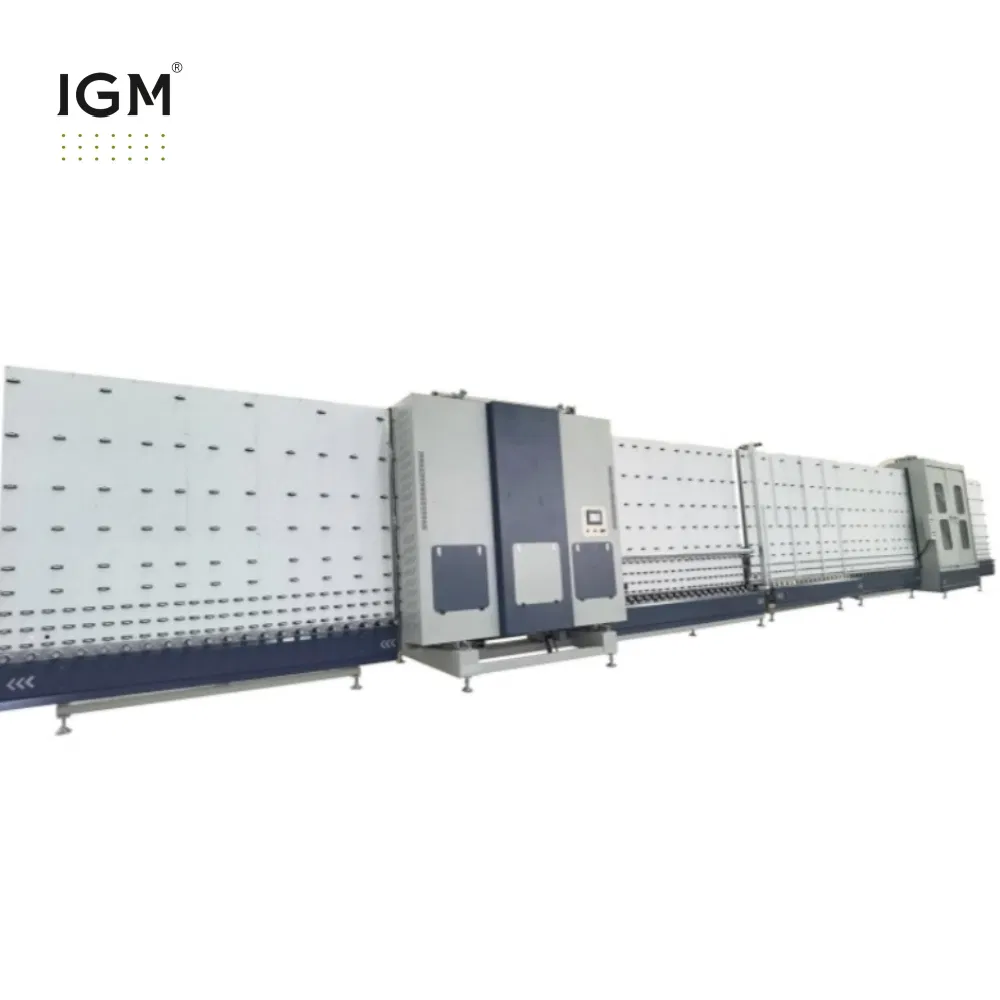

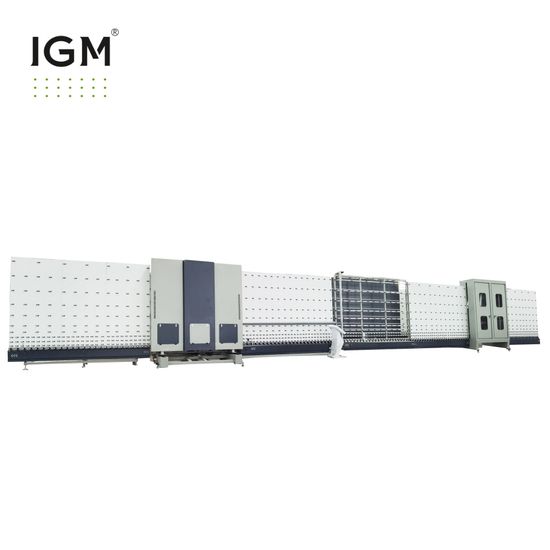

This advanced production line is equipped with an argon gas charging function, featuring a high-performance stainless steel washing-drying section, precise glass transmission, and automatic assembly sections for aluminium spacers and glass layers.
| Technical Parameters | |
|---|---|
| Working Air Pressure | 0.8 -1 Mpa |
| Power Supply | 220V /380V / 415V (Customized) |
| Max Glass Size | 2500*4000mm |
| Min. Glass Size | 300*300mm |
| Original Glass Thickness | 3-12mm |
| Max Double Glazing Thickness | 12-50 mm |
| Inflating Time | 2-10s |
| Glass Washing Speed | 2-12 m/min |
| Working Speed | 2-45 m/min |
| Overall Size | 25300*3200*3600mm |
| Component | Brand |
|---|---|
| PLC / Servo Motor / Touch Screen | SIEMENS |
| Photoelectric Switch | Omron |
| Low-voltage Electrical | Famous French Brand |
| Negative Pressure Gauge | Famous German Brand |
| Guide | CSK |
| Roller Screw | Taiwan Brand |

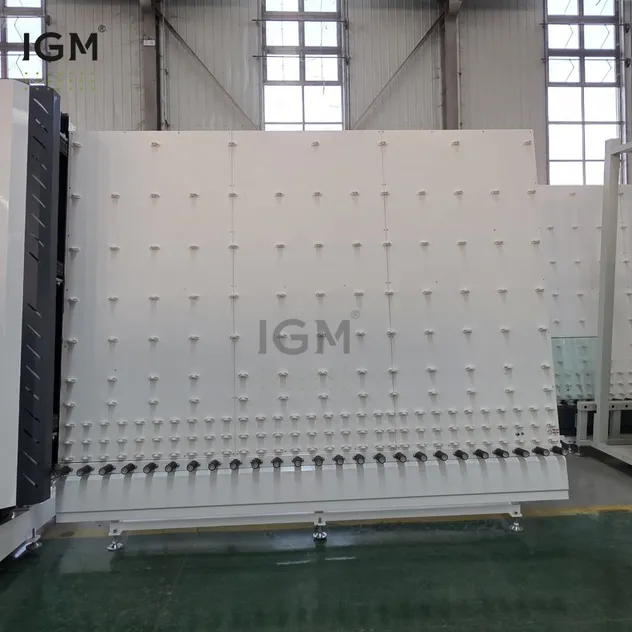

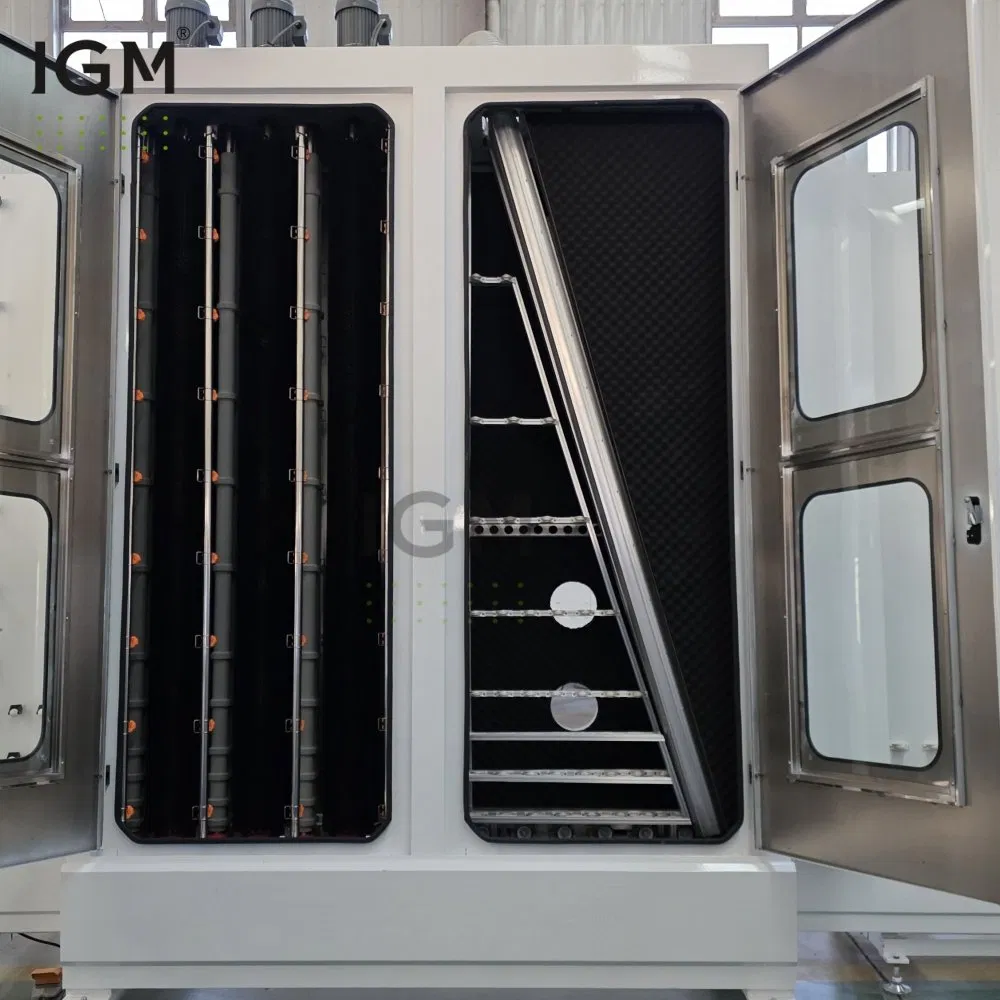

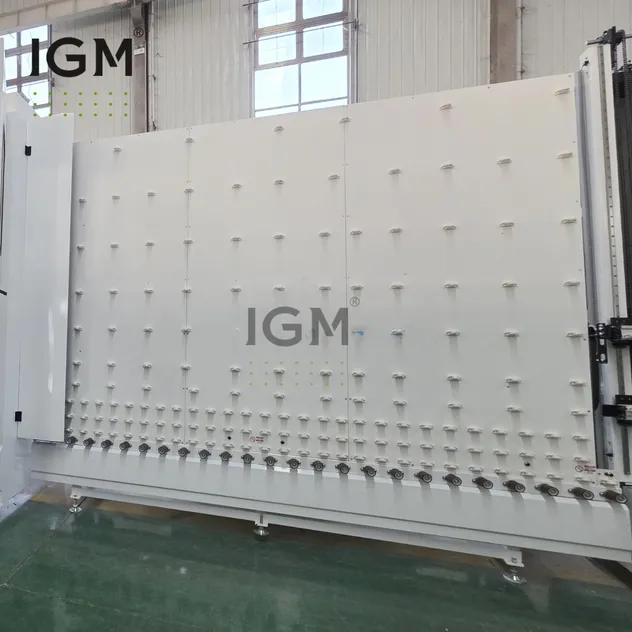

01-03 Sections: Glass loading with Low-E detection, high-speed washing/drying, and conveying with waiting function.

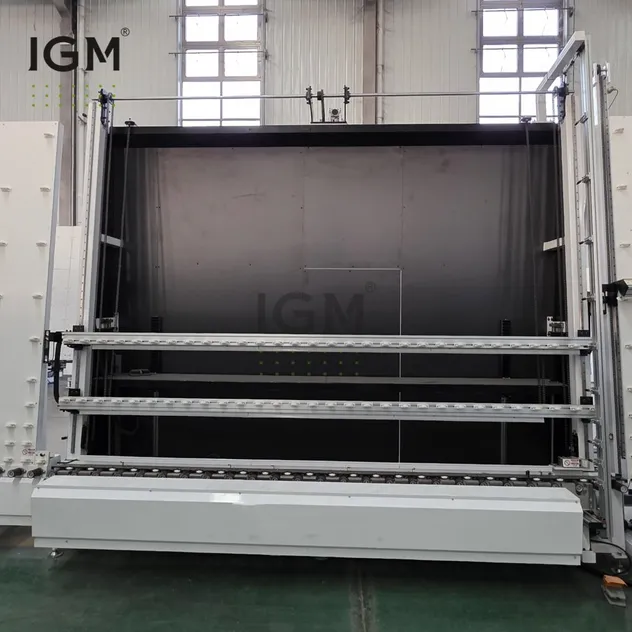

04-06 Sections: Aluminum spacer assembly, automatic glass assembly for double/triple glazing, and high-precision pressing with >95% argon gas inflation.

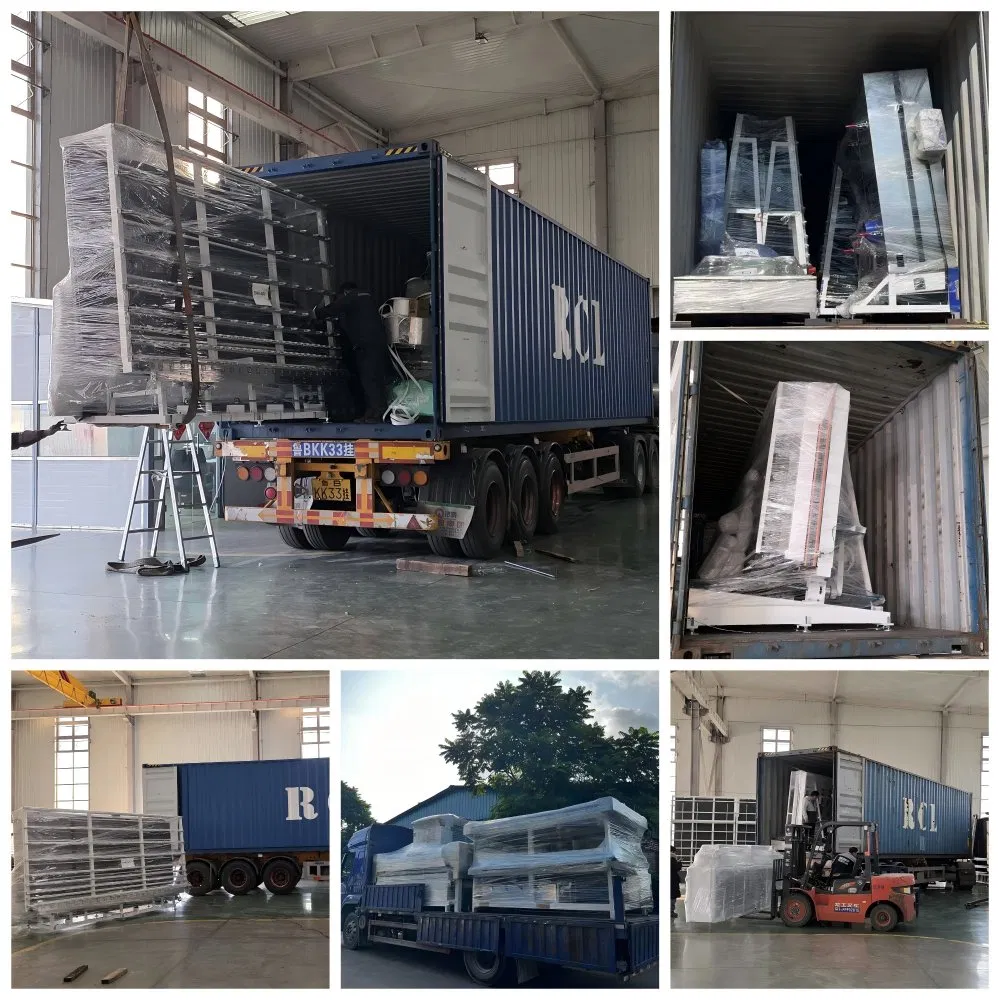

LCL: Machines are packed in fumigation-free plywood with thickened pallets and steel wire fixation.
FCL: Machines are wrapped in plastic film and secured in 20/40-foot containers. Open-top cabinets are used for extra-high units.
