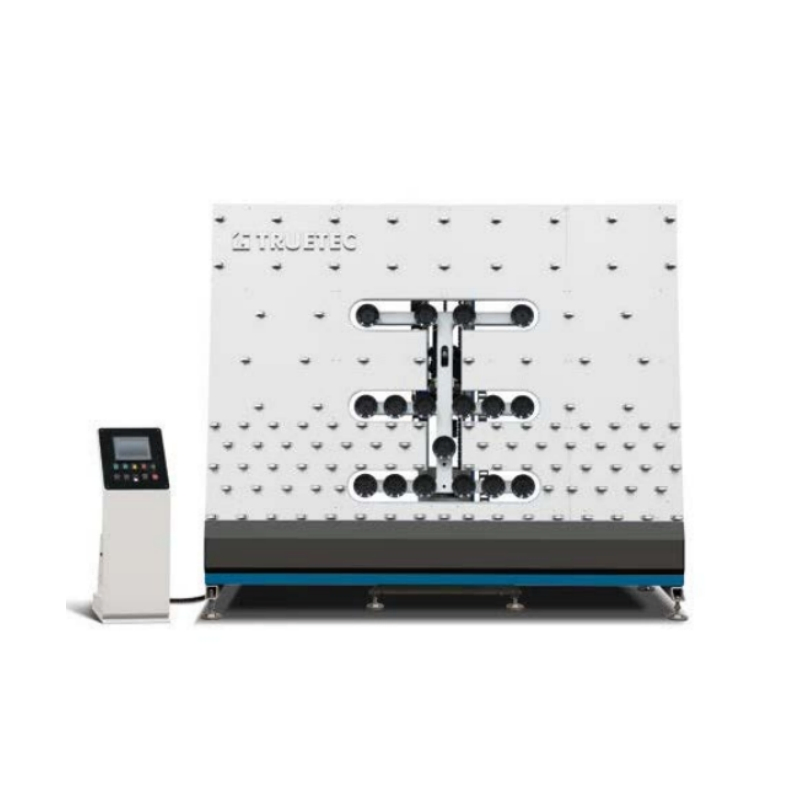

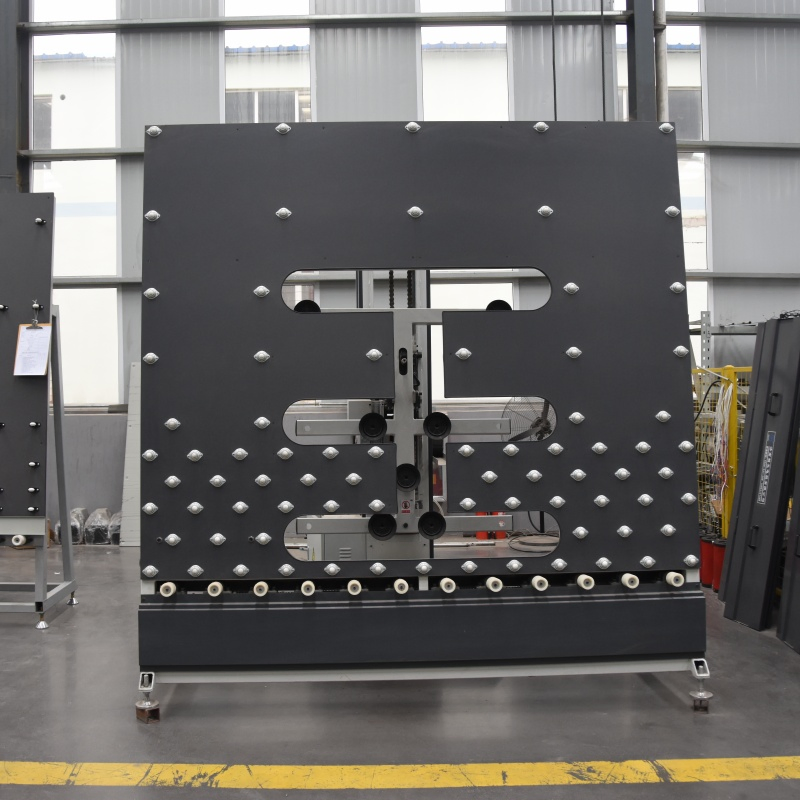

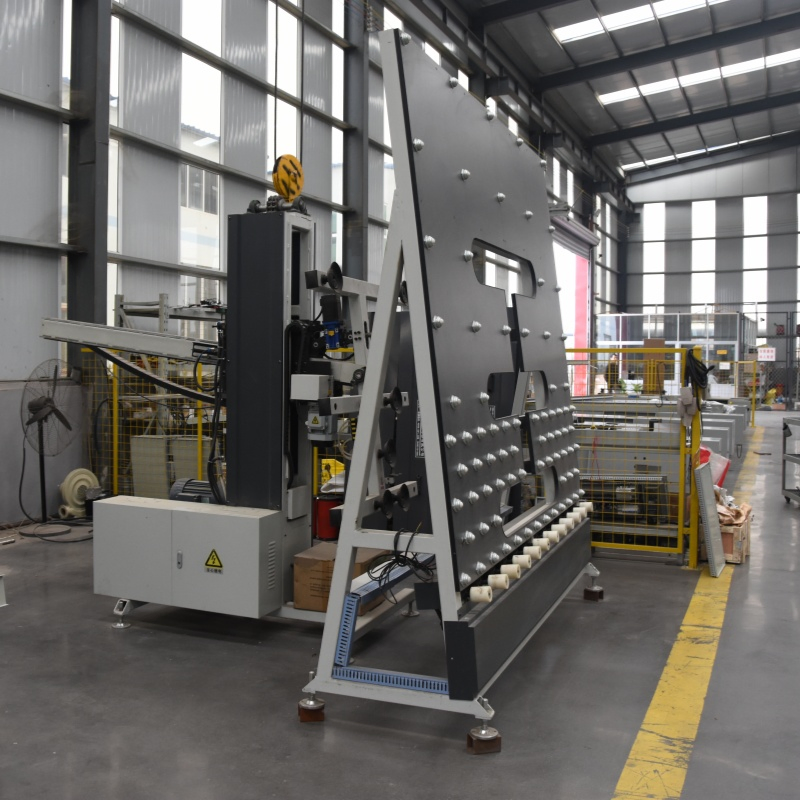

Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
1 / 5
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine
Glass Assembly Line Feeder Vertical Automatic Loading Machine

Glass Assembly Line Feeder Vertical Automatic Loading Machine

Customization: Available
After-sales Service: 12 Month
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info
Model NO.
JYX-2025
Condition
New
Certification
CE
Automatic Grade
Automatic
Voltage
380V
Input Power
28kw
Air Pressure
0.5-0.8MPa
Max. Glass Size
2000*2500mm
Min. Glass Size
400*400mm
Glass Thickness
3-12mm
Transfer Speed
14-23s/P
Weight
5000kg

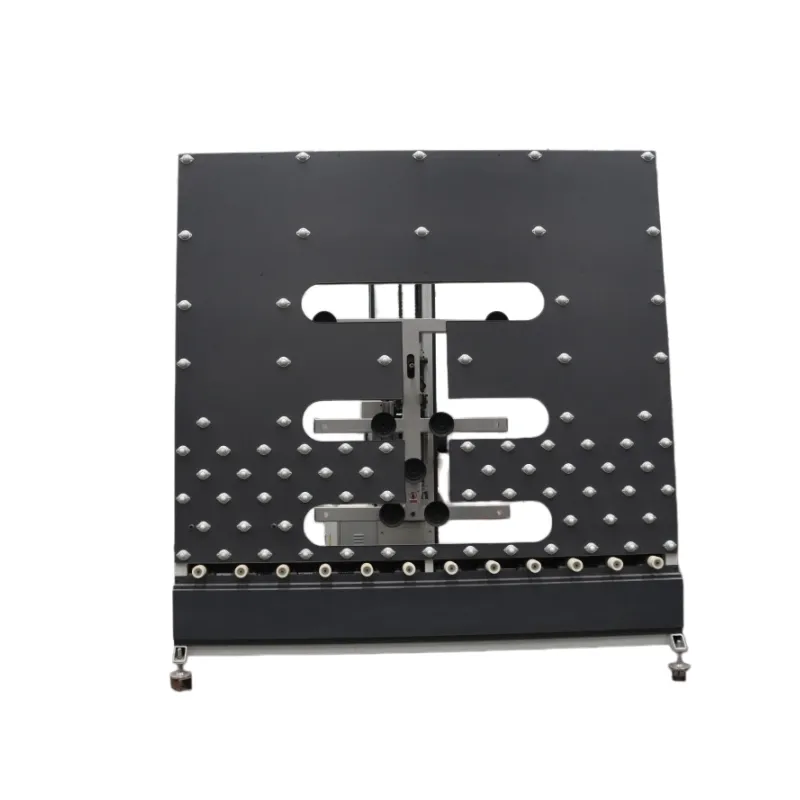

Vertical Automatic Loading Machine
Vertical Automatic Loading Machine
1
Flip mode: Adopts advanced servo motor for flipping. Stable running speed, stops at any angle, suitable for 3-10mm insulating glass.
2
Film loading angle: Adjustable from 0 to 15 degrees vertically to meet various glass shelf requirements.
3
Film suction depth: Supports depth up to 900mm directly from the glass frame without auxiliary frames.
4
Induction device: Utilizes international brand Autonics glass induction photoelectric sensors for high safety.
5

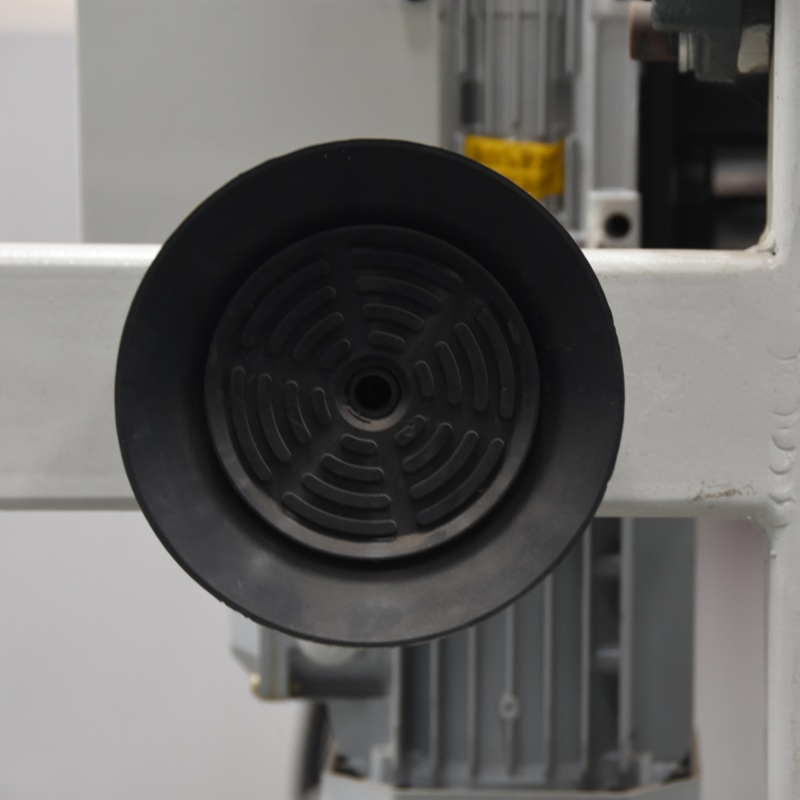

Adsorption device: Double-layer suction cup structure (inner/outer) ensures stronger hold and prevents leakage from scratches.
6
Suction cup control: Intelligent selection via display screen for working suction cup groups based on glass size.
7
Lifting device: Unique lifting program prevents glass breakage during handling.
8
Operation mode: Choose between fully automatic and manual modes for intuitive operation.
9
Operation interface: Color LCD touch screen for fast and convenient control.
10
Protection device: Equipped with proximity sensors and emergency stop switches to prevent collisions and accidents.
Technical Parameters
ModelJYX-2025
Max. size2000*2500mm
Min. size400*400mm
Thickness of glass3-12mm / 10-55mm
Speed10-20s/p / 15-25s/p
Transmit elevation height470±100mm
Machine Details

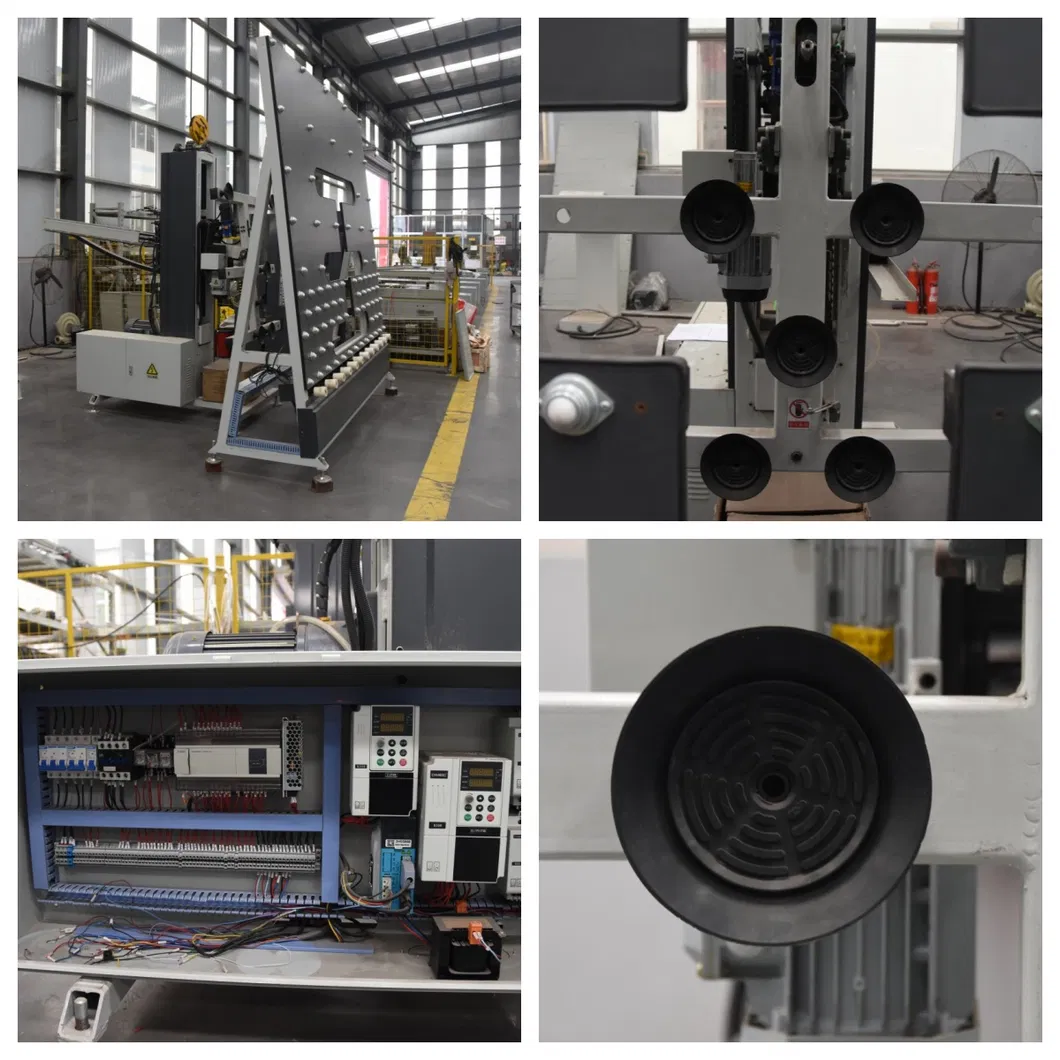

Machine detail 1
Machine detail 2
Machine detail 3
Machine detail 4

"IT'S THE BEST THAT FITS MOST"

Every machine could be customized to meet your special requirements.

Packaging & Delivery
Package Size
362.00cm * 222.00cm * 555.00cm
Package Gross Weight
5000.000kg
Packaging

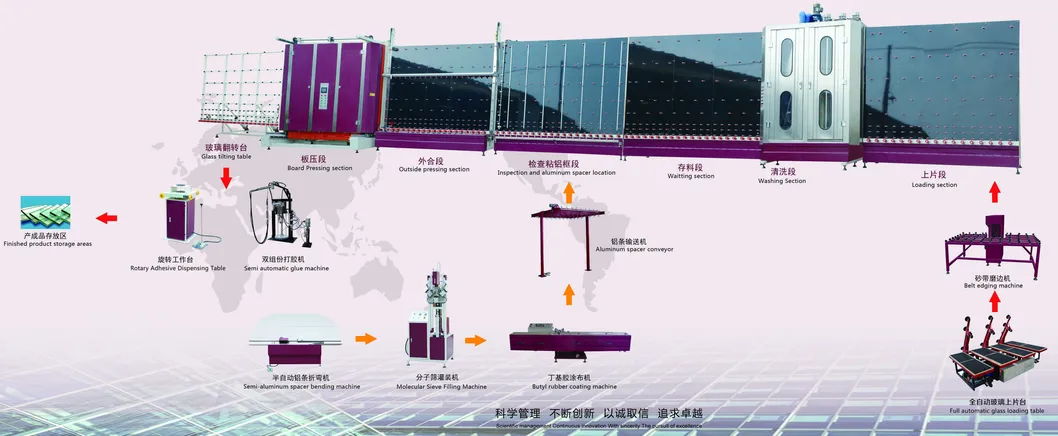

Insulating Glass Production Line
Production Line
Frequently Asked Questions
When can we arrange shipment?
We usually arrange shipment within 15 days after getting the deposit, but customized machines may require more than 25 days.
What can you do if my machines have problems?
1) We can send free components if the machine is within the guarantee period. 2) We can dispatch engineers to repair your machines.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Is the machine customizable for specific glass sizes?
Yes, every machine could be customized to meet your special requirements regarding glass dimensions and processing needs.
What are the power requirements for this machine?
The machine operates on a 380V voltage with an input power of 28kw.
What range of glass thickness can the loading machine handle?
The standard loading machine handles glass thicknesses from 3mm to 12mm, with extended capabilities up to 55mm depending on the configuration.
