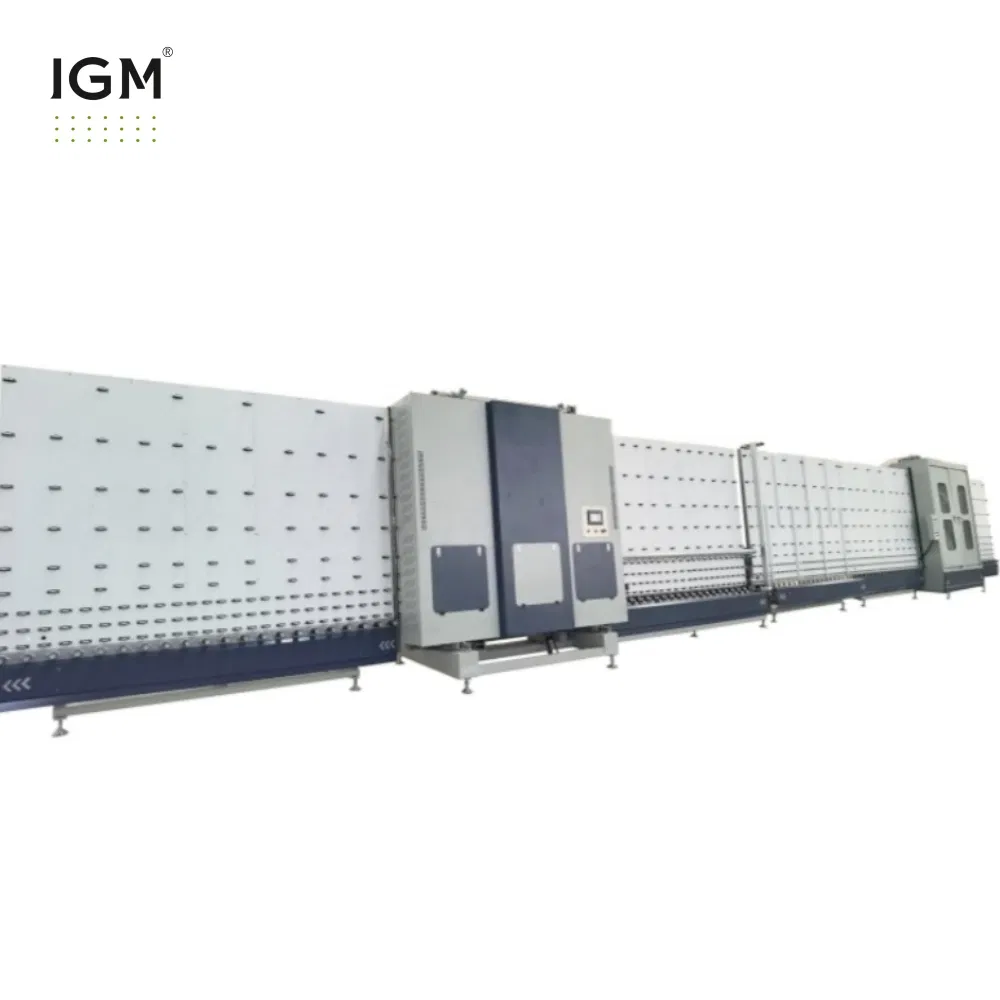

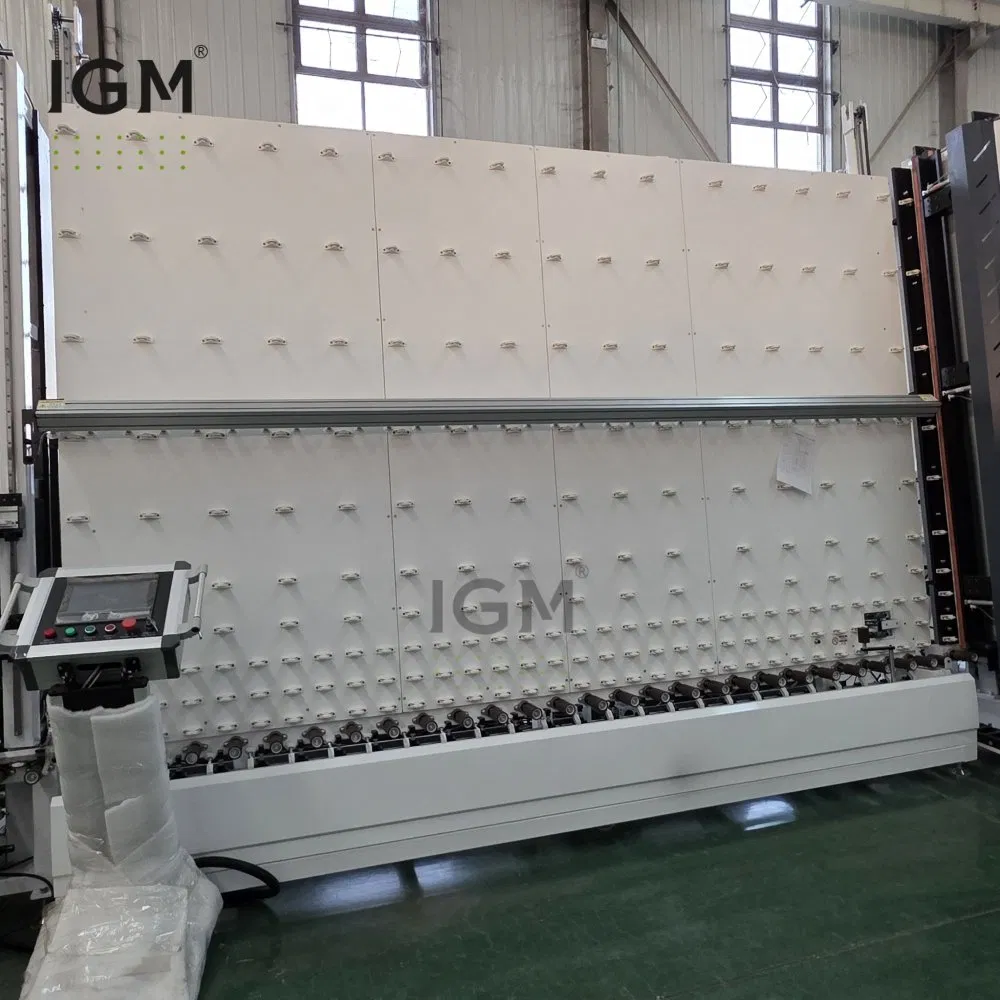

The hollow glass making machine is equipped with an argon gas charging function. It is mainly composed of an input section, high-performance stainless steel washing-drying section, glass transmission section, aluminum spacer assembly section, glass assembly section, press inflatable section (Inner composite sheet, plate pressure inner inflation), and output section.
| Technical Parameters of Hollow Glass Making Machine | |
|---|---|
| Model | LZK2500G |
| Working Air Pressure | 0.8 -1 Mpa |
| Power Supply | 220V /380V / 415V 50 /60Hz (Customized) |
| Total Power | 33kw |
| Max Glass Size | 2500*4000 mm |
| Original Glass Thickness | 3-12mm |
| Max Double Glazing Thickness | 12-50mm |
| Glass Washing Speed | 2-12 m/min |
| Weight | 4000kgs |
| Standard Accessories | |
|---|---|
| PLC / Frequency Converter | SIEMENS |
| Servo Motor / Touch Screen | SIEMENS |
| Photoelectric Switch | Omron |
| Low-voltage Electrical | Famous French Brand |
| Guide | CSK |
| Roller Screw | Taiwan Brand |

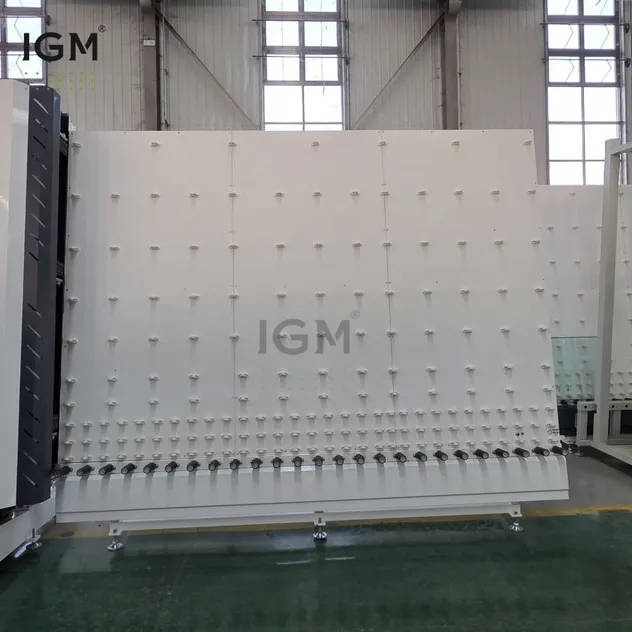

01 Section: Glass Loading with Low-E detection

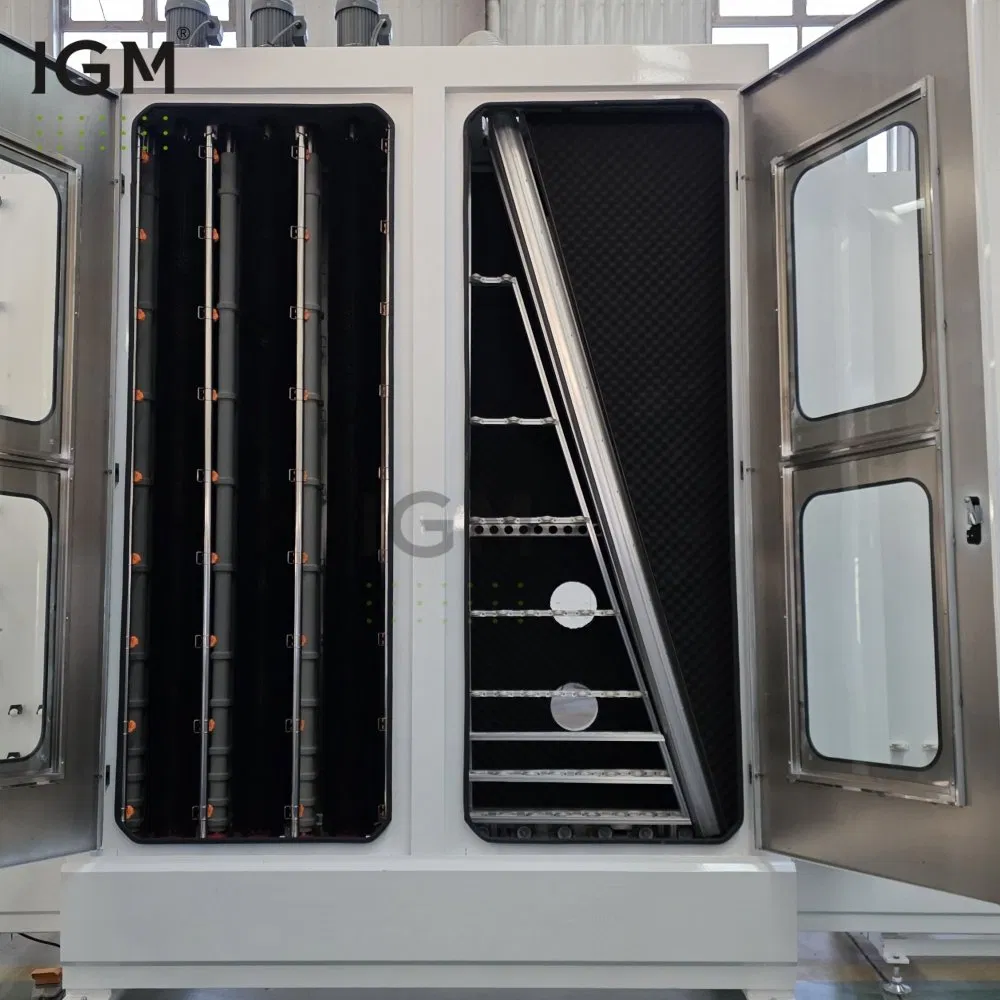

02 Section: Washing and Drying with hot air

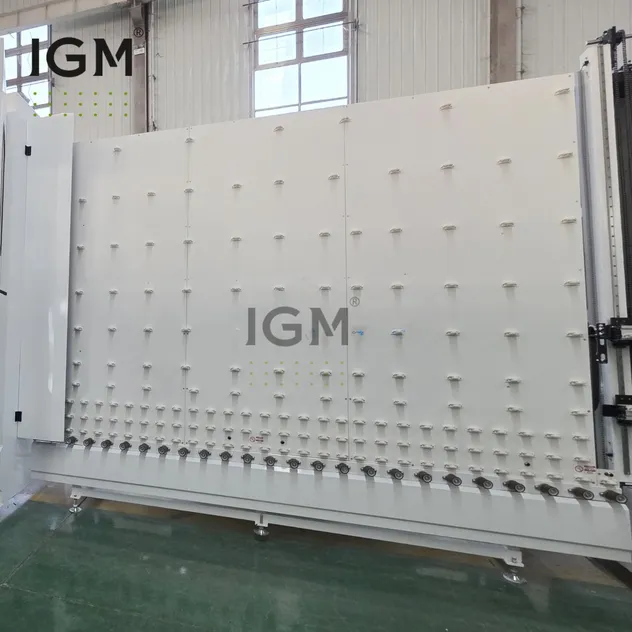

03 Section: Glass conveying with waiting function

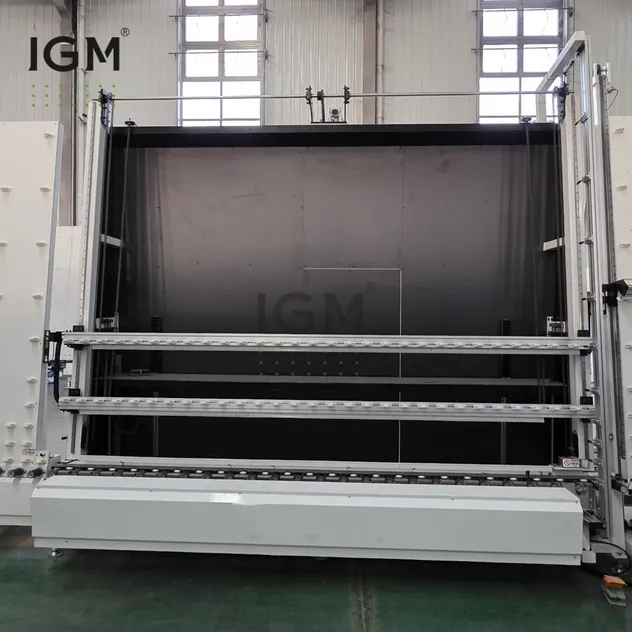

04 Section: Aluminum spacer assembly
05 Section: Glass assembly for double/triple glass

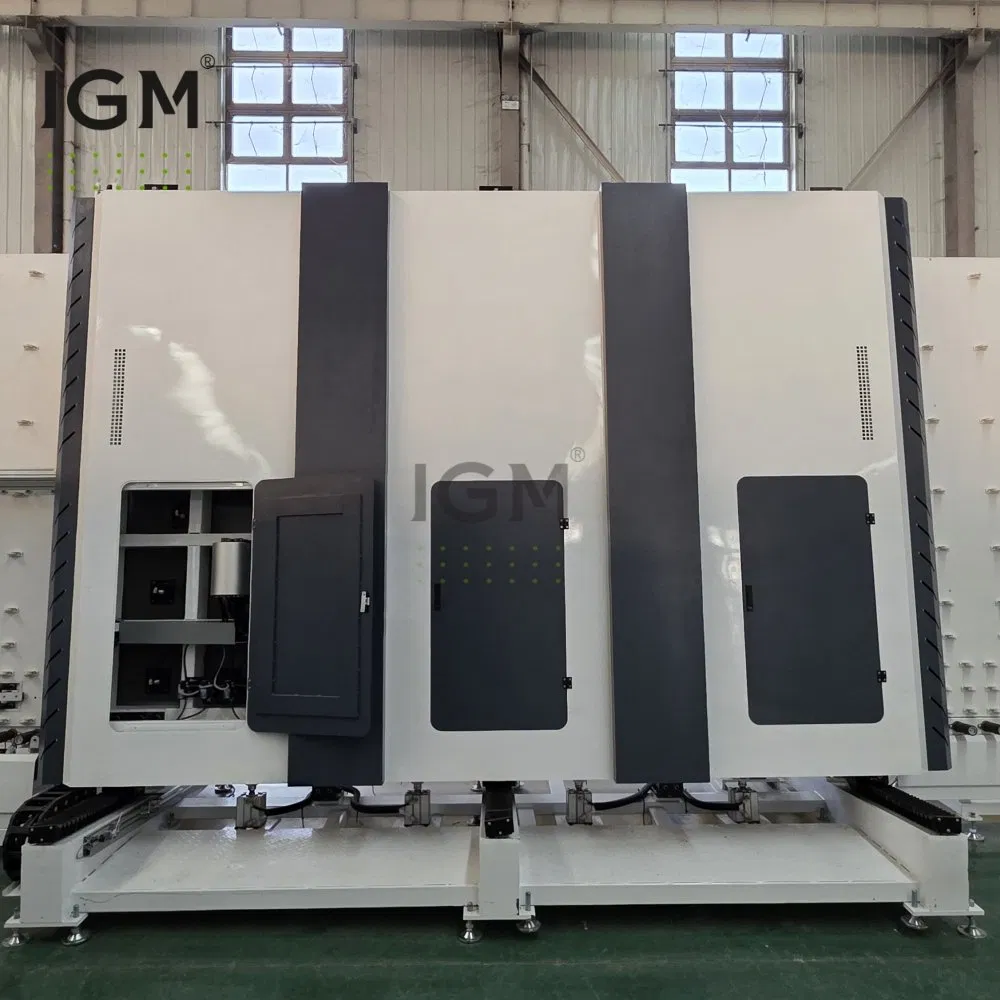

06 Section: Pressing and Gas filling (Argon >95%)

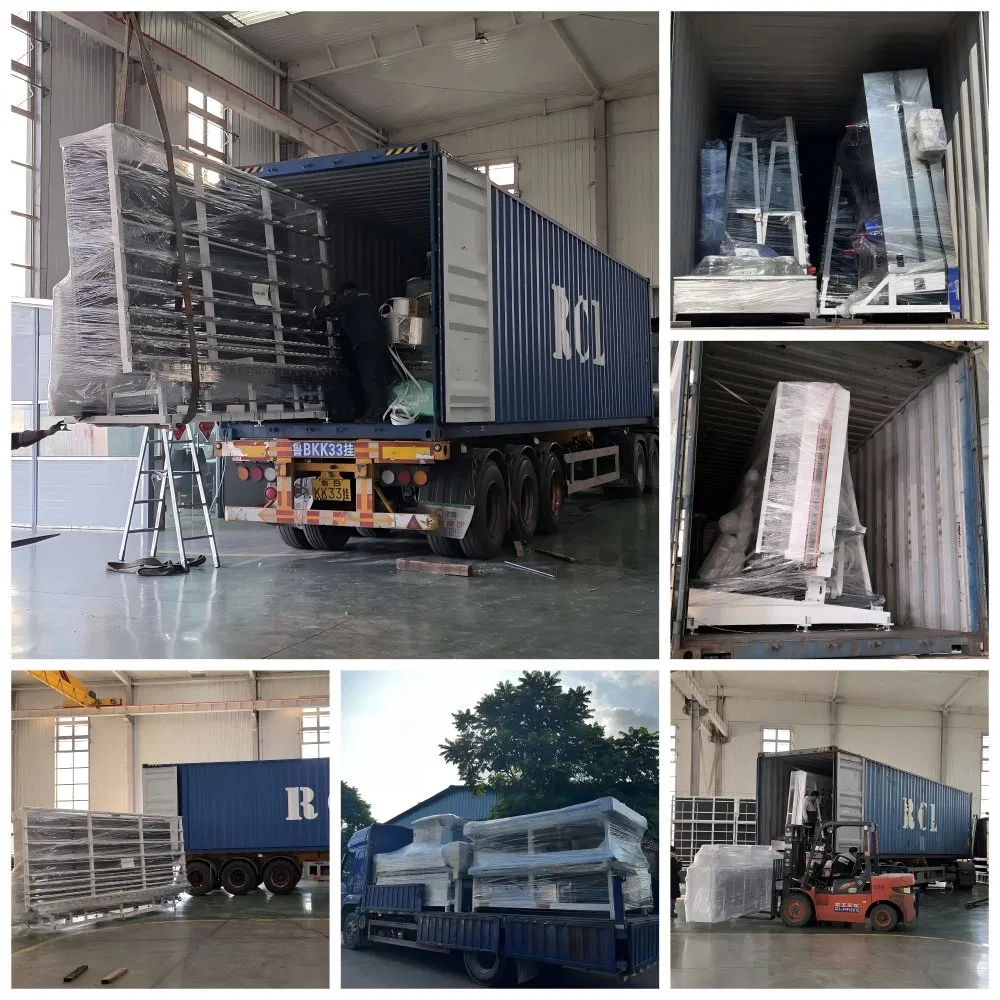

LCL: Packed in fumigation-free plywood with thickened pallets and fixed with steel wire.
FCL: Plastic film outer packaging, fixed in 20/40-foot containers with steel wire. Fumigation-free wooden boxes available upon request.

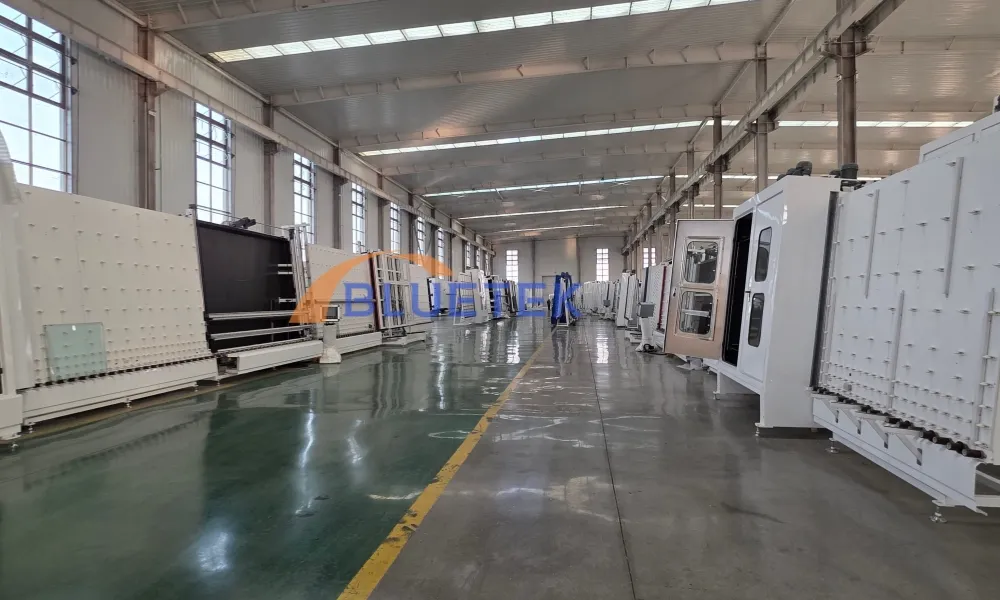

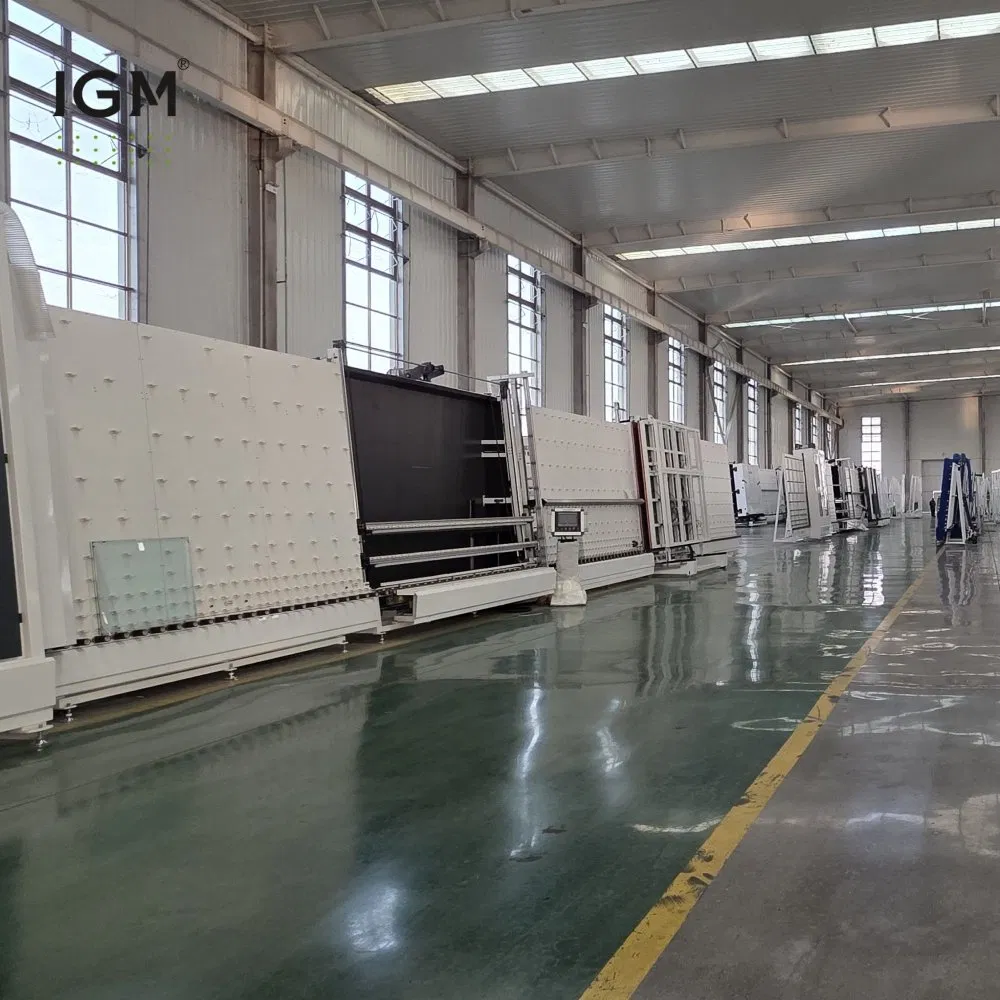

Our company is a leading enterprise specializing in the design and manufacturing of high-quality window and double glazing machinery. We are committed to providing customized solutions to meet diverse global needs. Our advanced machinery is widely used in North America, Europe, the Middle East, and beyond.

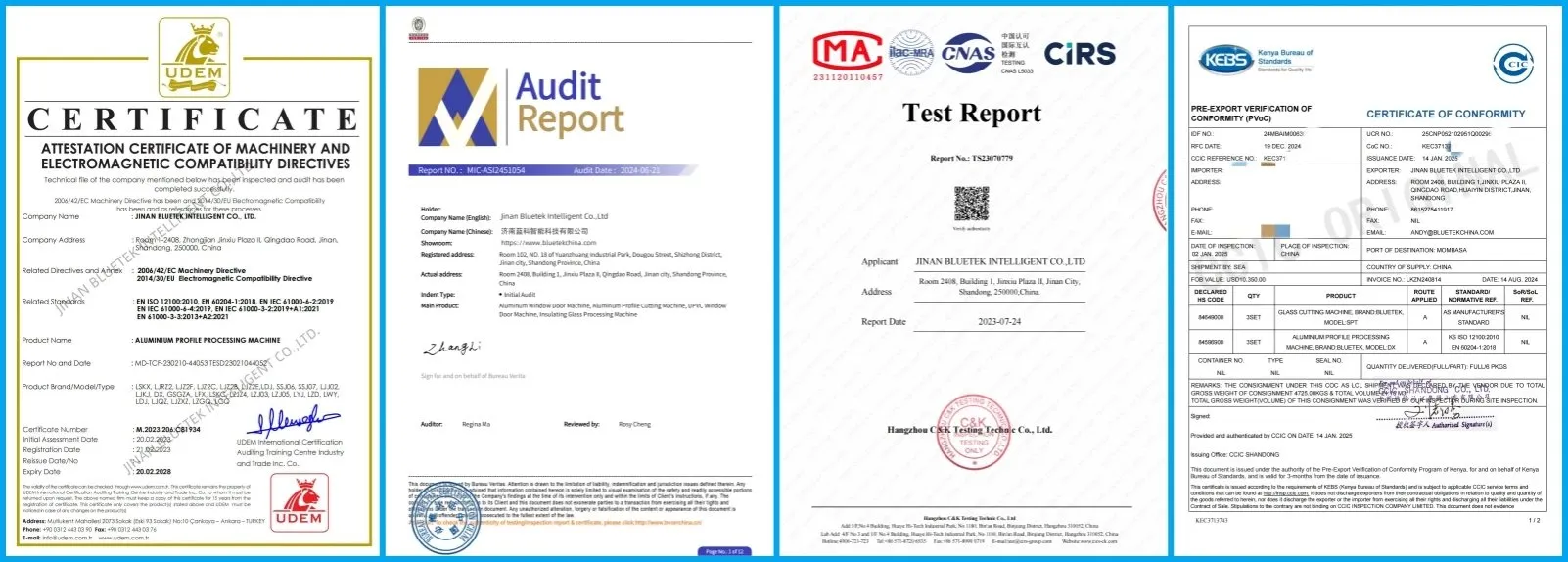

Certifications: We have passed EU CE and US UL certifications. Our products are exported to more than 50 countries including the USA, Russia, Thailand, and Brazil.
On-site installation support and equipment commissioning. We provide operational and maintenance training to ensure safe and efficient use.
18-month warranty with lifelong after-sales service.
24/7 technical support, remote troubleshooting via video/phone, and quick spare parts supply.
