Low E Double Glazing Machine Production Line for Insulating Glass

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

BLBG2030

Glass Thickness

3-12mm

Max Glass Size

2000*3000mm

Min Glass Size

200*300mm

Working Speed

2-40m/Min

Total Power

36kw

Voltage

380V/50Hz

Control System

PLC (Mitsubishi)

Origin

China

Package Size

1100cm * 250cm * 350cm

Gross Weight

8500.00kg

Product Description

Low E Double Glazing Machine Production Line for Insulating Glass

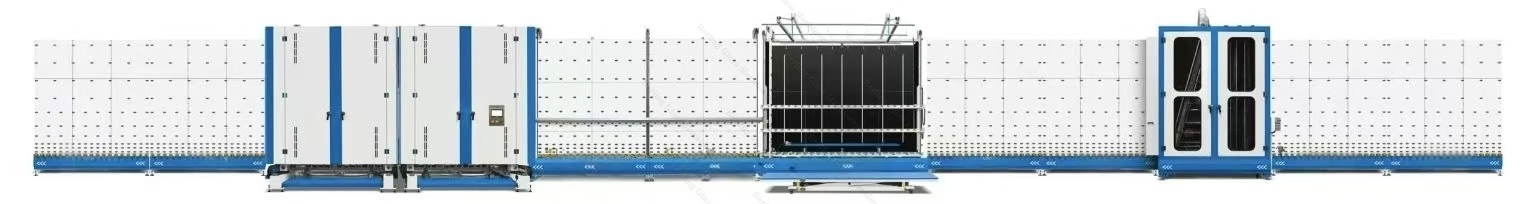

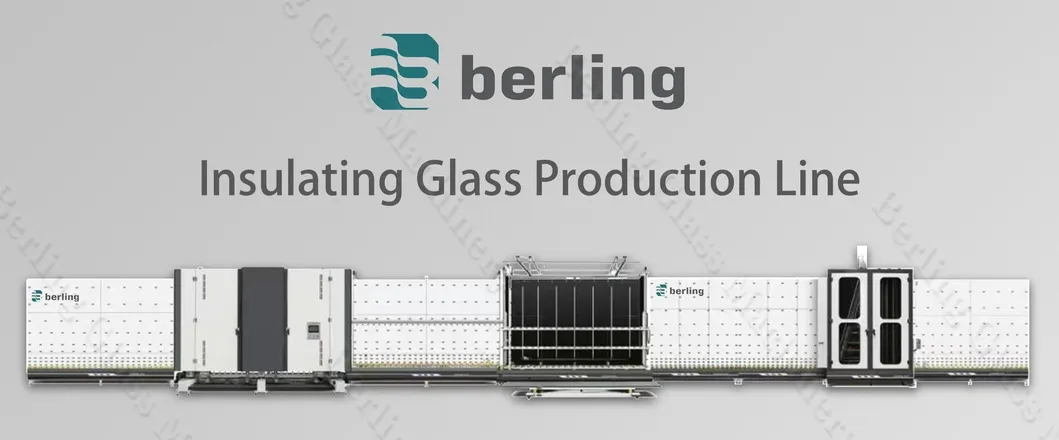

High-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Systems feature PLC control, Low-E glass detection, and servo-driven pressing.

⚙️

PLC Touchscreen Control

Easy operation and real-time monitoring of the entire production process.

🔍

Low-E Glass Detection

Omron sensors automatically identify coated glass for precision processing.

🧹

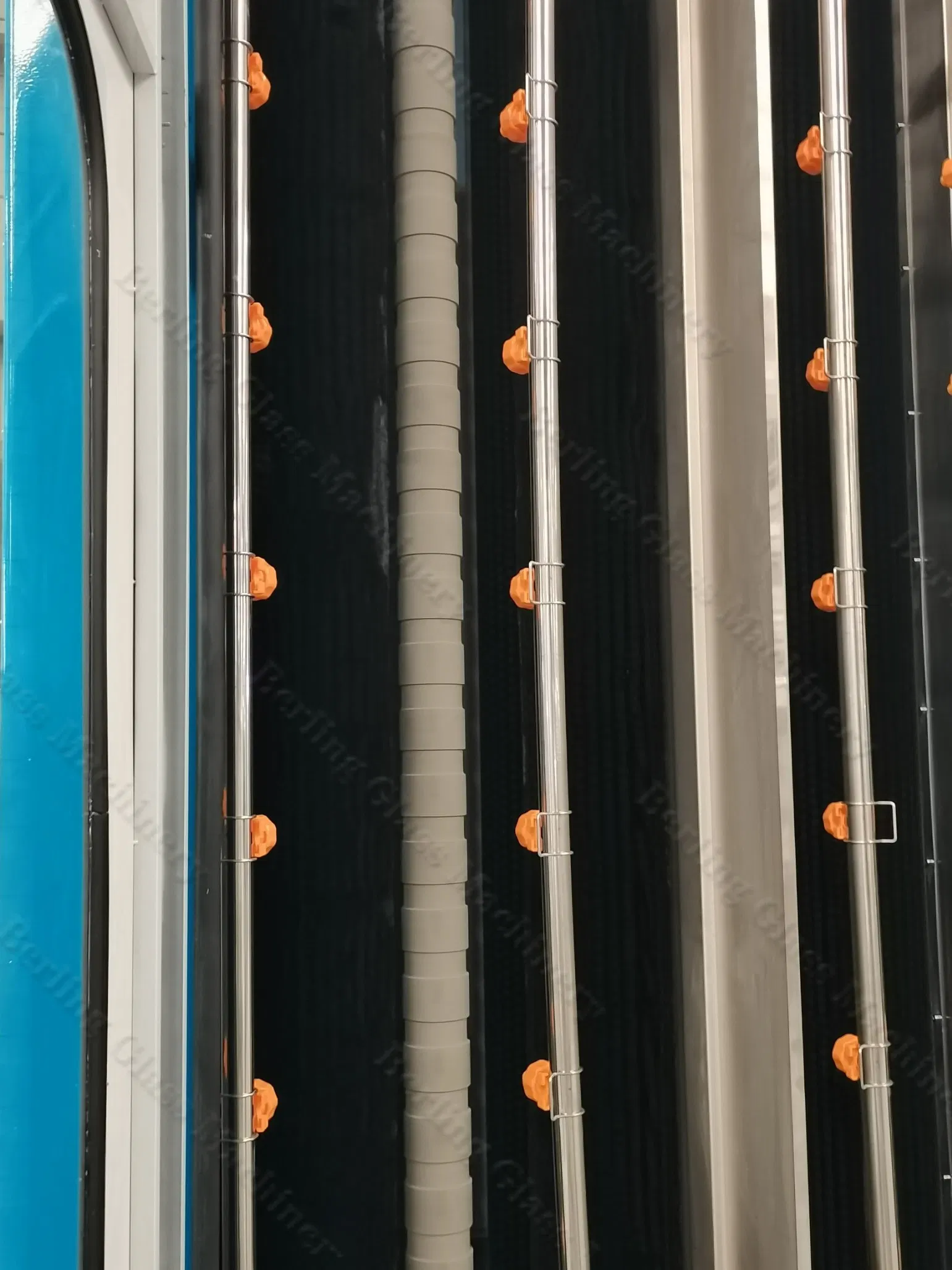

Independent Brush Motors

Each brush is motor-driven for superior cleaning and drying results.

⛽

Argon Gas Filling

Servo-controlled, pressurized gas injection meets strict industrial standards.

Product Parameters

Item	BLBG-3060	BLBG-2850	BLBG-2540	BLBG-2030
Total power	90KW	70KW	46KW	36KW
Max glass size	3000*6000mm	2800*5000mm	2500*4000mm	2000*3000mm
Min glass size	280*450mm	280*450mm	280*450mm	280*450mm
Panel thickness	3~30mm	3~12mm	3~12mm	3~12mm
Max LG thickness	12~80mm	12~80mm	12~40mm	12~40mm
Washing speed	2-12m/min	2-12m/min	2-12m/min	2-12m/min
Working Speed	2-45m/min	2-45m/min	2-45m/min	2-40m/min

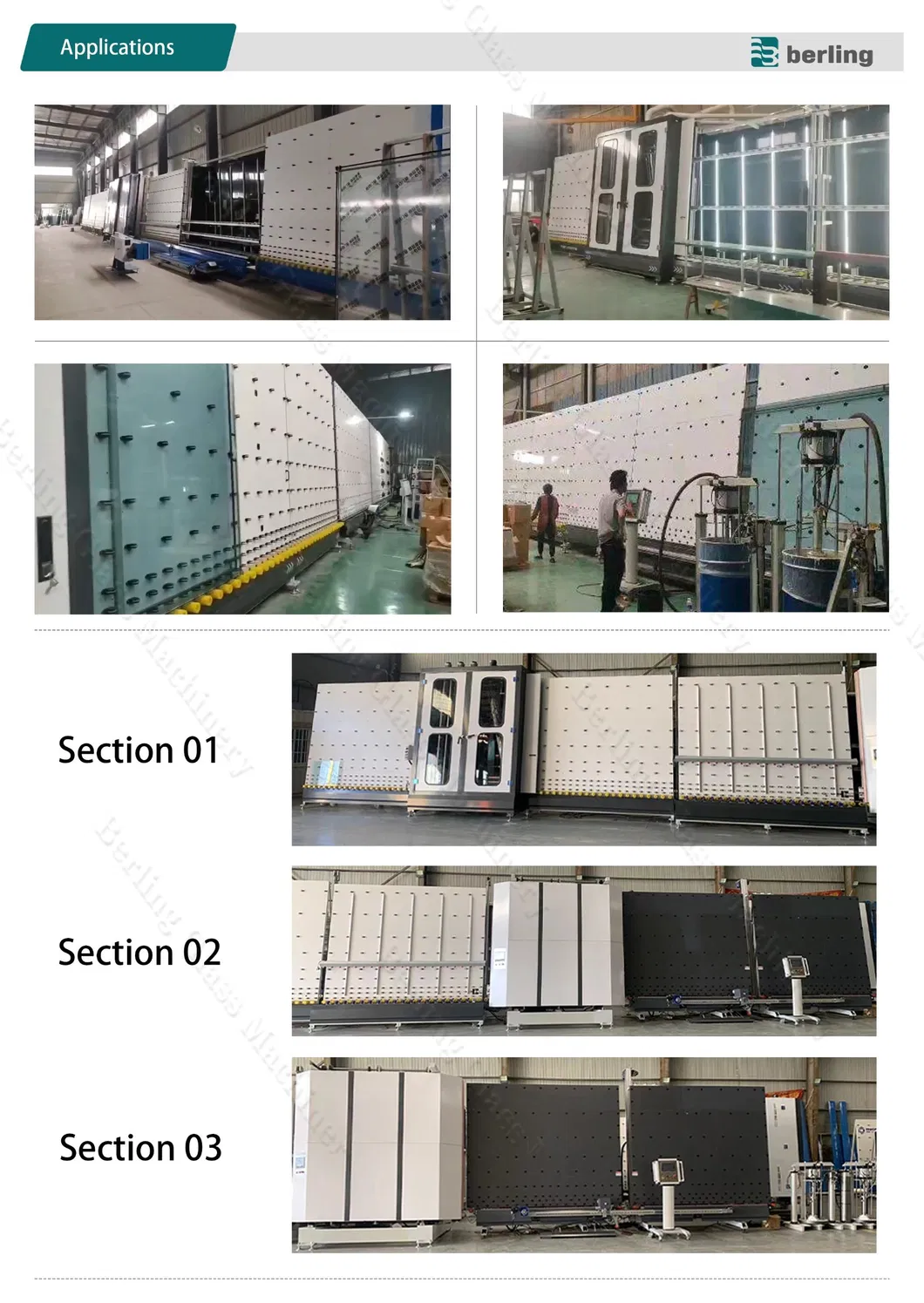

Main Applications

Residential & commercial window IGUs
Curtain wall insulating glass units
Low-E energy-saving glass processing
Structural glass façade fabrication
Glass panel assembly and sealing

Certifications & Global Service

Professional installation, on-site maintenance, and equipment debugging services available globally.

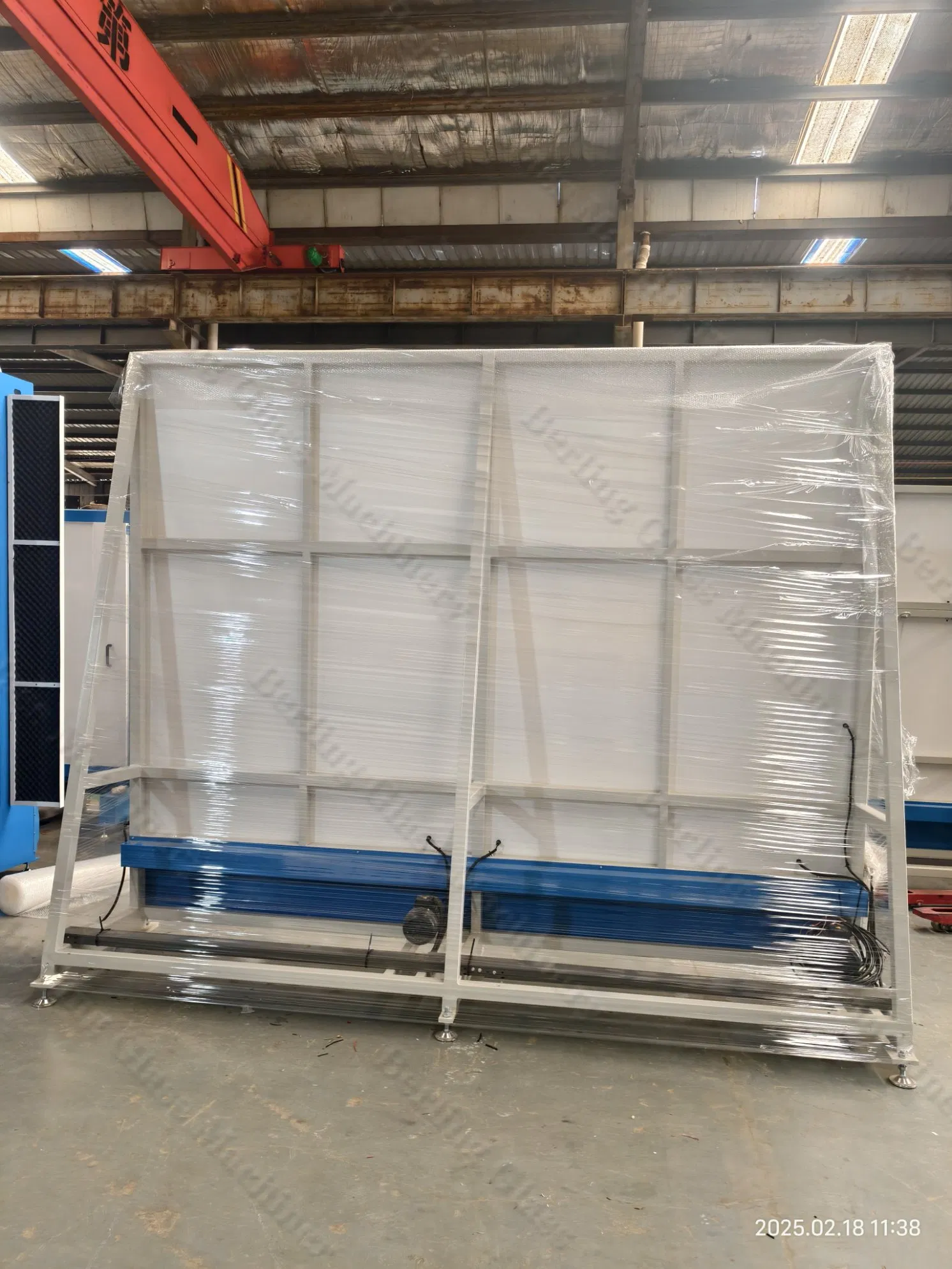

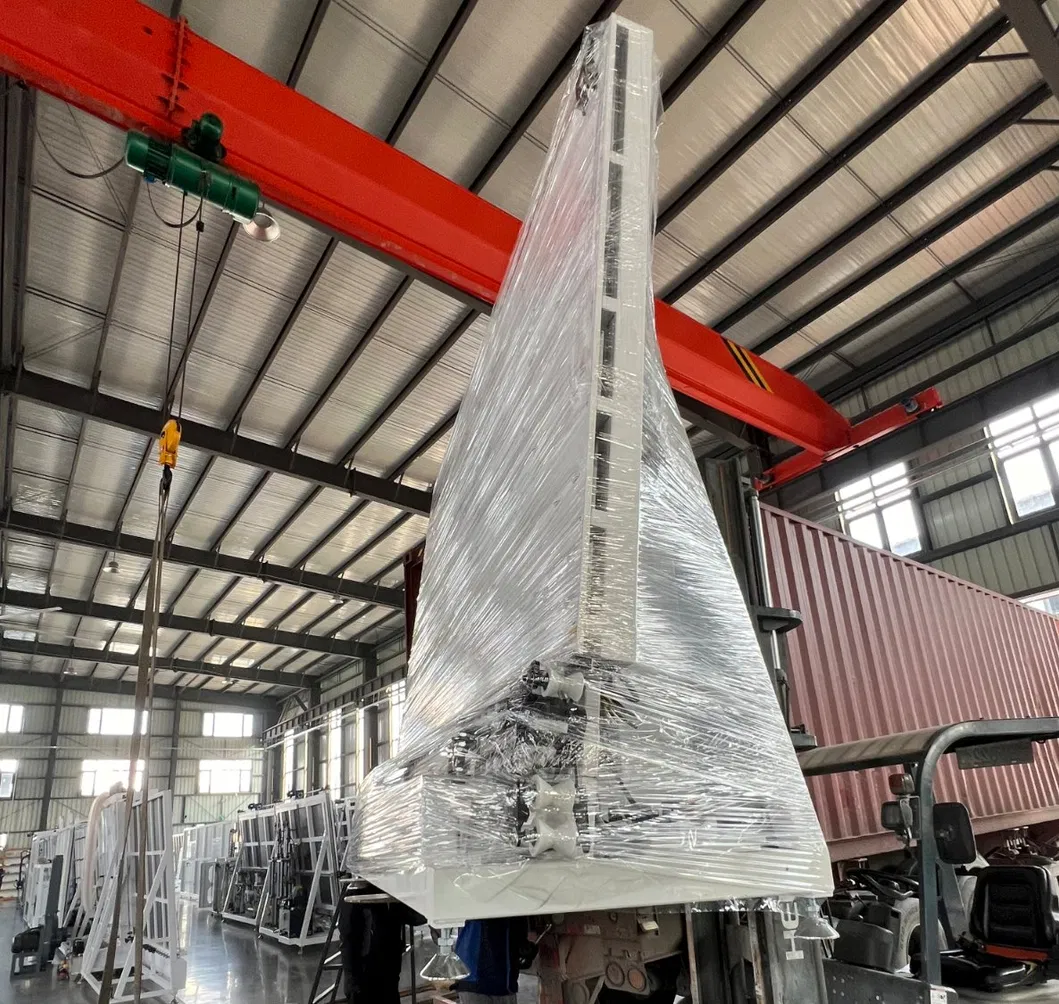

Packaging & Shipping

Automatic glass sheet transportation throughout the line ensures high-quality assembly. We design the most efficient packaging solutions to save space and reduce transportation costs, ensuring timely delivery of industrial equipment.

Frequently Asked Questions

1. What types of glass can this production line process?

Our production lines are designed to handle double glazing, triple glazing, and structural glass units, specifically optimized for Low-E energy-saving glass with automatic coating detection.

2. How do you ensure the quality of the machinery?

We maintain rigorous quality control by providing pre-production samples and conducting a thorough final inspection before every shipment to ensure performance stability.

3. What equipment is available for glass processing?

We provide a full range of equipment including Insulated Glass Lines, Automatic Sealing Lines, Cutting Machines, Washing Machines, Edging Machines, and Tempering Furnaces.

4. Why choose your machinery over other suppliers?

With over 20 years of production experience, an excellent engineering team, and a professional after-sales service network, we provide reliable and stable glass processing solutions.

5. Do you provide international installation and training?

Yes, we arrange for experienced engineers to provide professional installation, on-site maintenance, and equipment debugging services globally to ensure your line runs perfectly.

6. What are the accepted payment and delivery terms?

We support various delivery terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, and Credit Card in multiple currencies including USD, EUR, and CNY.
