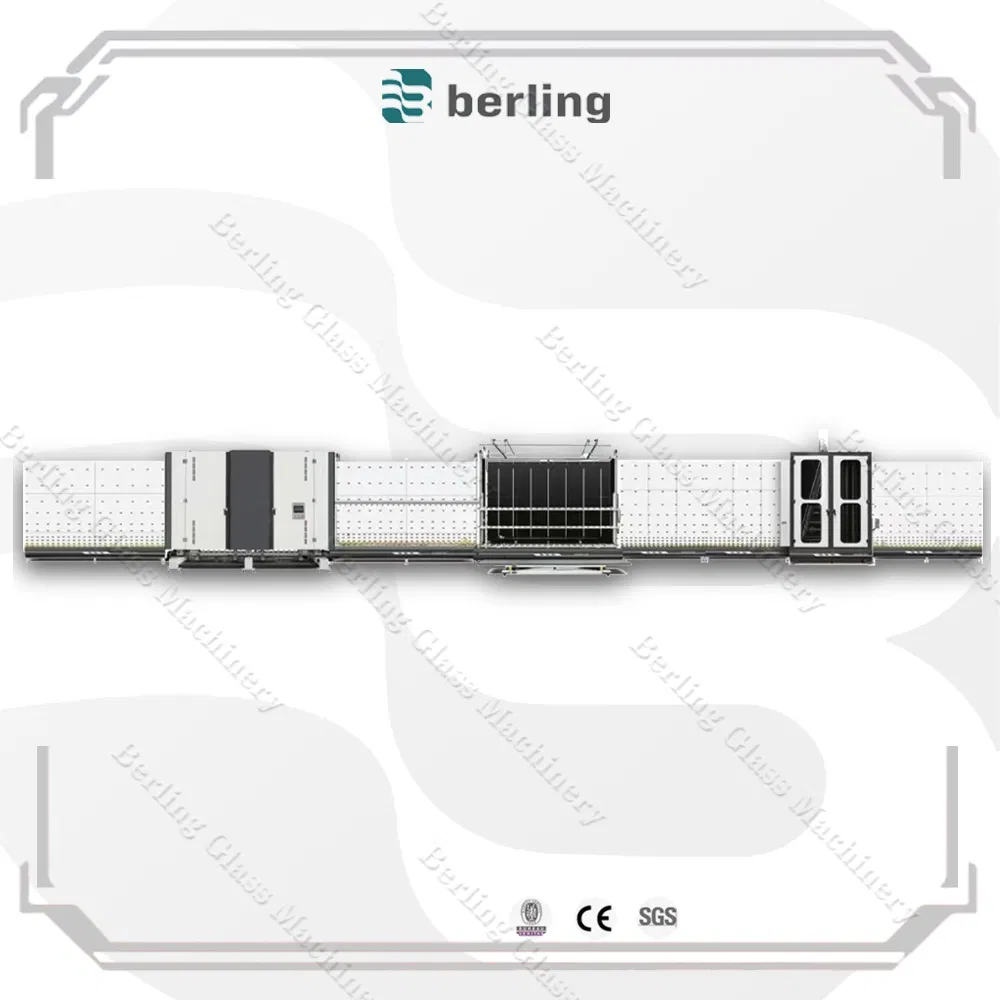

Professional Glass Vertical Igu Production Line with Insulating Technology Machinery

1 / 5

Professional Glass Vertical Igu Production Line with Insulating Technology Machinery

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

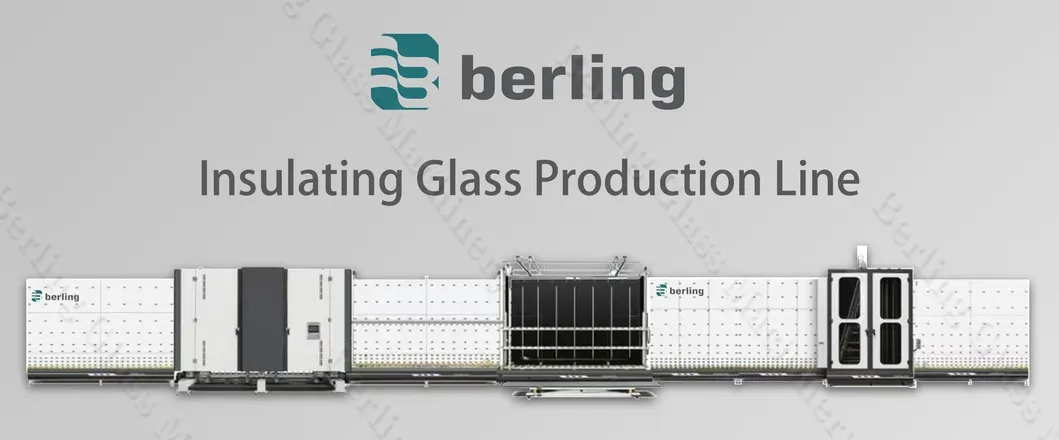

High-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

Product Features

PLC Touchscreen Control - Easy operation and real-time monitoring.
Low-E Glass Detection - Omron sensors automatically identify coated glass.
Independent Brush Motors - Each brush is motor-driven for better cleaning.
Argon Gas Filling System - Servo-controlled, pressurized gas injection meets standards.
Flexible Assembly Modes - Supports both inner and outer press options.
Durable Stainless Steel Build - Corrosion-resistant for long-term use in industrial environments.

Technical Specifications

Item	BLBG-3060	BLBG-2850	BLBG-2540	BLBG-2030
Total power	90KW	70KW	46KW	36KW
Max glass size	3000*6000mm	2800*5000mm	2500*4000mm	2000*3000mm
Min glass size	280*450mm	280*450mm	280*450mm	280*450mm
Panel glass thickness	3~30mm	3~12mm	3~12mm	3~12mm
Max IG unit thickness	12~80mm	12~80mm	12~40mm	12~40mm
Working Speed	2-45m/min	2-45m/min	2-45m/min	2-40m/min
Air pressure	0.8m³/min	0.8m³/min	0.8m³/min	0.8m³/min

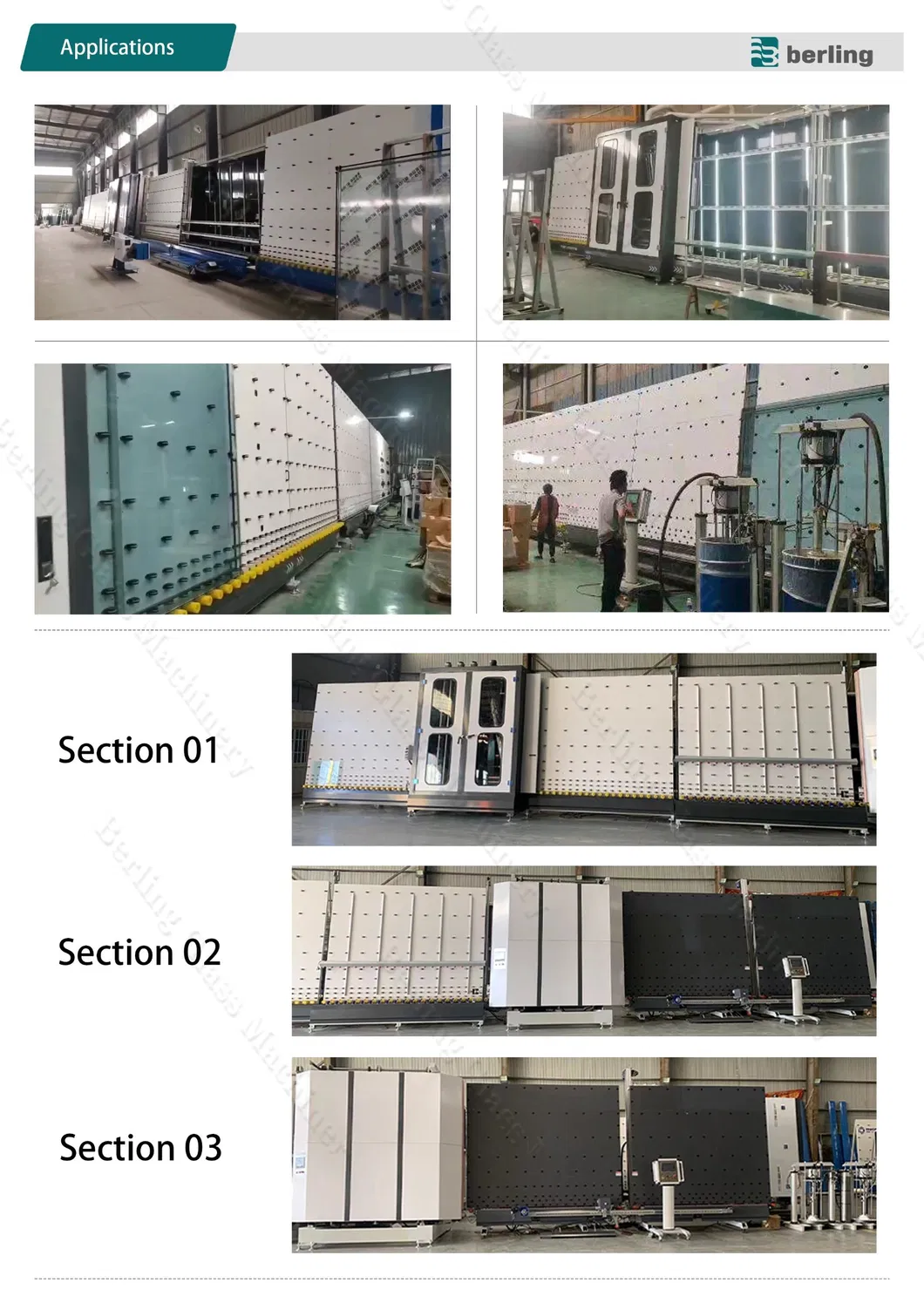

Core Applications

Residential & commercial window IGU manufacturing
Curtain wall insulating glass unit production
Low-E energy-saving glass processing
Structural glass façade panel fabrication
Glass panel assembly and sealing in building industry

Quality & Packaging

Frequently Asked Questions

1. What types of glass can this production line process? The line is designed for double, triple, and structural glass units, and includes specialized sensors to detect and process Low-E energy-saving glass.

2. How is the quality of the machinery guaranteed? We ensure quality through a pre-production sample evaluation before bulk manufacturing and a rigorous final inspection of every unit before shipment.

3. What are the key technical advantages of your IGU line? Key advantages include servo-driven pressing for high accuracy, independent motor-driven brushes for superior cleaning, and an integrated Argon gas filling system.

4. Can the line handle different glass thicknesses? Yes, depending on the model, it can process panel thicknesses from 3mm to 30mm and produce total IG unit thicknesses up to 80mm.

5. What other glass processing equipment do you provide? In addition to IGU lines, we offer glass cutting machines, washing machines, edging machines, tempering furnaces, and laminated glass production lines.

6. What payment and delivery terms are accepted? We support a wide range of terms including FOB, CIF, DDP, and EXW. Accepted currencies include USD, EUR, and CNY via T/T, L/C, or Credit Card.
