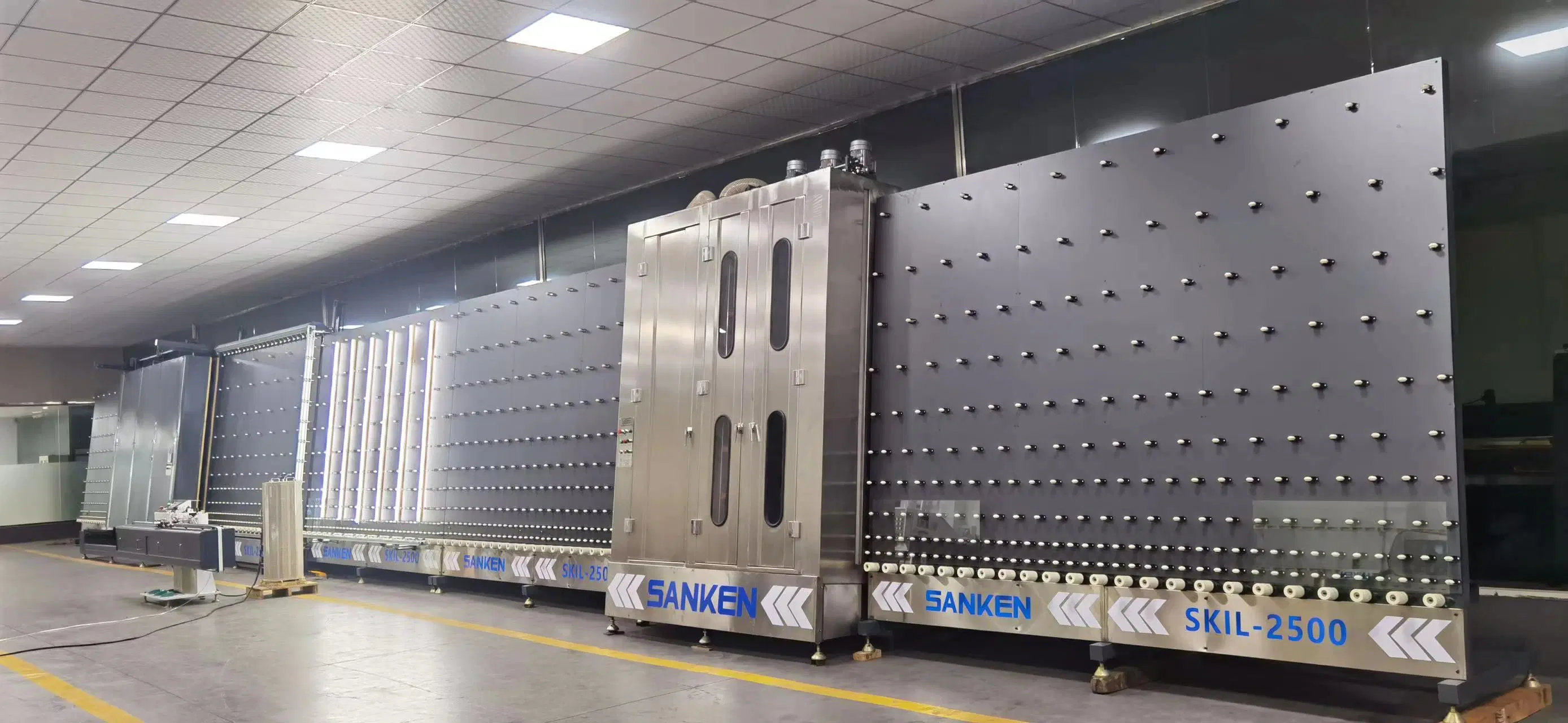

High Performance Insulating Glass Line
Top Quality Insulating Glass Production Line
This production line features comprehensive automatic functions including glass loading, Low-E coating deletion, washing, spacer frame loading, assembly, gas filling, pressing, and sealing with robotic technology.
1

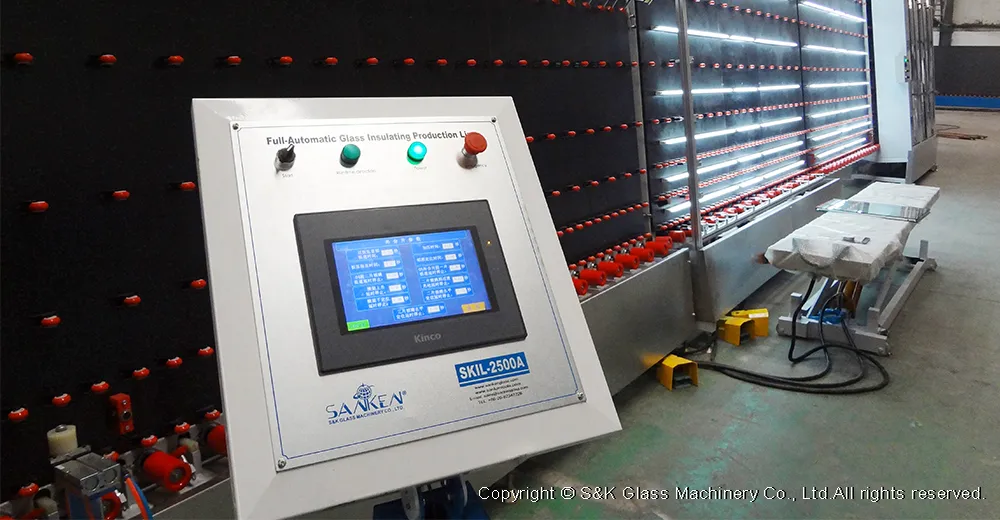

Controlled by PLC and Touch Screen for high intelligence and efficiency.
2

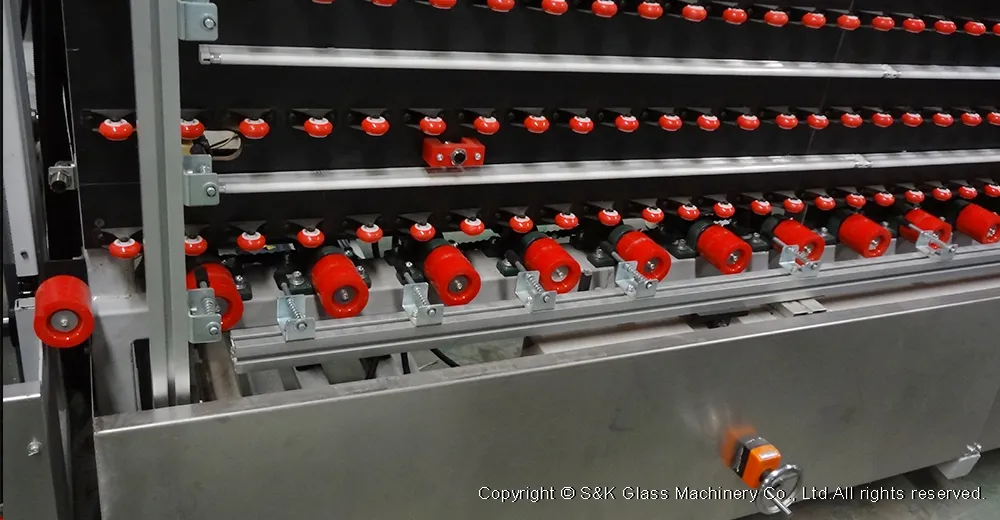

Maximum transmission speed reaches up to 45 meters per minute with frequency speed control.
3
Servo-controlled loading and unloading for high accuracy and safety.
4
Advanced coating deletion system for square and unequal Low-E glass.
5

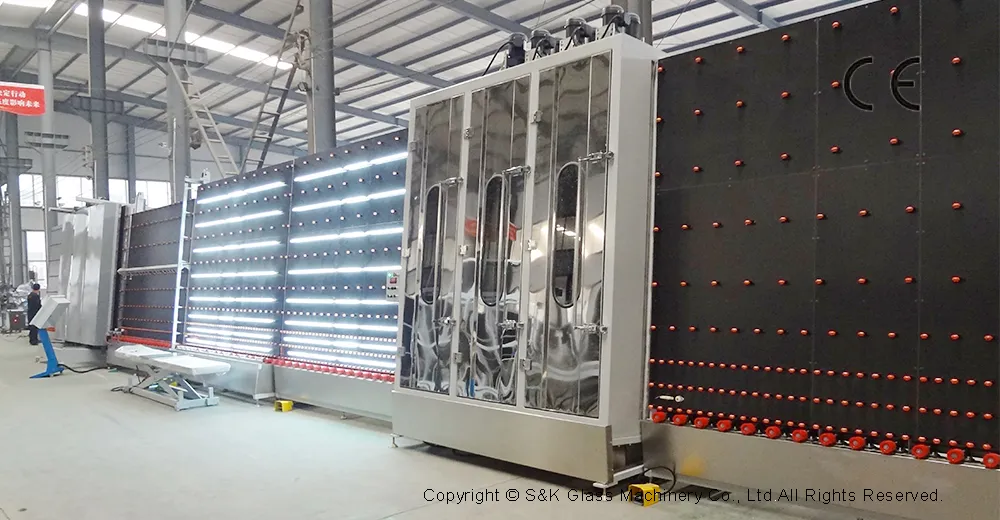

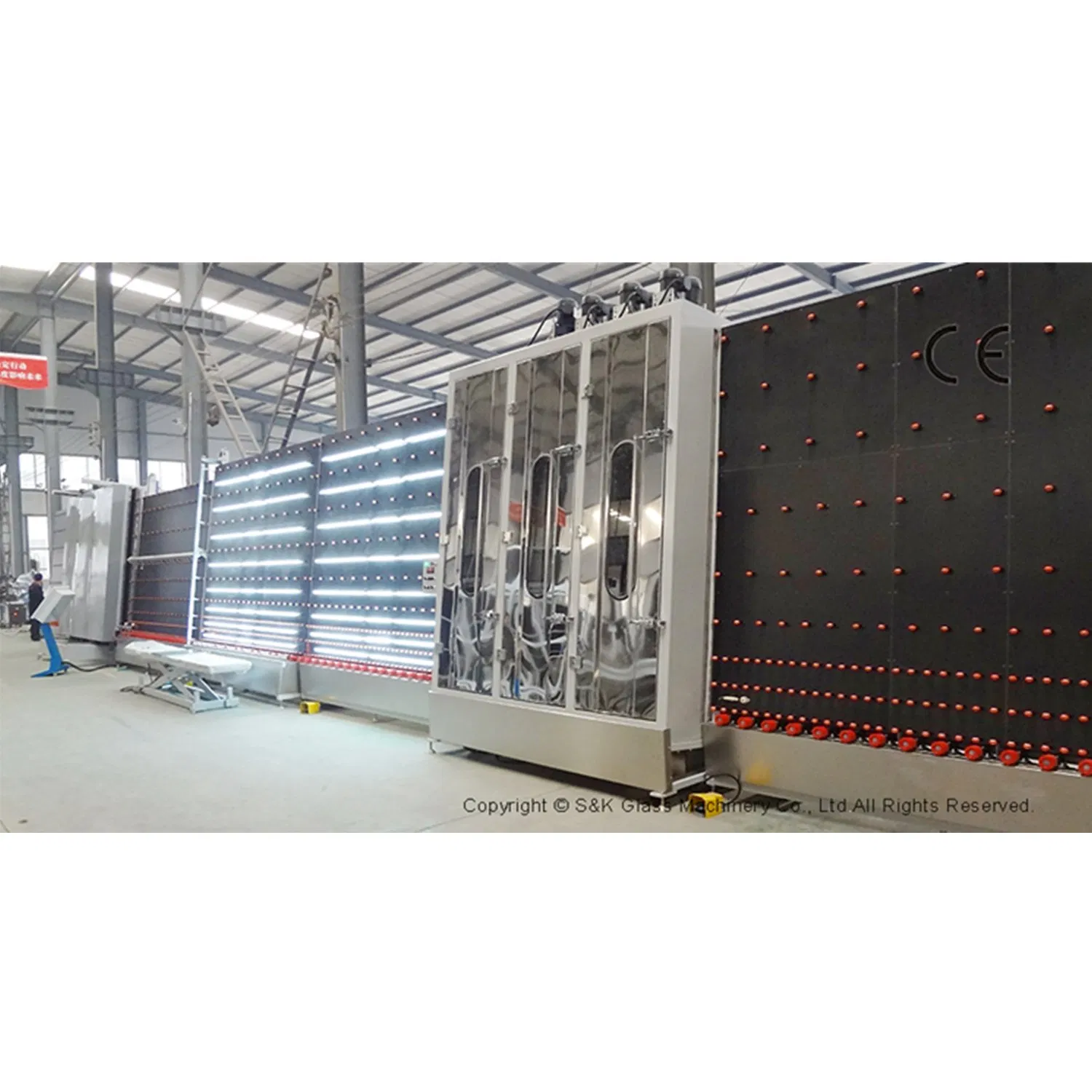

Stainless steel washer with high-pressure air knives and special brushes.
6
Automatic identification system for coating surface to ensure correct assembly.
7
Advanced detection technology for automatic glass length and height measurement.
8
On-line automatic gas filling for superior sound and heat insulation.
9

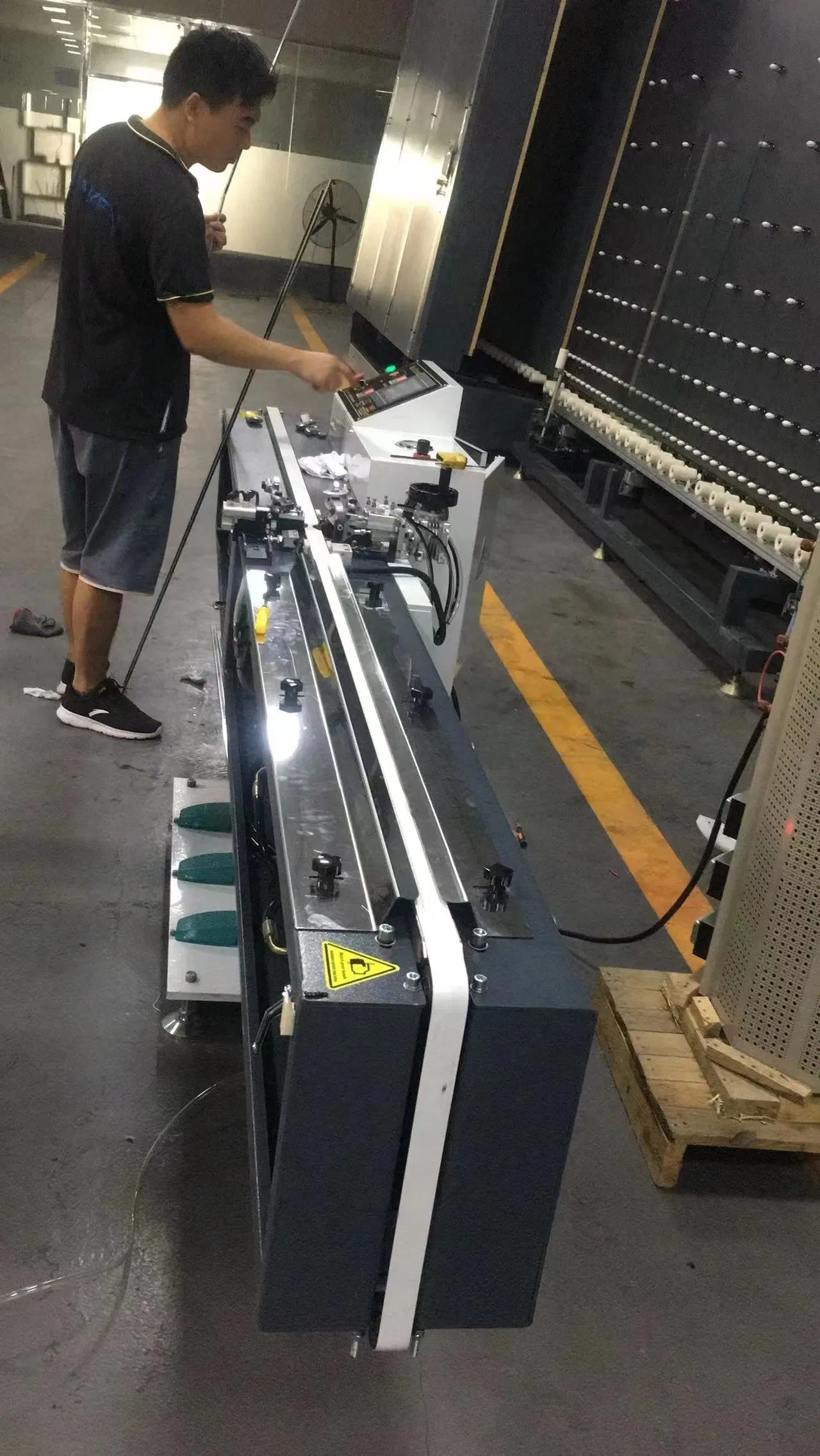

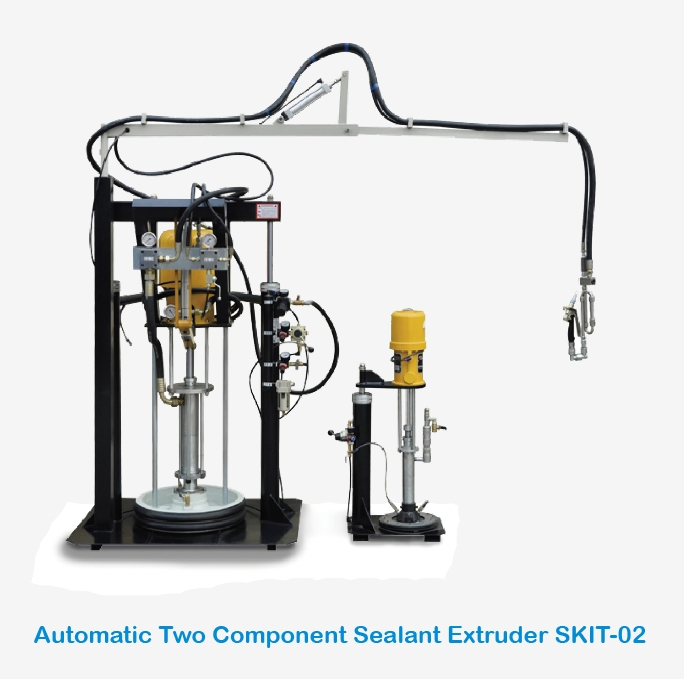

CNC and Servo-controlled two-component sealing for intelligent operation.
10
Intermittent operation energy-saving system.
11
Human-machine interface designed for simple operation and easy maintenance.
❓
Frequently Asked Questions
Q1: What is the maximum glass size the SKIL-2500A can process?
A: The SKIL-2500A can handle a maximum glass size of 2500 * 3000 mm.
Q2: Does the line support Low-E glass processing?
A: Yes, it includes an automatic Low-E coating deletion system and a specialized washing section that protects the coating surface.
Q3: What is the production capacity of this line?
A: The line can produce approximately 100 pieces of insulating glass units per hour.
Q4: How is the production line controlled?
A: The entire line is controlled by a PLC system with a user-friendly Touch Screen interface for high efficiency.
Q5: Is there an automatic gas filling system included?
A: Yes, the line features an on-line automatic gas filling system to enhance sound and heat insulation.
Q6: What materials are used for the washing section?
A: The washer is constructed from high-quality stainless steel and corrosion-resistant materials to ensure durability and cleanliness.
