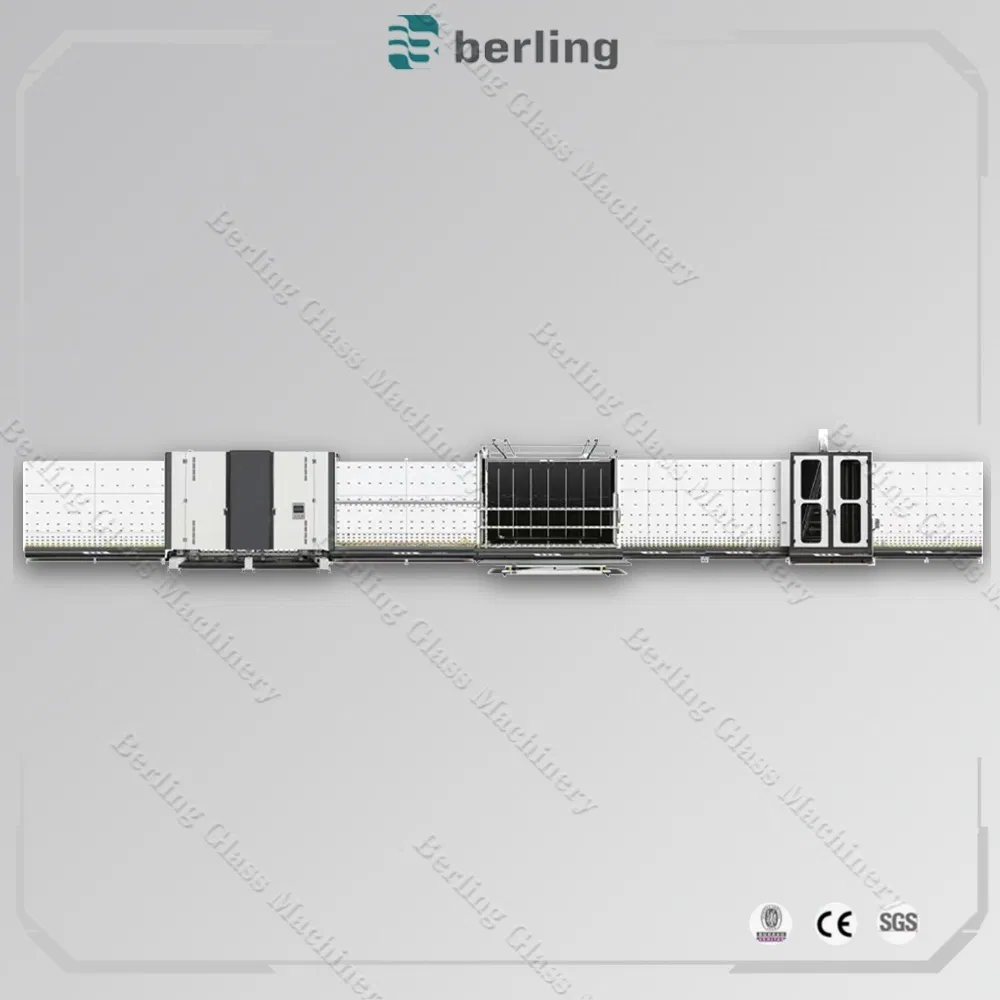

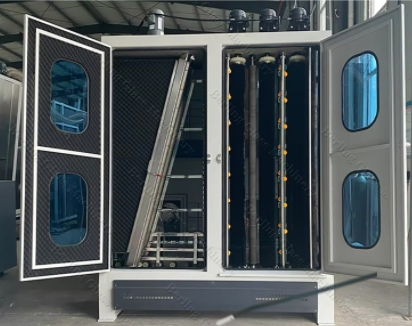

Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
1 / 5
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot
Triple Insulated Glass Processing Machine with Automatic Sealing Robot

Triple Insulated Glass Processing Machine with Automatic Sealing Robot

Customization: Available
Certification: CE, FDA, ISO, PCI, PDA, UR, UL
Control System: PLC Control
Send Inquiry

Product Description

1

Basic Specifications

Model NO.
BLBG2540
Glass Thickness
12-40mm
Max Glass Size
2500*4000mm
Min Glass Size
280*450mm
Panel Thickness
3~12mm
Washing Speed
2-12m/Min
Working Speed
2-45m/Min
Total Power
46kw
Package Size
250cm * 120cm * 300cm
Gross Weight
3000.00kg
2

Product Description

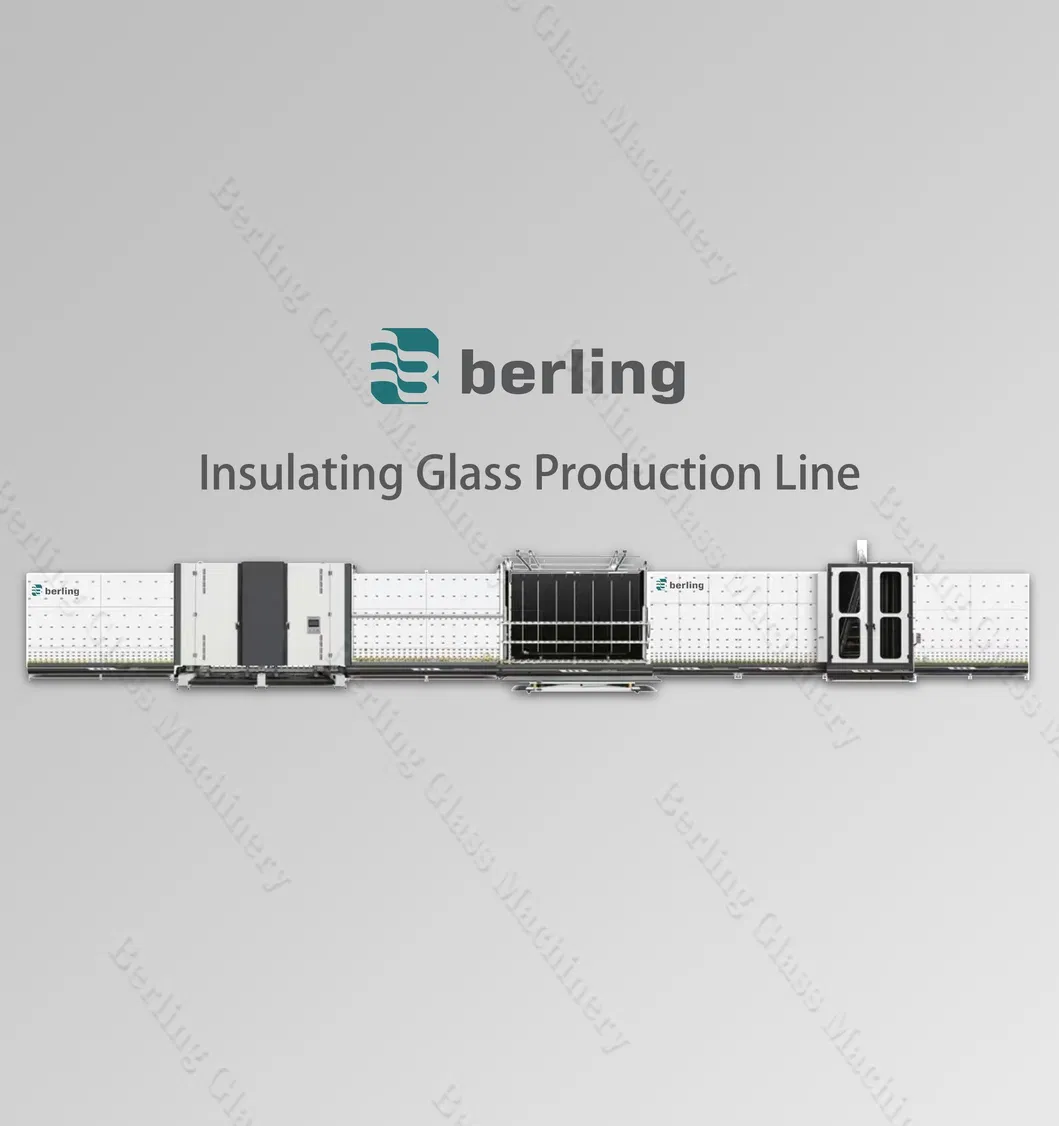

Insulated Glass Processing Machine

Our solutions provide high-quality technologies to manufacture high-performing insulating glass units, including double glass, triple glass, and structural glass facade units used in windows and curtain walls. From standalone glass washing machines to complete glass washing lines driven by servo motors with automatic argon gas filling systems.

Features include PLC control, touch screen interfaces, Low-E glass diagnosis, and energy-saving modes where non-active sections enter an intelligent dormancy state to reduce power consumption.

3

Technical Parameters

Item BLBG3060 BLBG2850 BLBG2540 BLBG2030
Total power90KW70KW46KW36KW
Max glass size3000*6000mm2800*5000mm2500*4000mm2000*3000mm
Min glass size280*450mm280*450mm280*450mm280*450mm
Panel thickness3~30mm3~12mm3~12mm3~12mm
Max IG unit12~80mm12~80mm12~40mm12~40mm
Washing speed2-12m/min2-12m/min2-12m/min2-12m/min
Working Speed2-45m/min2-45m/min2-45m/min2-40m/min
4

Detailed Photos

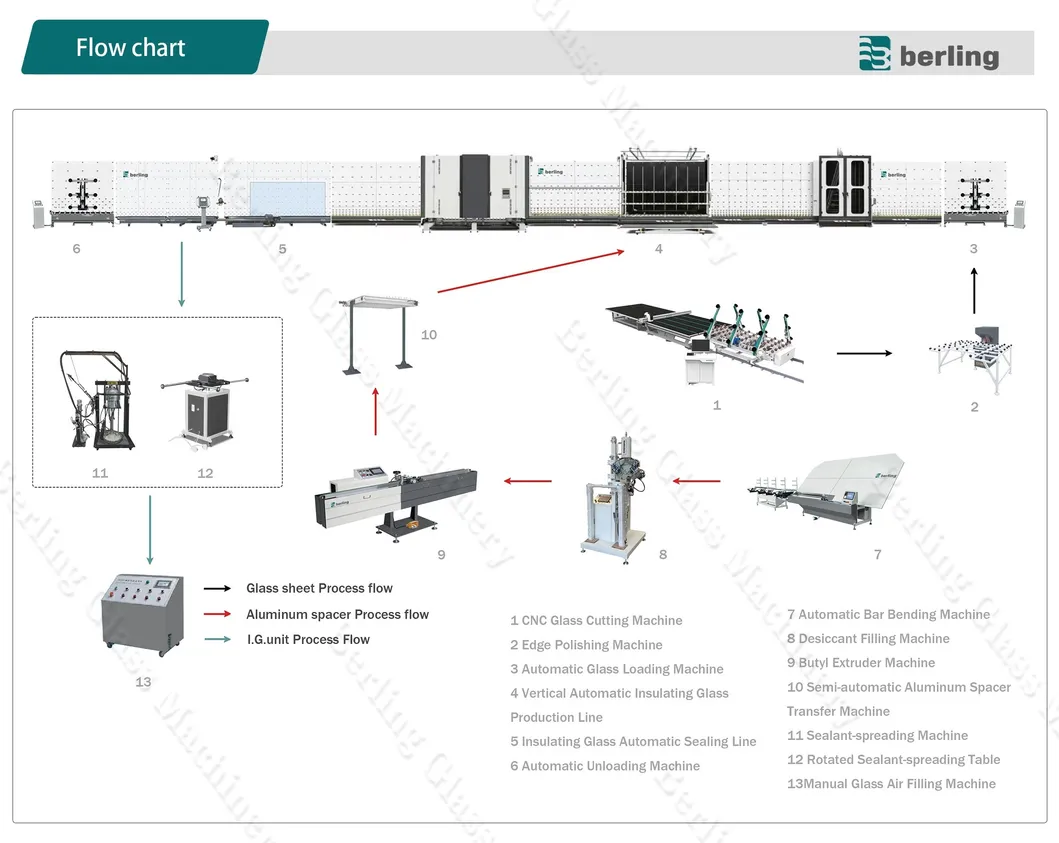

Machine Detail 1

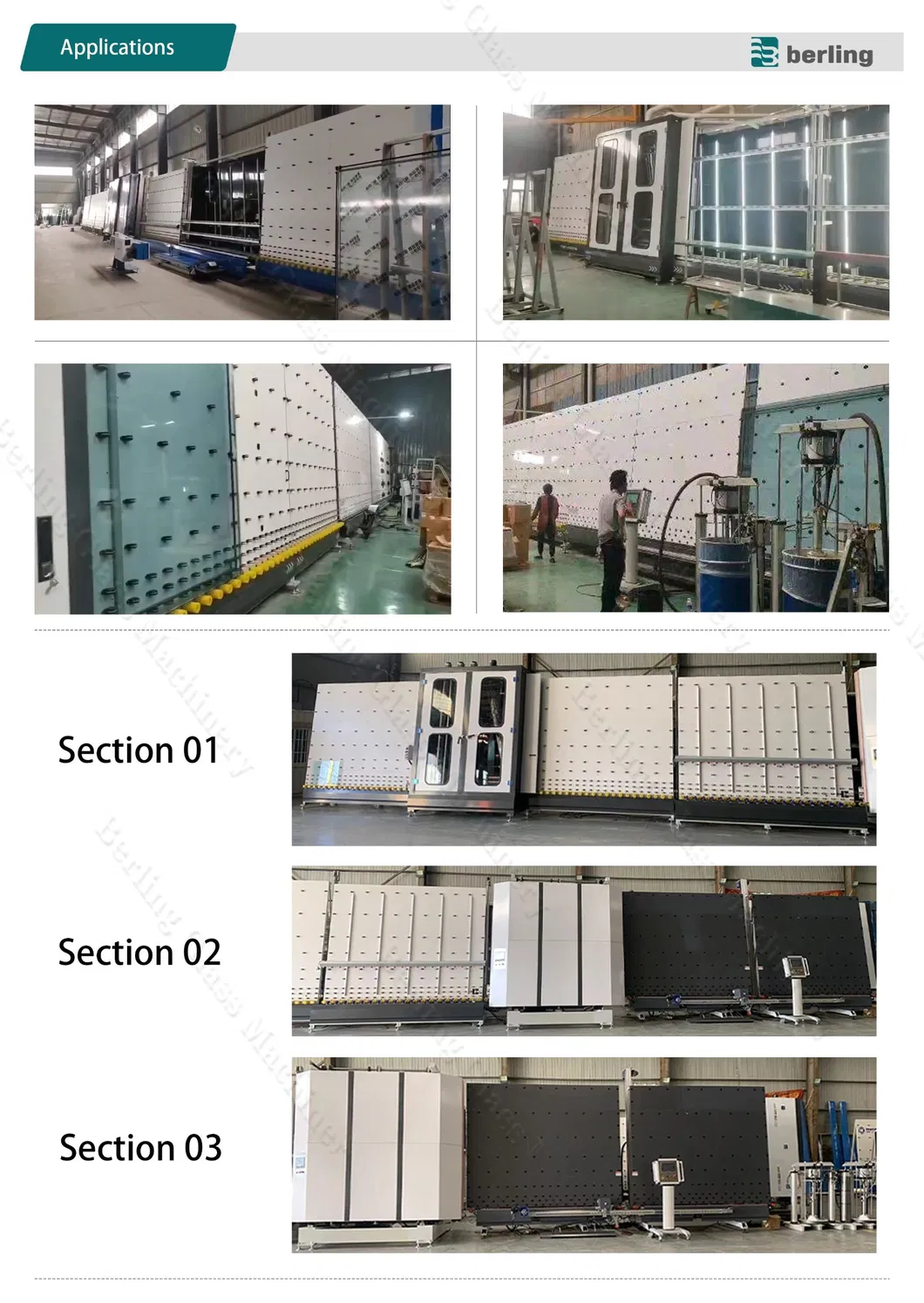

Machine Detail 2

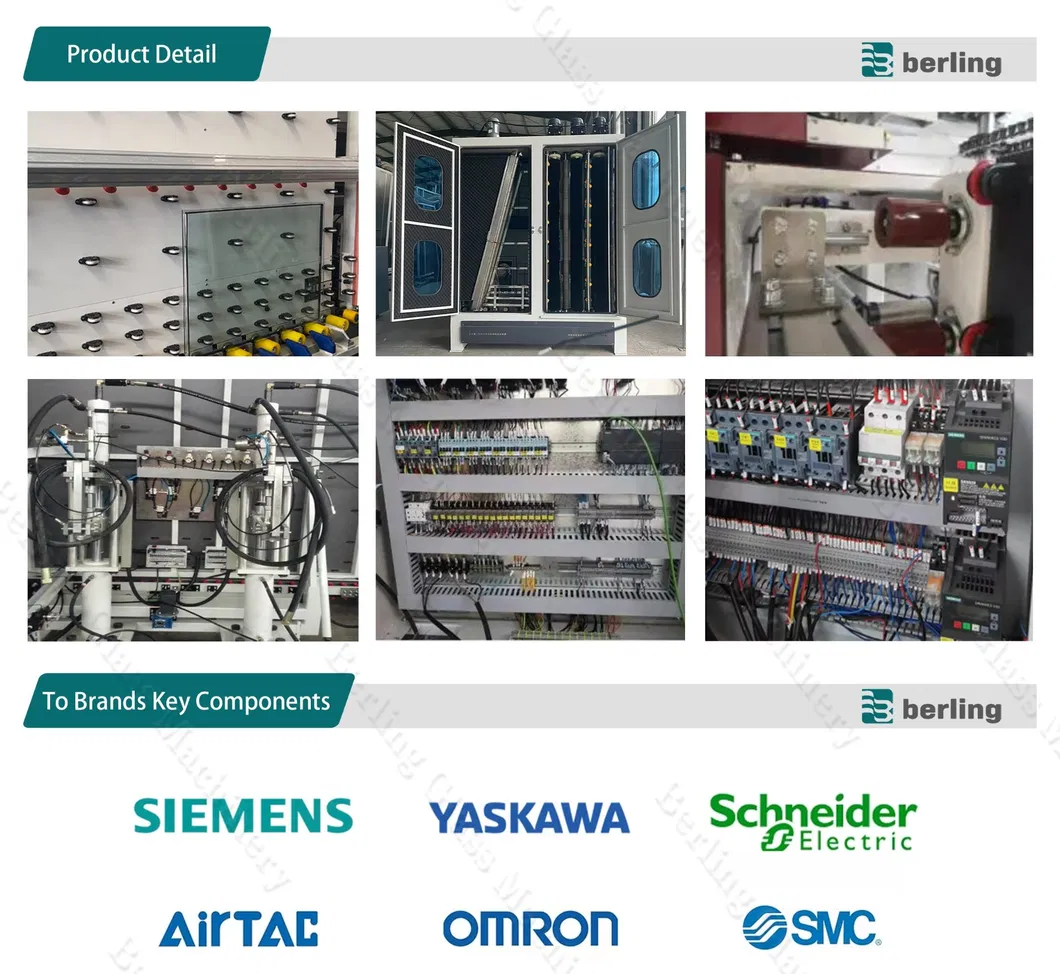

Machine Detail 3
Machine Detail 4

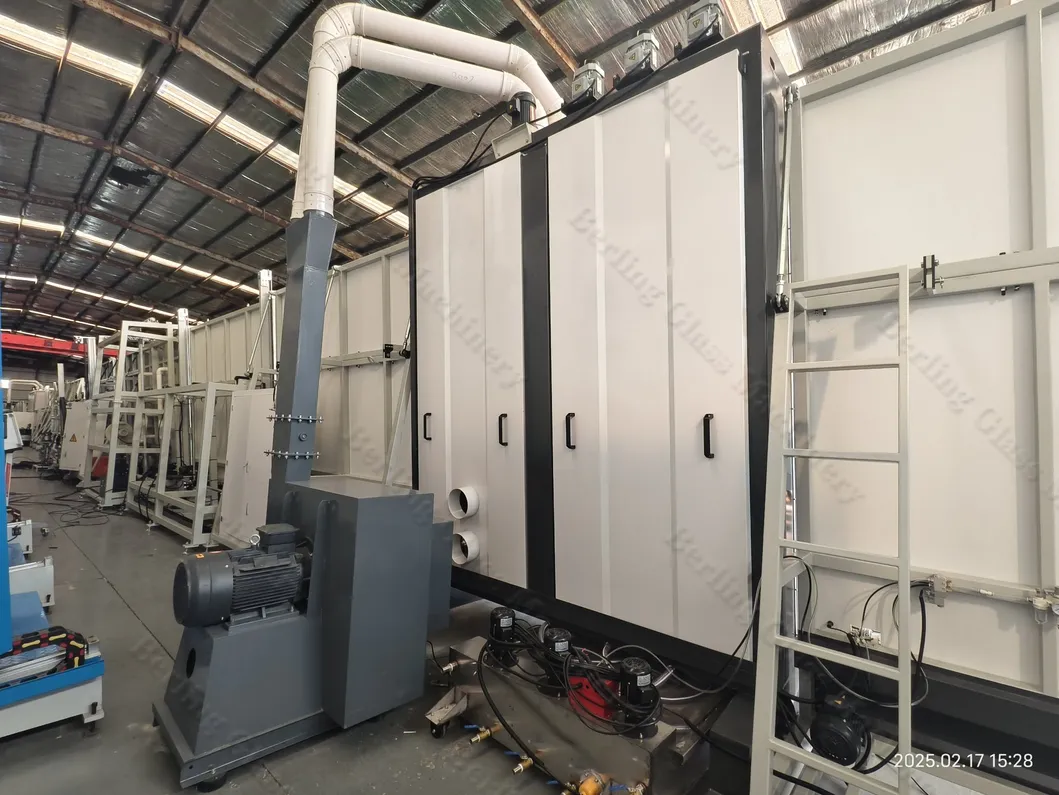

Machine Detail 5

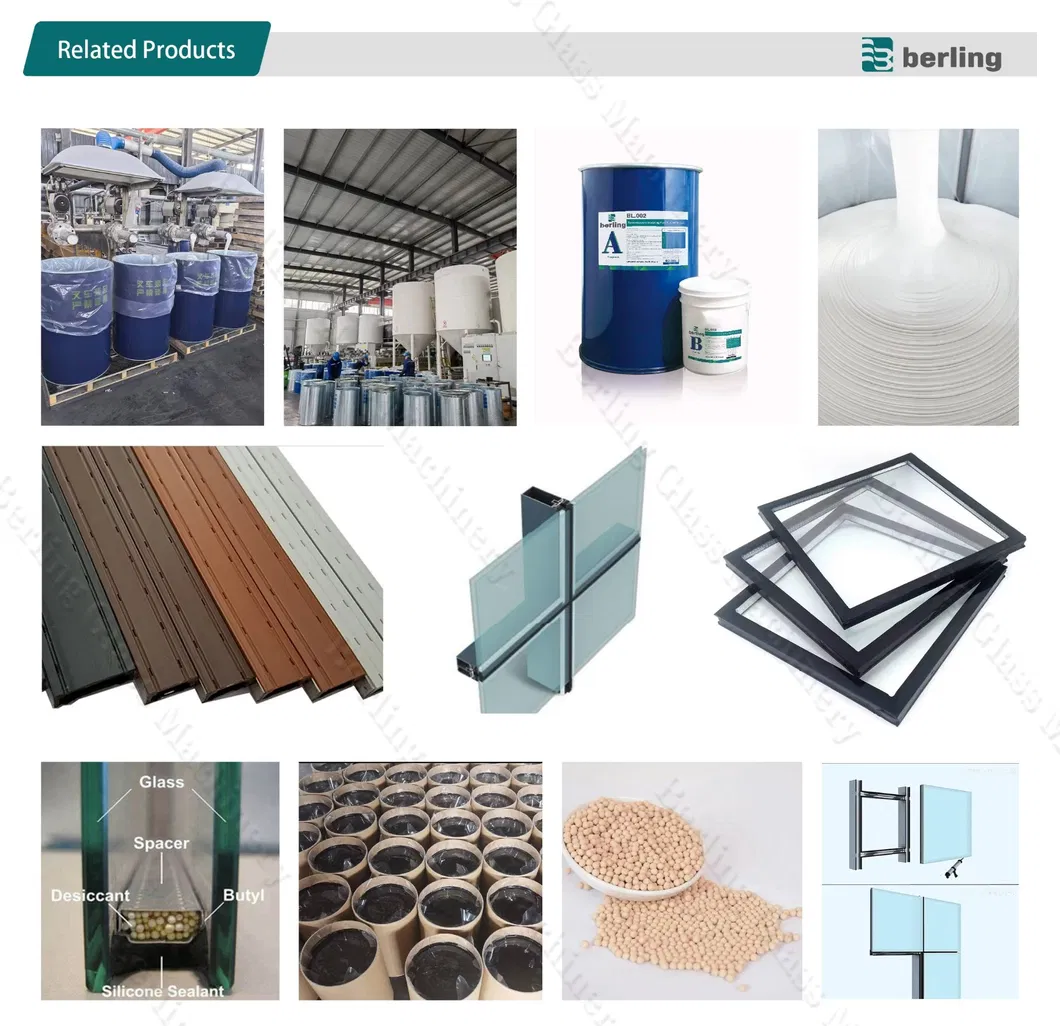

Machine Detail 6
5

Our Key Advantages

✓
PLC Control SystemUser-friendly touch screen for intuitive operation and efficient monitoring.
✓
Advanced Glass DetectionJapan-made coating detection sensors for automatic recognition of Low-E glass.
✓
Durable ConstructionWashing and drying sections built with high-quality stainless steel.
✓
Upper Drive DesignPrevents water leakage caused by aging seals in the washing section.
✓

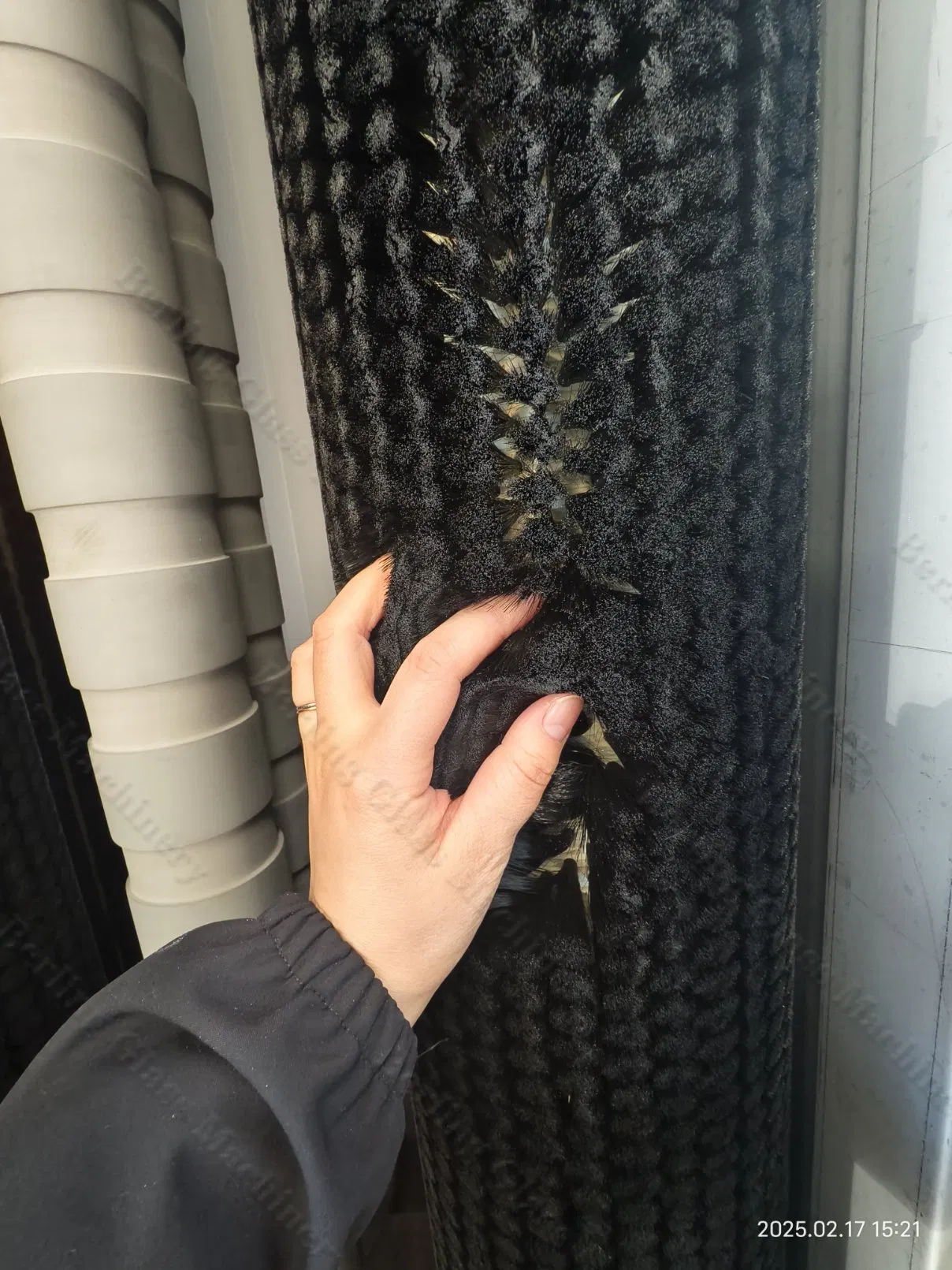

Independent Brush DriveEach brush is powered by its own motor for superior efficiency.
✓
Precise PositioningKorean-made photoelectric switches ensure accurate glass positioning.
Profile 1
Profile 2
Certifications
After Sales
?

Frequently Asked Questions

1. What types of glass can this production line process?
It is capable of producing double glazing, triple glazing, and shaped insulating glass. It also handles coated and Low-E glass with automatic detection.
2. How does the machine handle different glass thicknesses?
The system supports panel glass thicknesses from 3mm up to 12mm (depending on model) and IG unit thicknesses up to 80mm.
3. What ensures the longevity of the washing section?
The washing and drying sections are constructed using high-quality stainless steel and feature an upper drive transmission to prevent water leakage.
4. Is the machine energy efficient?
Yes, it features an automatic energy-conservation system where sections not in use automatically switch to an intelligent dormancy state.
5. What control system does the equipment use?
The entire machine uses a PLC control system with a high-definition touch screen interface for stable and easy operation.
6. Can the configuration be customized?
Yes, functions can be upgraded and customized to meet specific production requirements, including argon gas filling and different assembly modes.
