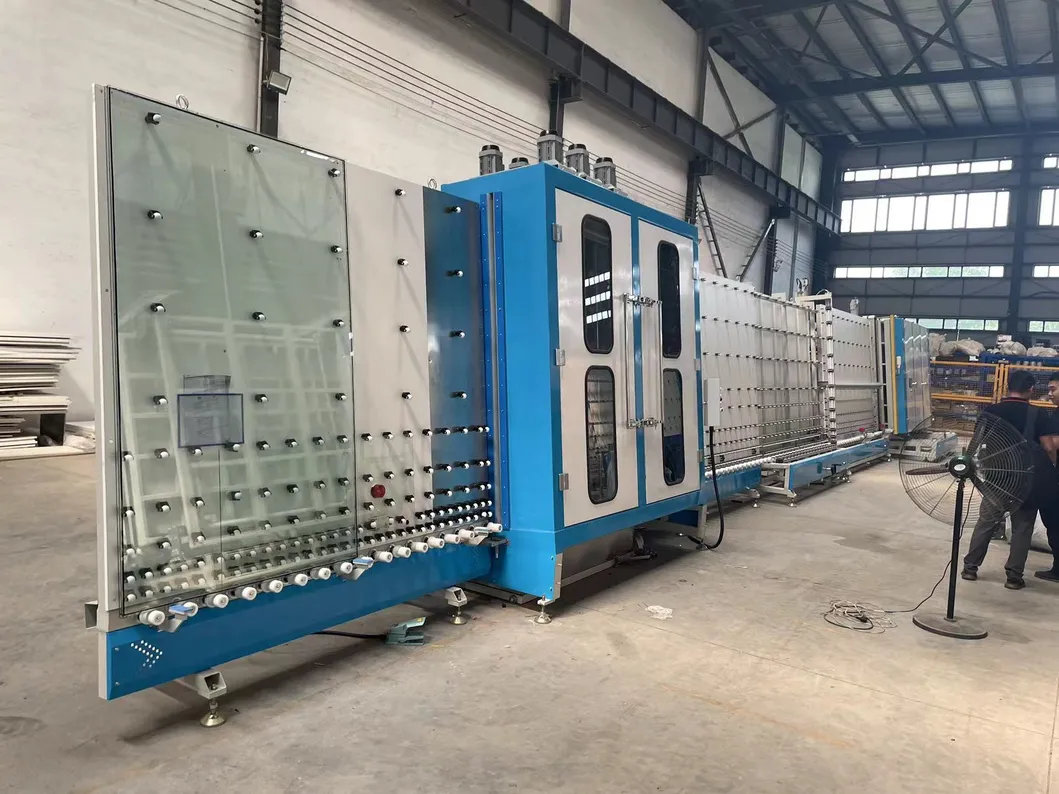

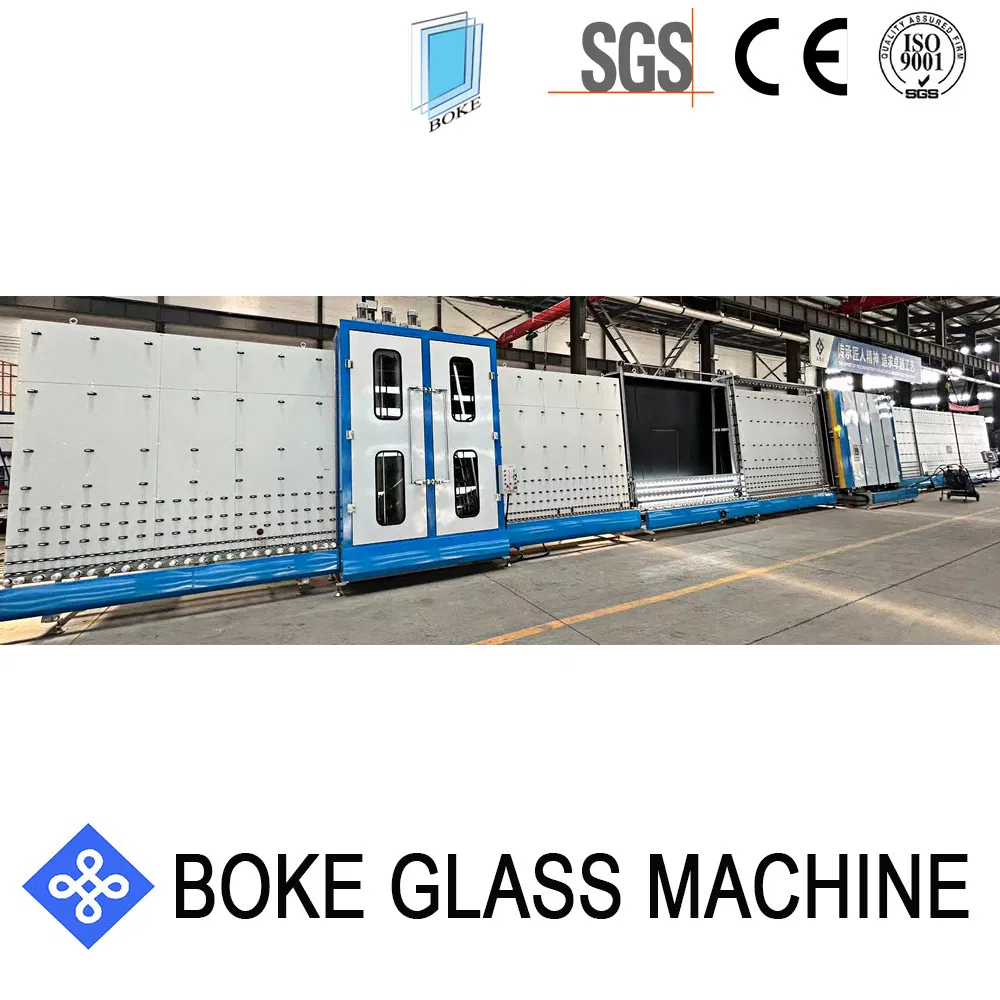

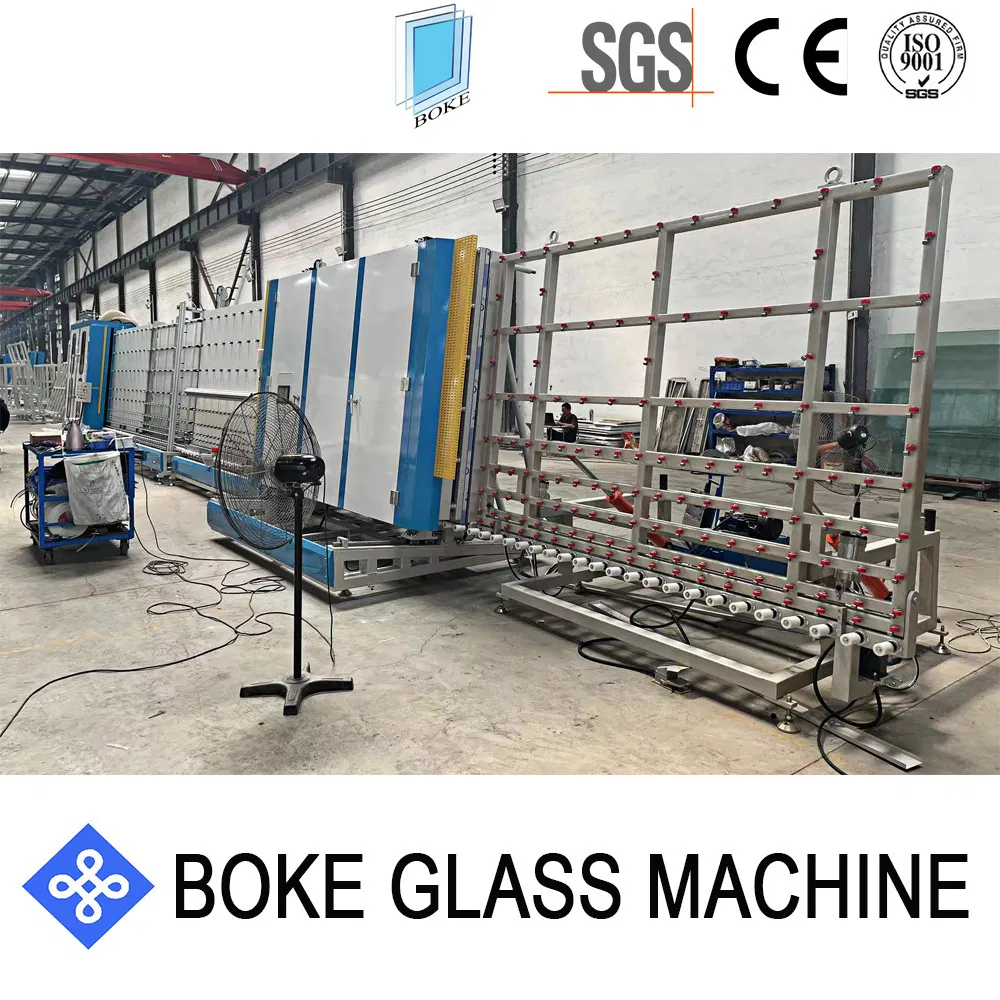

This vertical insulating glass machine is an integrated system composed of seven sections including loading, washing/drying, transmission, light inspection/spacer bar attaching, inside assembly with inert gas filling, and unloading. It is specifically designed to handle Low-E glass with high efficiency and precision.

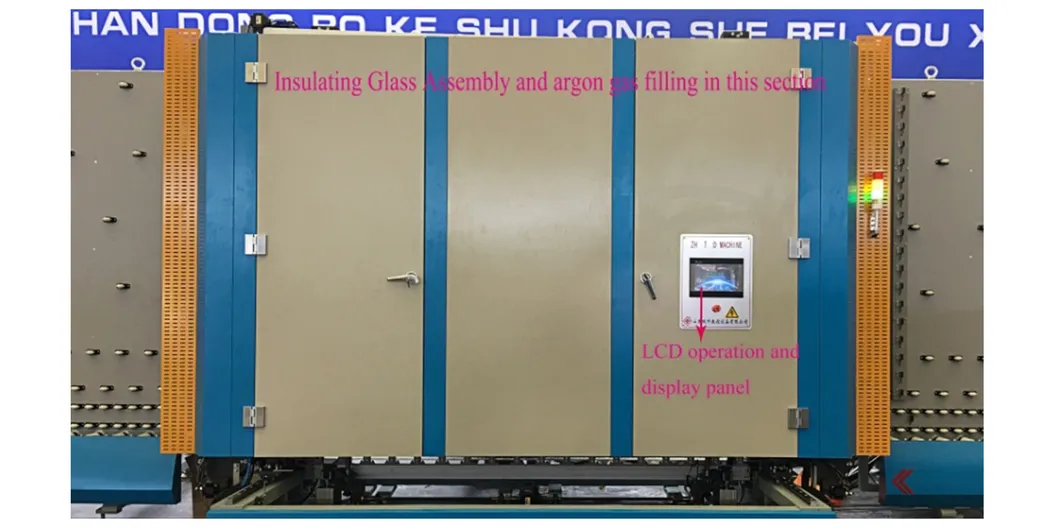

The line is managed by a high-end PLC system, enabling automatic motor speed control via frequency adjustment. Advanced assembly techniques solve common issues like uneven pressing and glass misplacement. The assembly section utilizes precision limit switches and adjustable cylinder tanks for reliable location and operation.
| Parameter | Specification Details |
|---|---|
| Model | LBP2500Q |
| Max Processing Size | 3600*2500mm |
| Min Processing Size | 450*200mm |
| Glass Thickness | 3-15mm (Single) |
| Washing Speed | 3-10m/min |
| Total Power | 44.85Kw (incl. 10Kw heater) |
| Inert Gas Type | Argon, Nitrogen, etc. |
| Gas Filling Efficiency | > 95% |
| Total Weight | 10500Kg |
| Outline Dimensions | 24600*2500*3680mm |

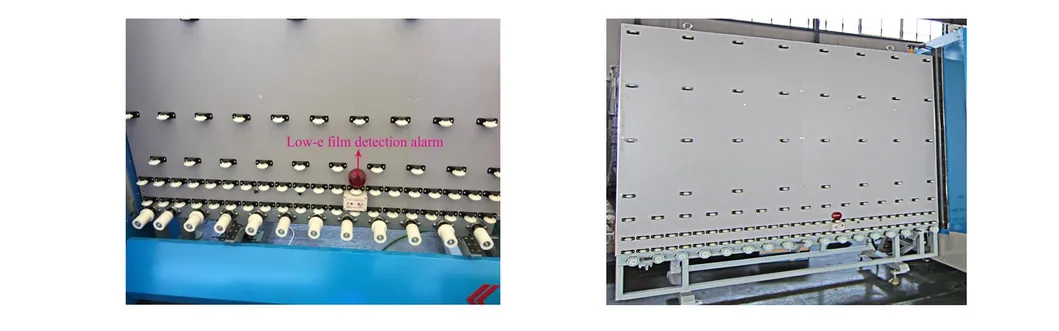

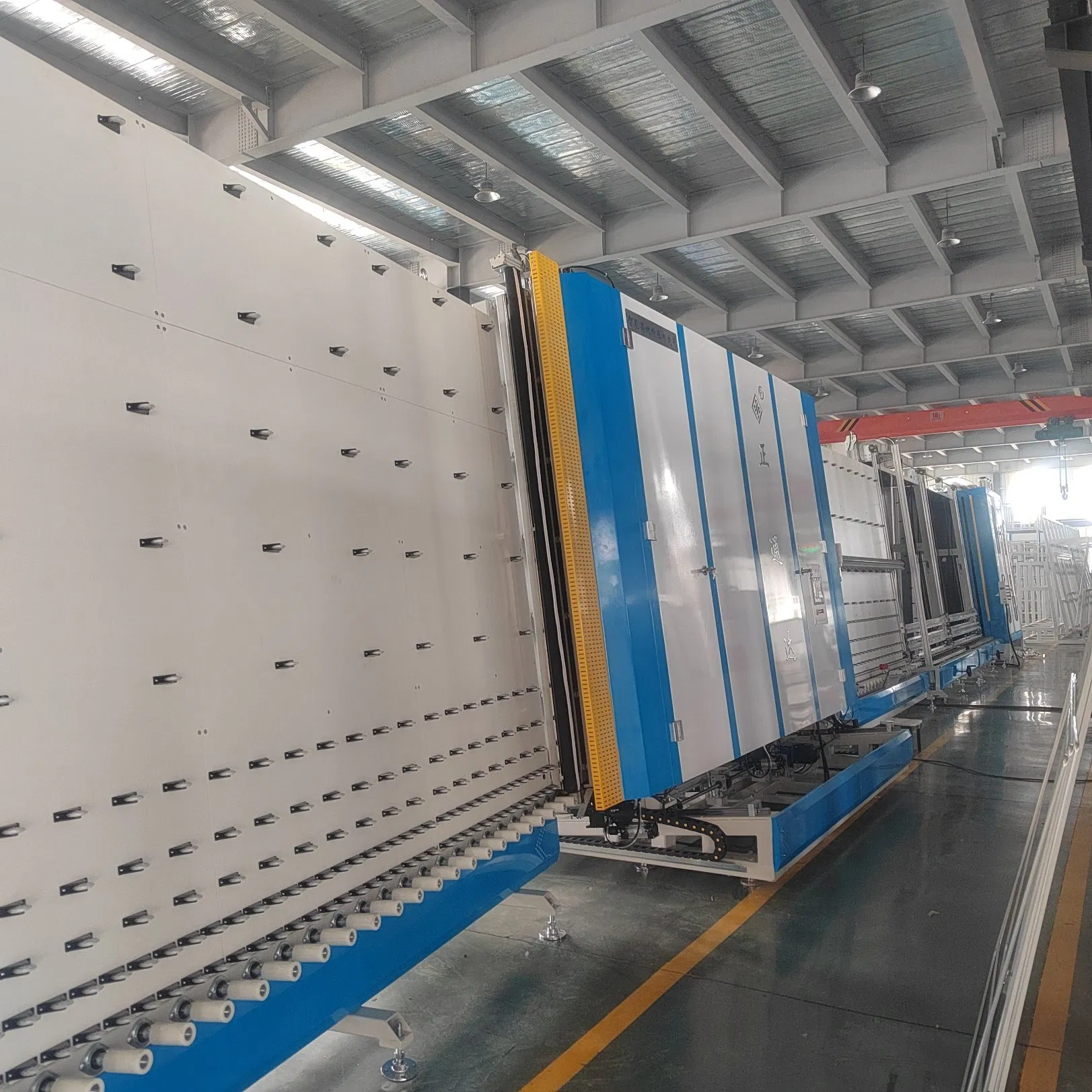

Features an automatic Low-E diagnosis system and a high-quality backboard processed through NC machining. Stable transmission speed is ensured by motor-driven chains.

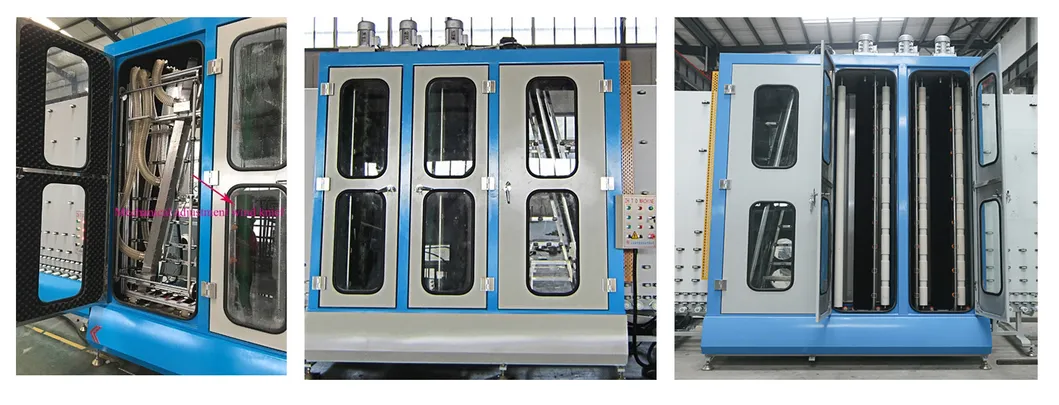

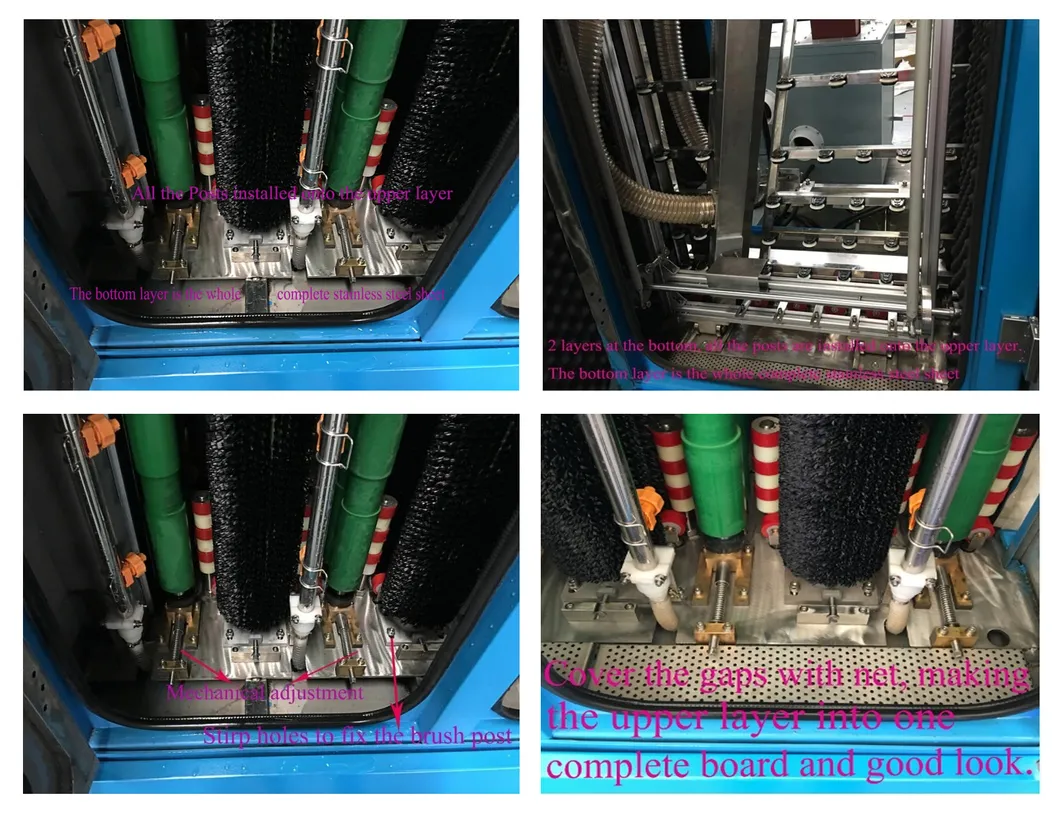

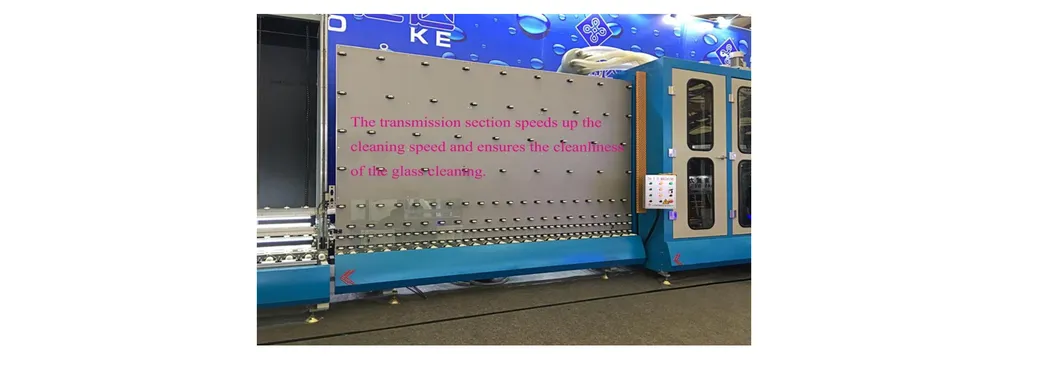

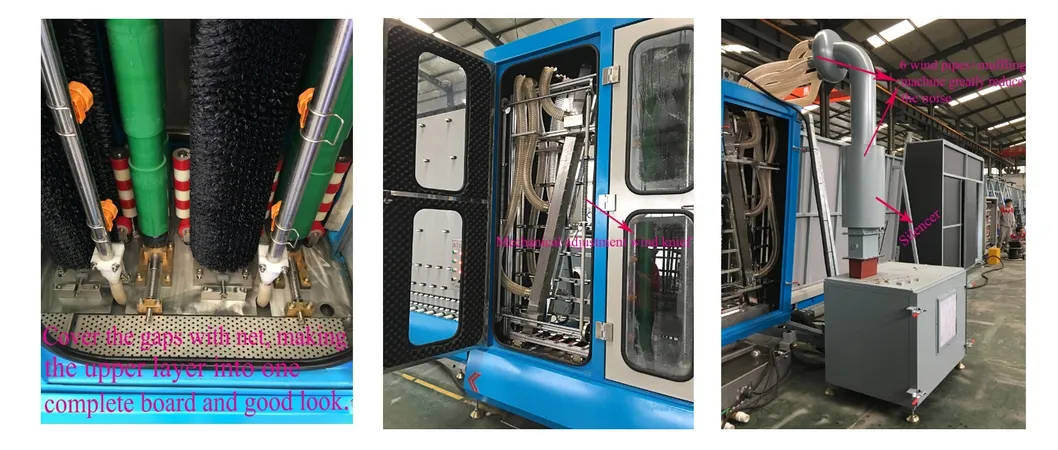

Uses three pairs of brushes and two pairs of sponge rollers. The drying part features high-pressure fans with muffle equipment to reduce noise while ensuring rapid drying.

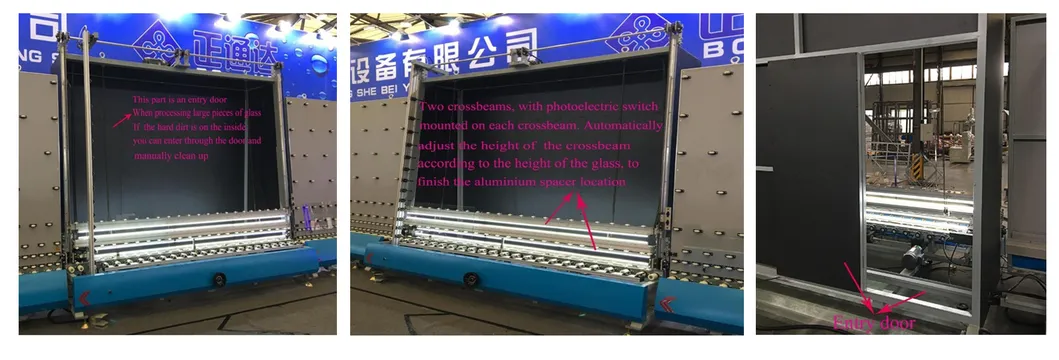

Equipped with inspection lights to verify cleaning quality. An entry design allows workers to manually remove persistent dirt from the glass surface.

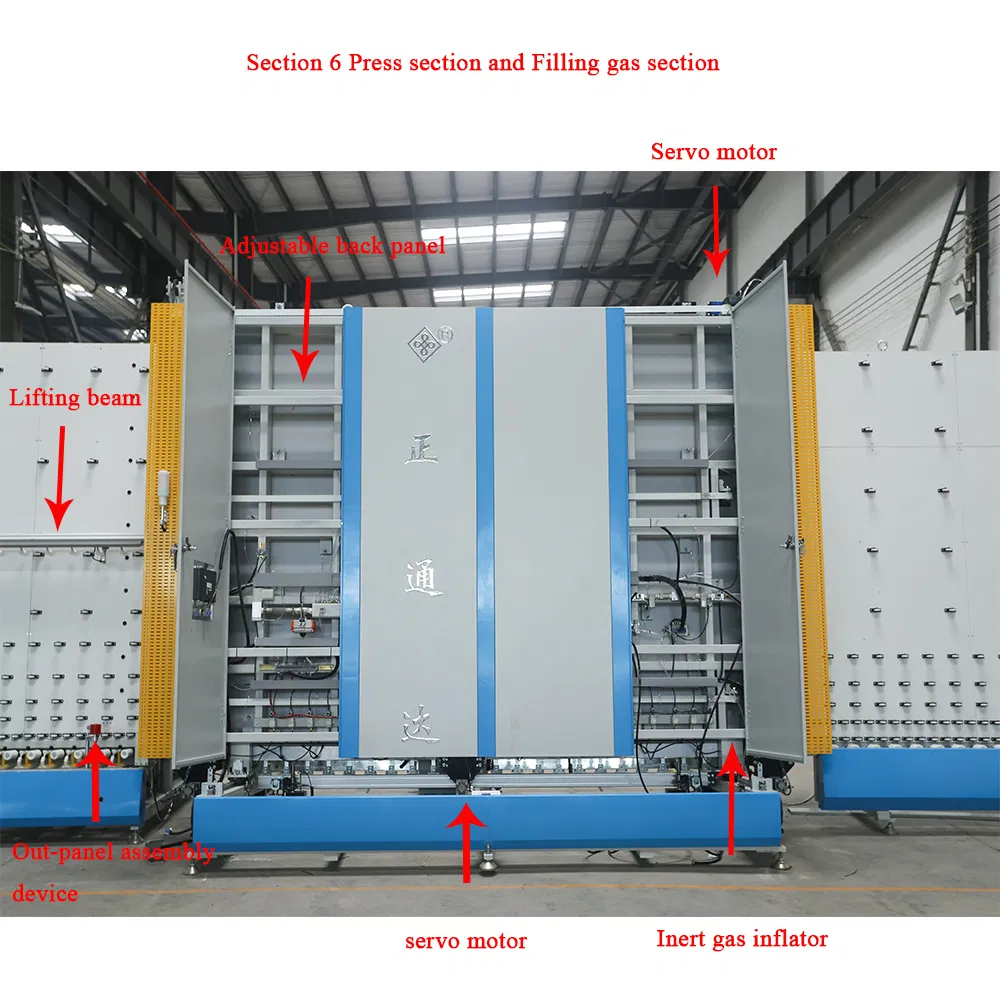

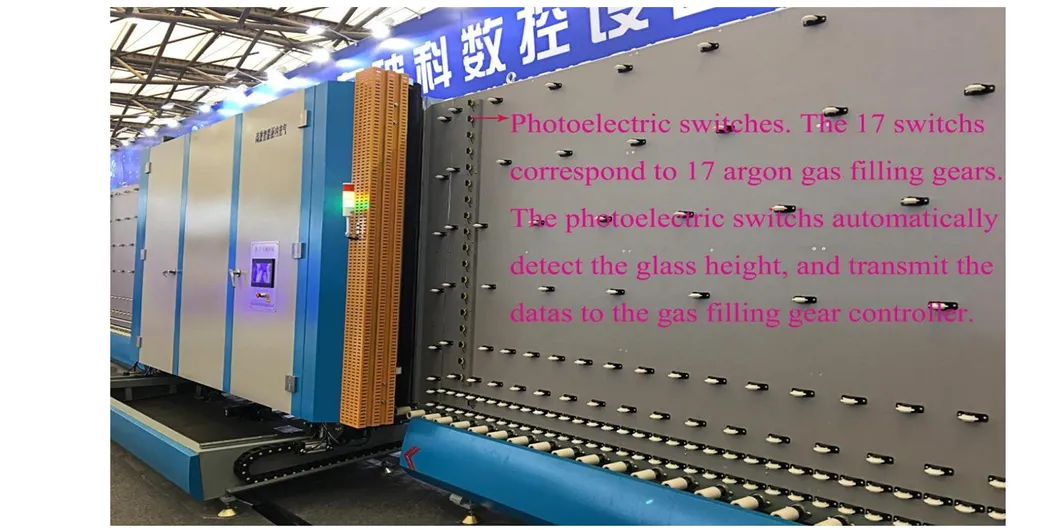

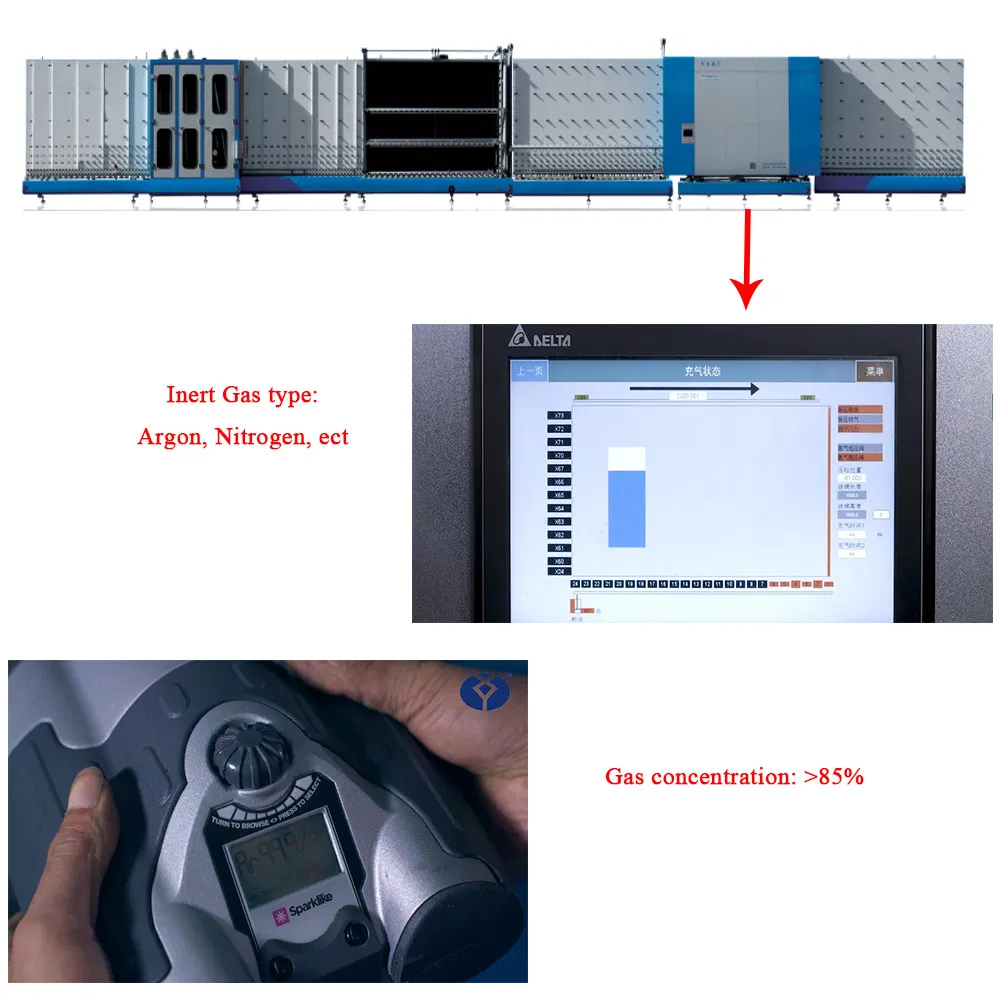

Photoelectric switches detect glass height to control 17 gas filling gears. Servo motors control the press board for precise, uniform pressure without hydraulic risks.
| Component Name | Origin | Brand |
|---|---|---|
| Photoelectric/Limit Switches | USA | BANNER |
| PLC / Transducer / Screen | Taiwan | DELTA |
| Electric Apparatus | France | SCHNEIDER |
| Bearings for Brushes | Sweden | SKF |
| Vacuum Sucker | Korea | YSC |
| Magnetic Valve | Taiwan | AIRTAC |
With over 21 years of experience in the insulating glass machinery field, we specialize in high-tech research and development. All machinery follows ISO9001 standards and carries CE certification, utilizing modern fabrication methods to ensure global market quality.
