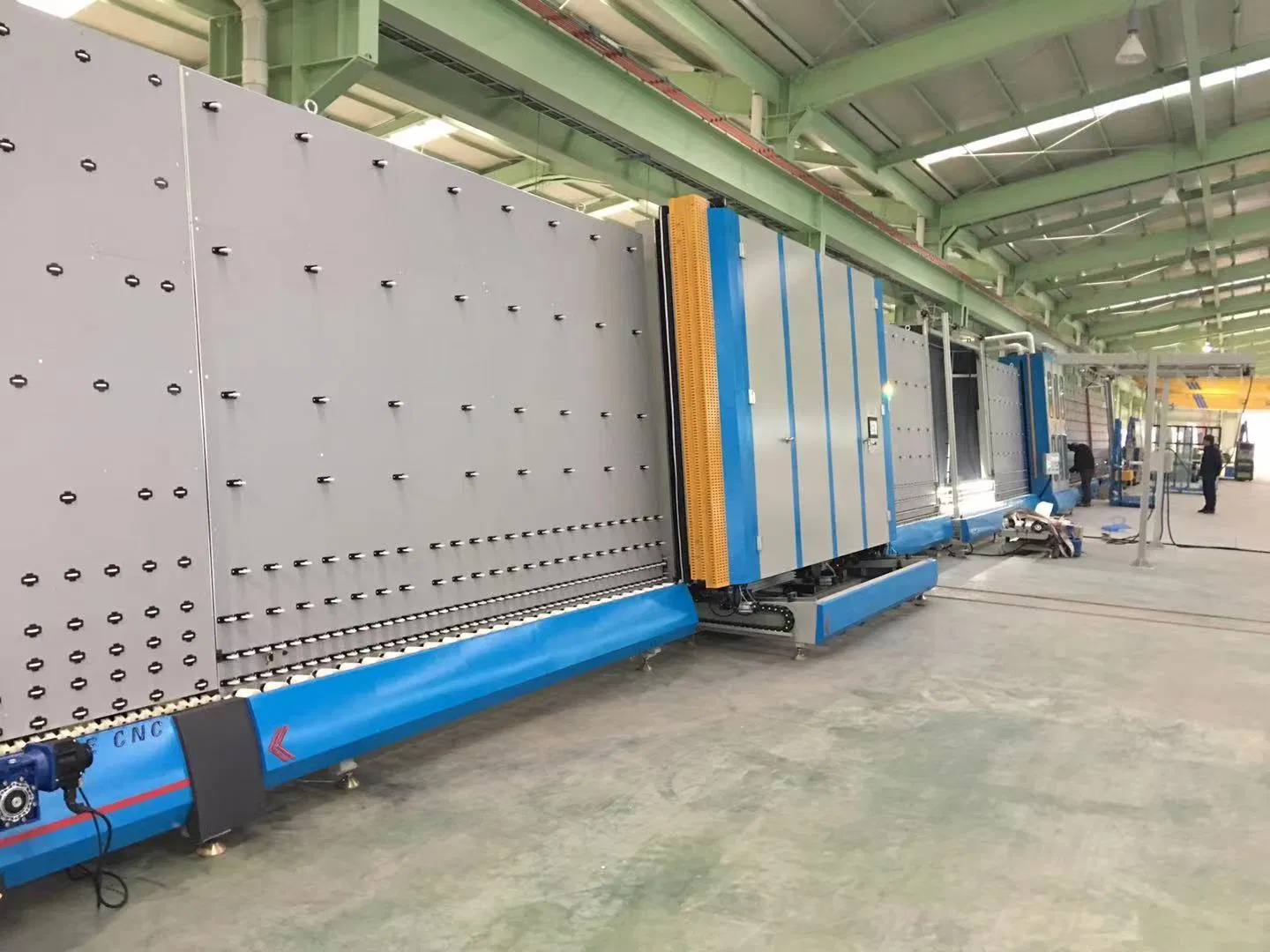

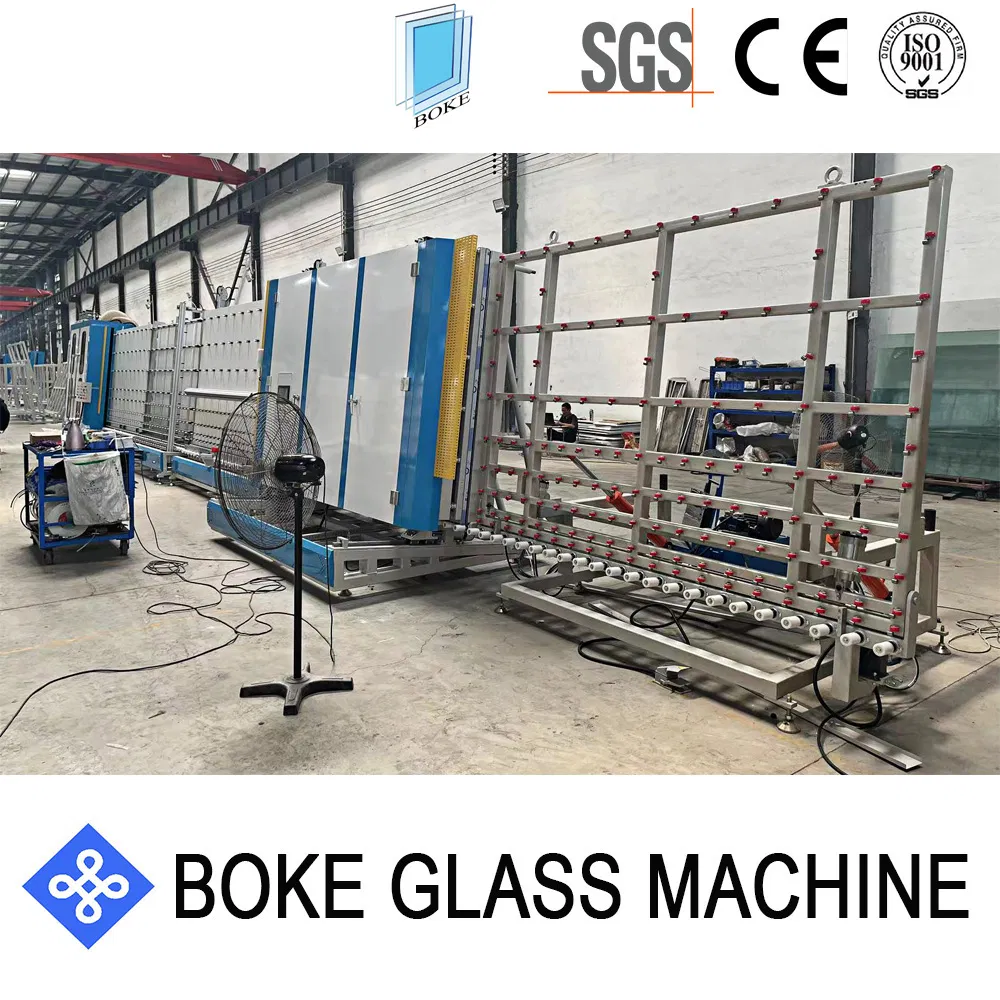

Insulating Glass Production Line for 2850mm Height 6000mm Legth Glass Giant Glass Igu Making Machine

Basic Info.

Insulating Glass Production Machine with Gas Filling on Line

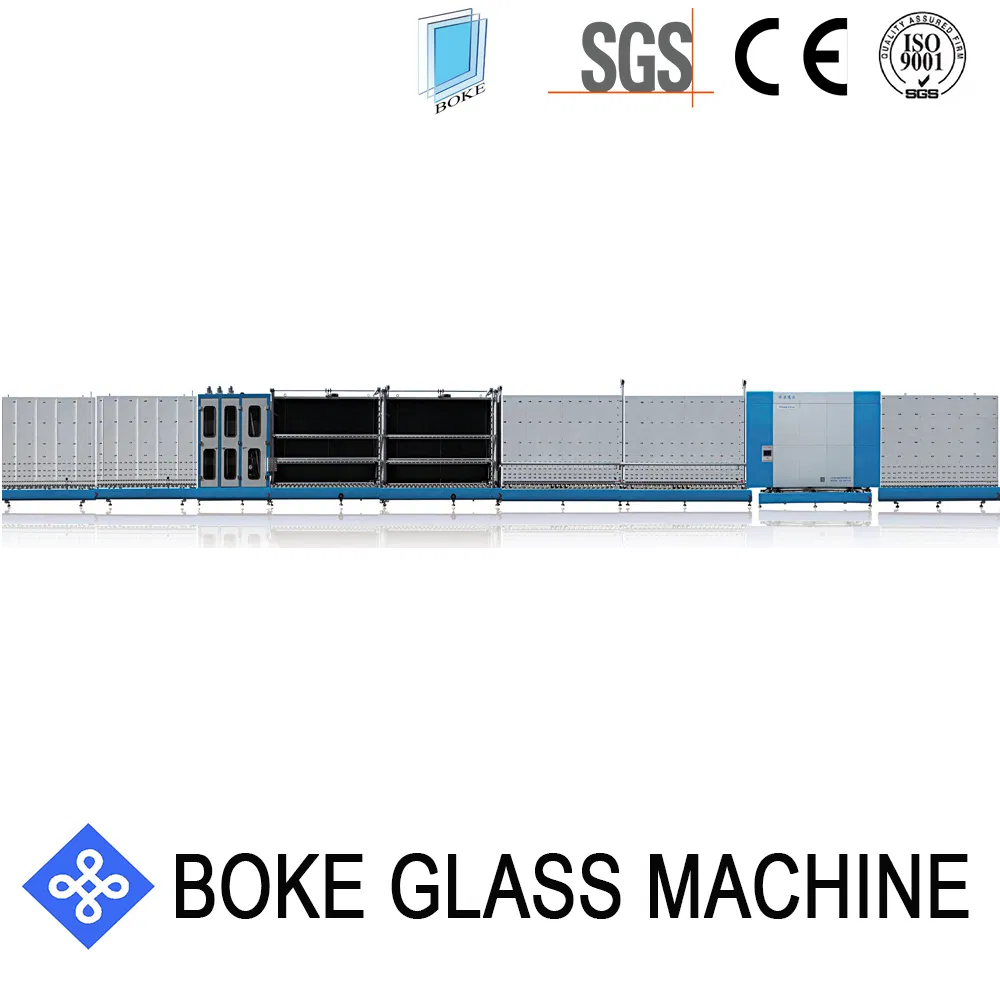

1.1 Brief introduction of insulating glass production line (Max. Size: 2850*6000mm)

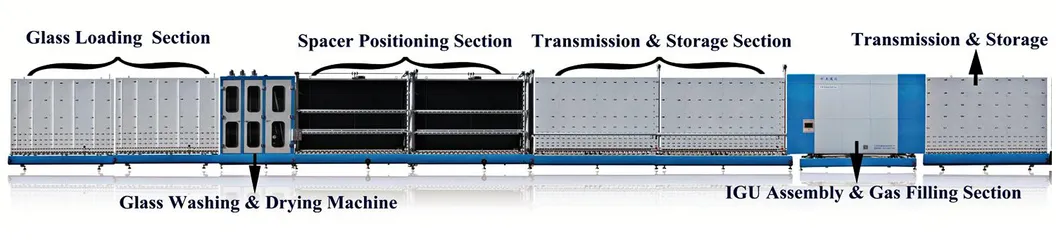

This Vertical Insulating glass machine is composed of 6 main sections: loading, washing/drying, aluminum spacer bar positioning, transmission/storage, IGU assembly/inert gas filling, and unloading section. With special design, it can wash Low-E glass effectively with high speed.

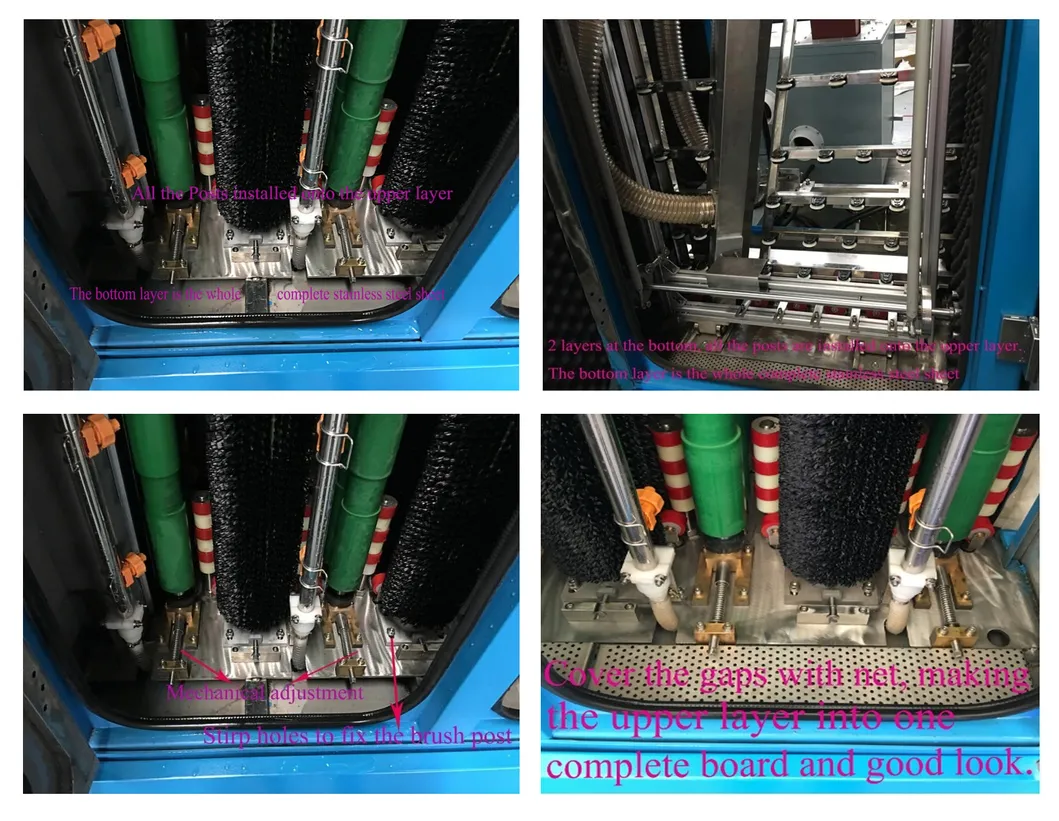

• Three pair of DuPont brushes (USA) for high-quality Low-E glass washing.
• Automatically distinguish the coating side of coated glass and Low-E glass.
• Adopt waterproof SKF bearings (Sweden) without oil lubricant.
• Washing body adopts stainless steel and anti-rusting materials.
• PLC and electric elements from Schneider (France).
• Inert gas filling efficiency is more than 95%.

Performance Characteristics

Technical Data and Specification

Section 1: Glass Loading Section

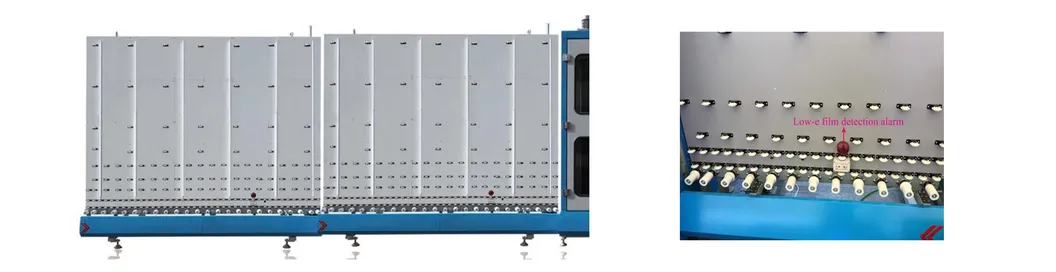

Features a Low-E glass automatic diagnosis system. The back board is high-quality Aosong board processed through NC machining. Transmission speed is stable and controlled by inverter.

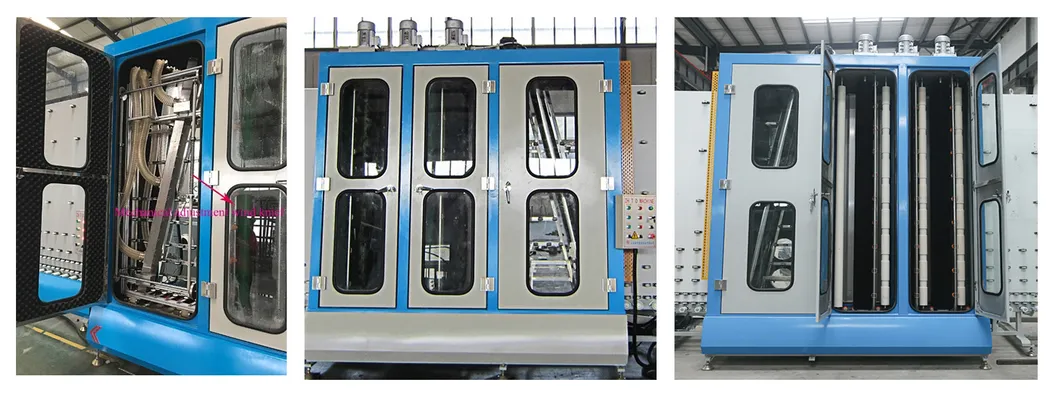

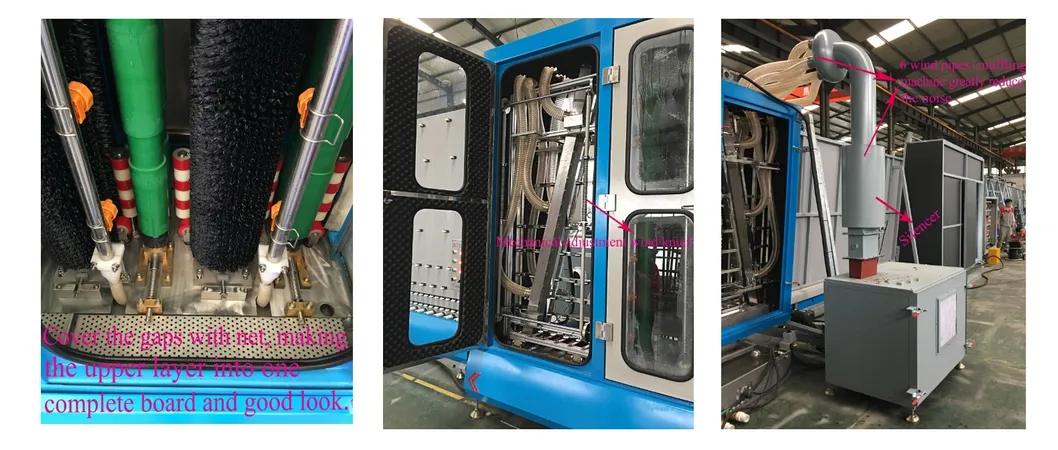

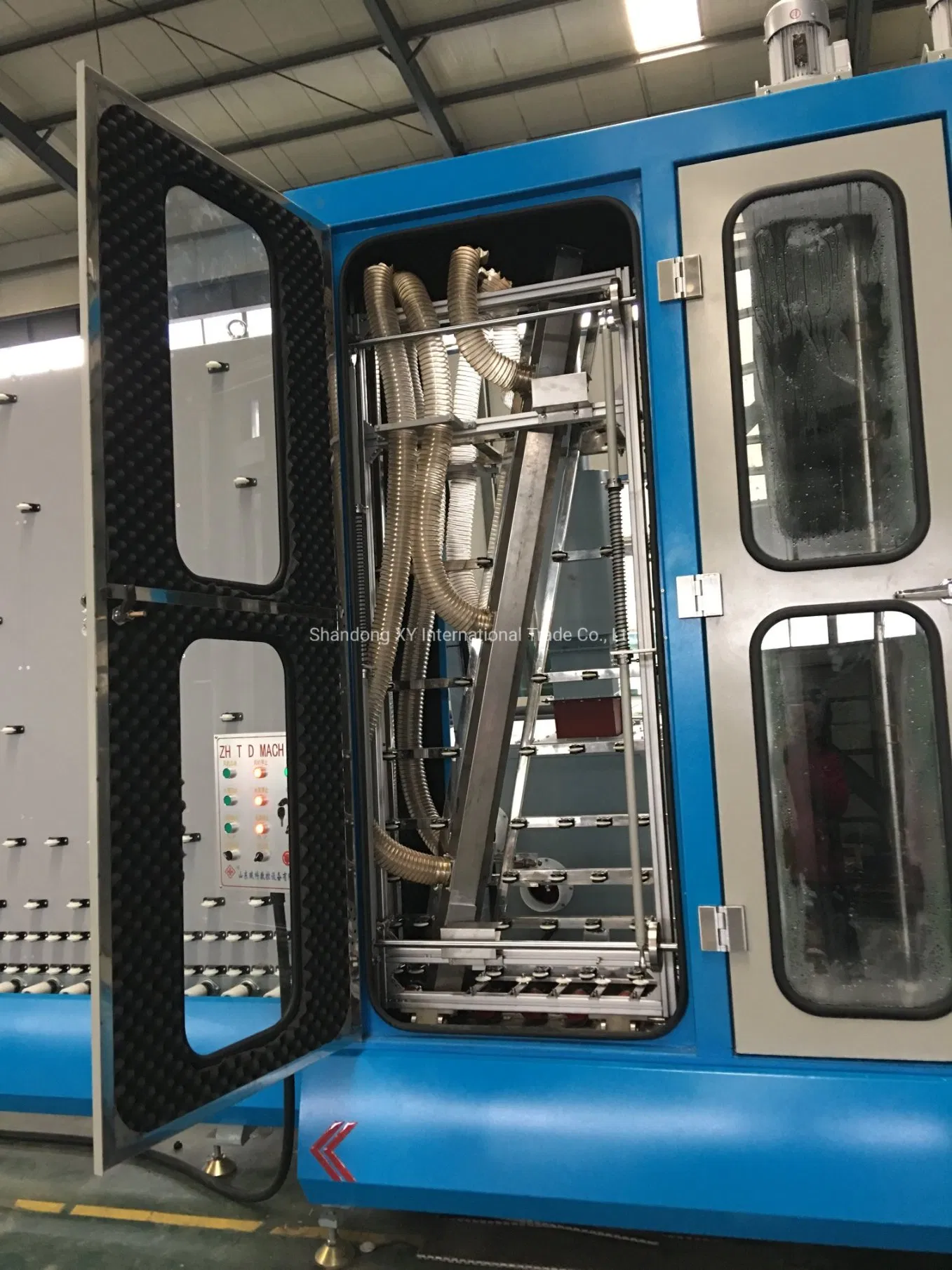

Section 2: Glass Washing and Drying Machine

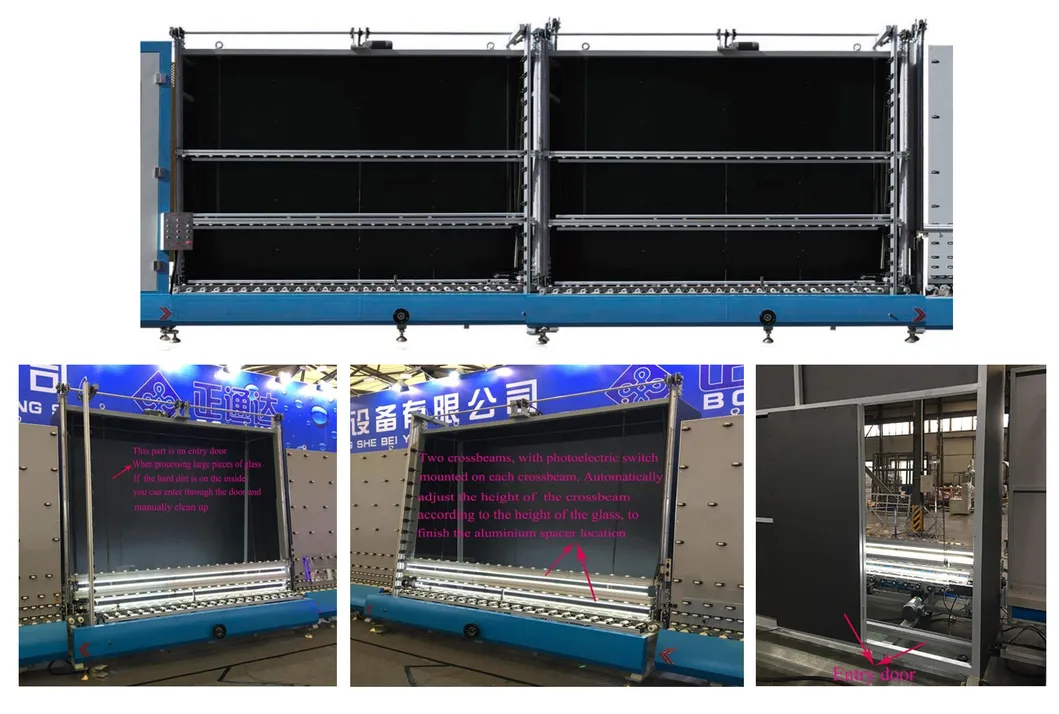

Section 3: Aluminum Spacer Bar Positioning

Used to inspect washing quality. Includes an entry design allowing workers to manually clean any hard dirt on the glass surface. Energy-saving design allows brush and pump to stop when glass is at the end of the section.

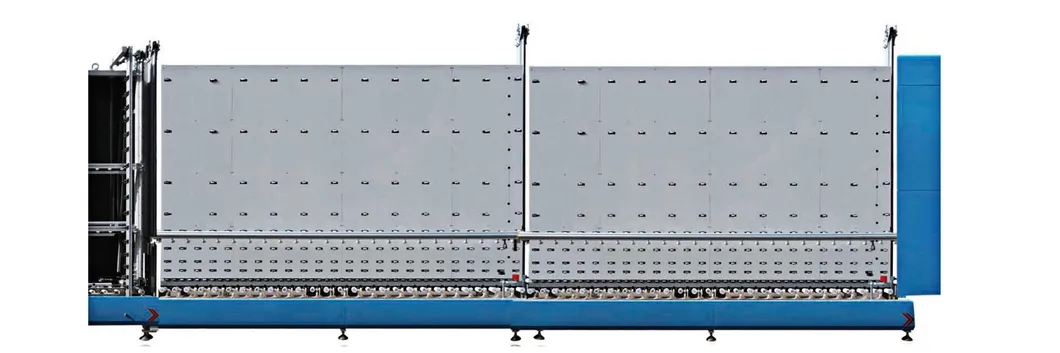

Section 4: Transmission and Assembly Section

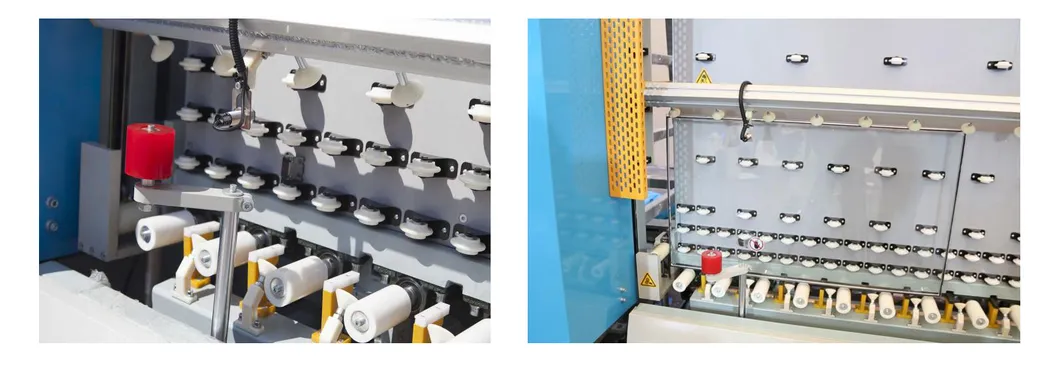

Red wheels controlled by Airtac cylinders push glass tightly. Sensors detect precise glass positioning for automatic assembly via manipulator.

Section 5: IGU Assembly and Inert Gas Filling Section

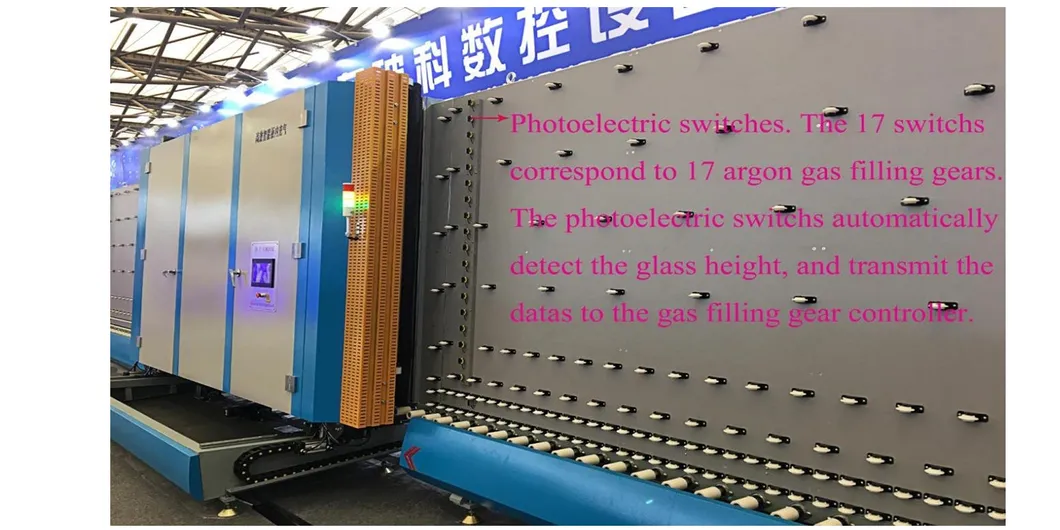

Equipped with 17/18 photoelectric switches to detect glass height and control 17 gas filling gears. Press board is controlled by a servo motor and roller shaft screw for smooth, uniform pressure.

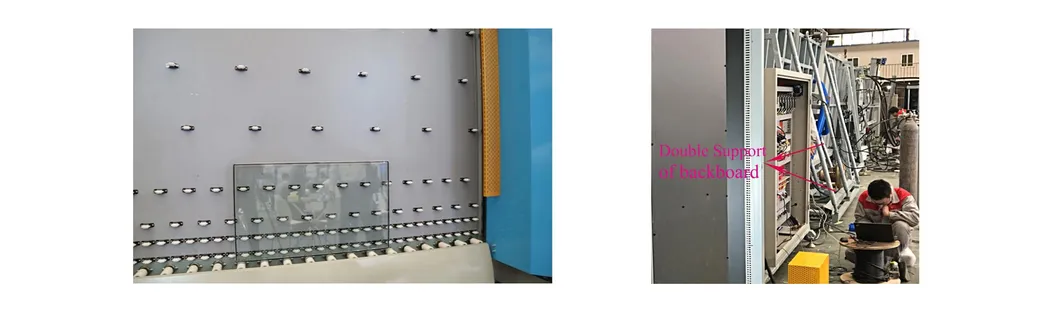

Section 6: Transition and Storage Section

Imported Components

Experience & Quality Assurance

With over 21 years of experience in the field of insulating glass production, we integrate advanced scientific research and fabrication methods. Our production line is ISO9001 certified and our machines have attained the CE Certificate, standing for high-tech and reliability in the global market.
